    • AFS401/90GM - Vinkelflange 1/2" SAE6000 x 1/2" BSP - komplet

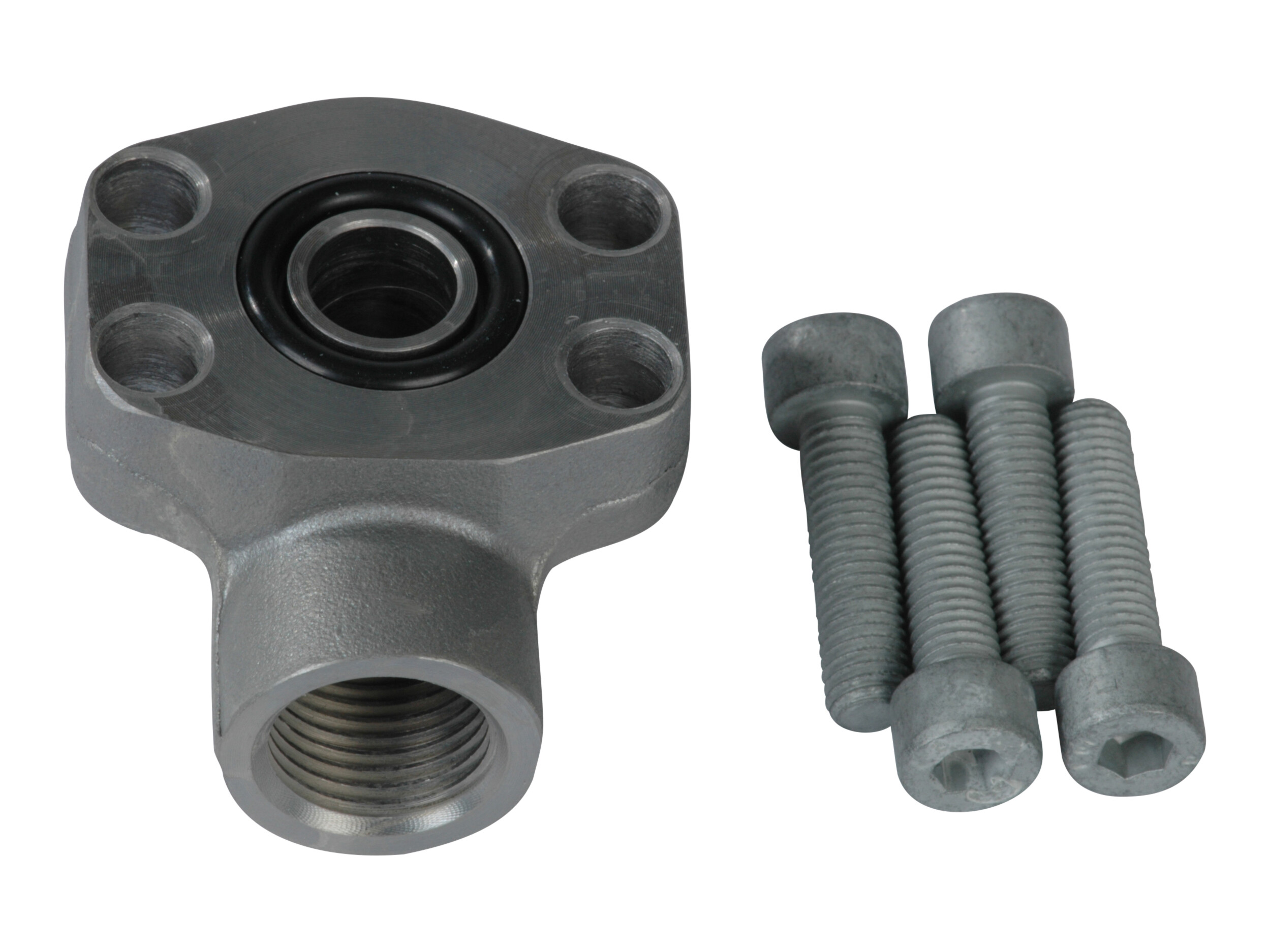

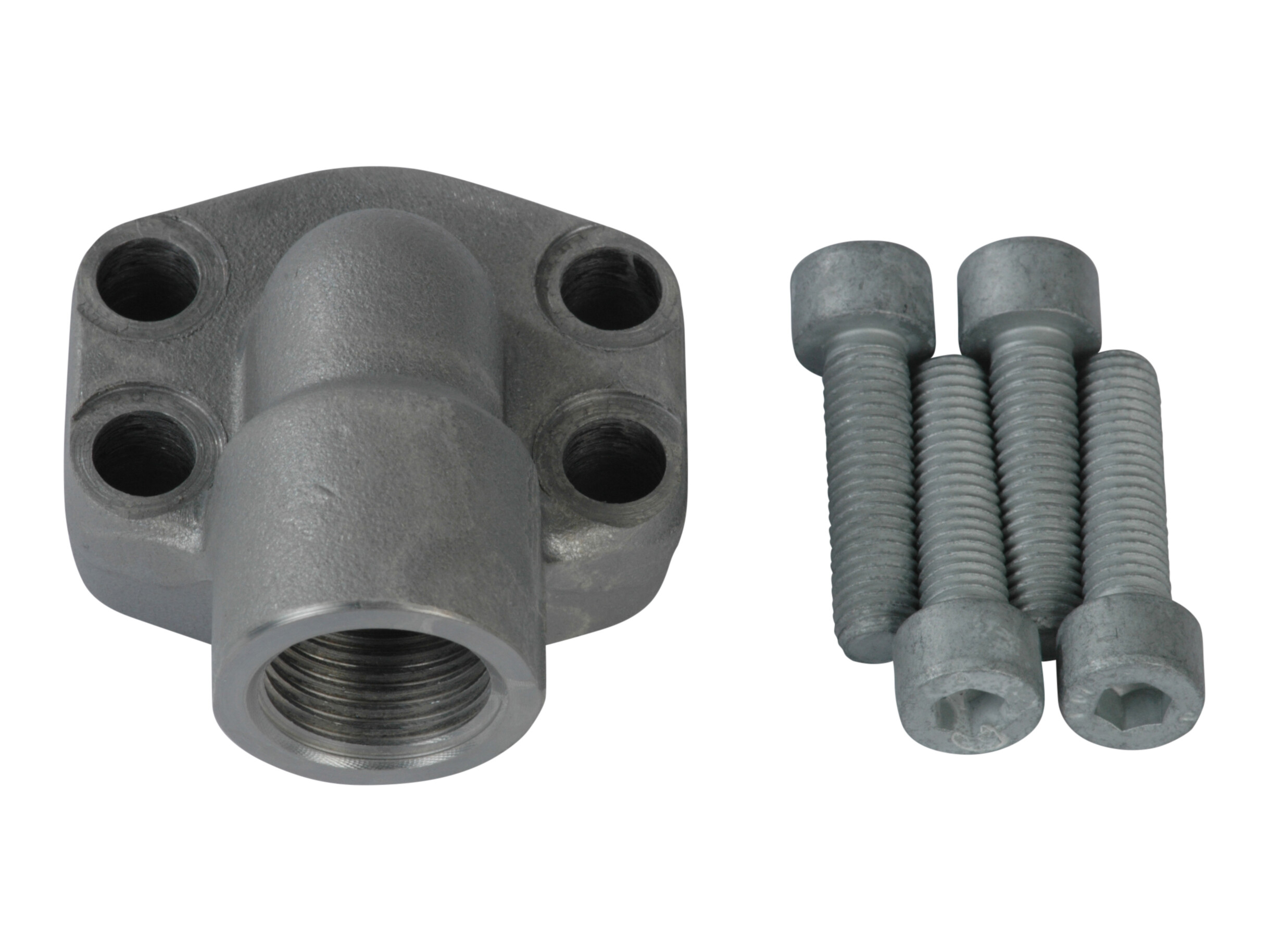

    AFS401/90GM - Vinkelflange 1/2" SAE6000 x 1/2" BSP - komplet

    Vinkelflange 1/2" SAE6000 x 1/2" BSP - komplet

    Artikelnummer:
    AFS401/90GM
    Förpackningsstorlek:
    0 pcs
    Minsta beställningskvantitet:
    1 pcs
    O-ring 90S
    Partnumber: 18.64X3.53S
    Bolts (4) for SAE flanges - 10.9 ZiNi - UNC 5/16" x 1.1/4"
    Partnumber: UNC516-114ZN
    Angle
    90 °
    Bolt dimension
    M8x30 mm
    Brand Name
    Havit
    Corrosion resistance
    480 hours salt spray DIN EN 9227
    Diameter flange
    31.8 mm
    Dimension C
    40.5 mm
    Dimension E
    18.2 mm
    Flange
    1/2 "
    Flange SAE/DIN
    6000 PSI
    Material
    Stål
    Number of bolts
    4
    O-ring
    18.64X3.53 mm
    Pressure max.
    420 bar
    Sealing material
    NBR
    Shore
    90
    Standard ISO
    ISO 6162-2
    Standard SAE
    SAE J518 Code 62
    Surface treatment
    Zink-Nikkel belagt
    Temperature max.
    +90 °C
    Temperature min.
    -40 °C
    Thread inner
    G 1/2 BSP
    Package size
    0 pcs
    Barcode
    5704295921402
    Gross weight
    0,28 Kg
    Net weight
    0,28 Kg
    Country of origin
    DEU
    Intrastat code
    73079100

    Vinkelflange 1/2" SAE6000 x 1/2" BSP - komplet

    Tekniske data
