A08RSX - Indskruning - ø8S x 1/4" BSP

Indskruning - ø8S x 1/4" BSP

Partnumber:

A08RSX

Package size:

0 pcs

Min. order quantity is:

1 pcs

If you order this item, then FXGE08SR14 will be ordered instead.

Tilbehør (2)
Alternativer (1)

DS08L - Dobbelt skærering - ø8L

Partnumber: DS08L

M08S - Omløber - ø8S - M16x1.5

Partnumber: M08S

FXGE08SR14WD - Indskruning - ø8S x 1/4" BSP - WD pakning

Partnumber: FXGE08SR14WD

Specifications
Dimensions and shipping

Diameter rør

8 mm

Dimension i

12 mm

G 1/4 BSP

Gevind udvendig

G 1/4 BSP

Gevind udvendig metrisk

M16x1,5

Korrosions resistens

1200 hours salt spray DIN EN ISO 9227

30 mm

Materiale

Stål

Model kode

XA8RSZN

Mærke navn

Gates Tube Fittings GmbH

Overfladebehandling

Zink-Nikkel belagt

REACH compliant

RoHs compliant

19 mm

Serie

Sikkerhedsfaktor

Temperatur maks.

+120 °C

Temperatur min.

-40 °C

Tryk maks.

630 bar

Vinkel

0 °

18 mm

12 mm

15 mm

Package size

0 pcs

Barcode

5704295763385

Gross weight

0,04 Kg

Net weight

0,04 Kg

Country of origin

DEU

Intrastat code

73071110

Product information

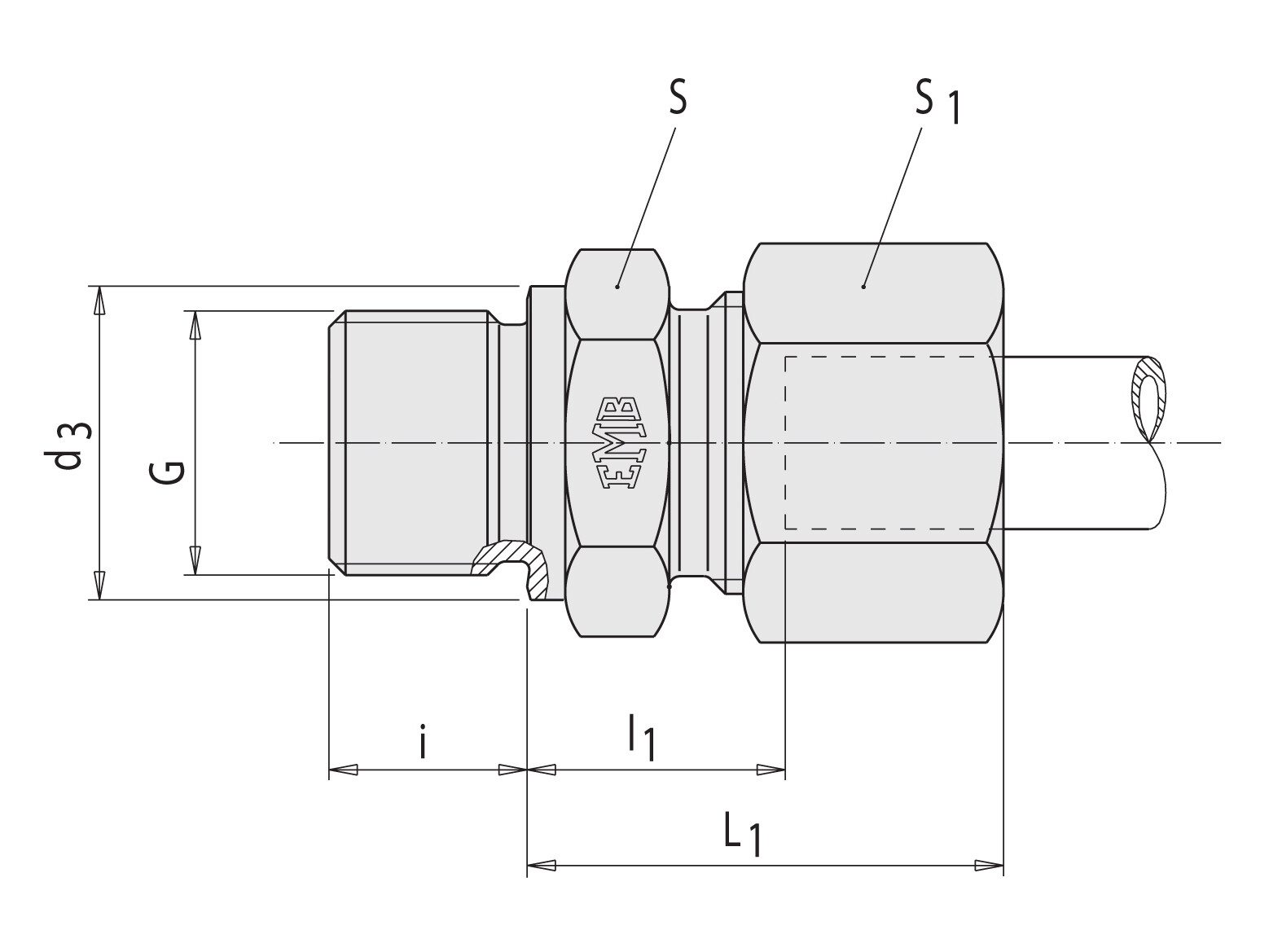

Measure sketch

Indskruning - ø8S x 1/4" BSP
