Stud fitting - ø10S indv x 1/4" BSP - o-ring seal
Stud fitting - ø10S indv x 1/4" BSP - o-ring seal
Partnumber:
FEGED10SR14WD
Package size:
1 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
10 mm

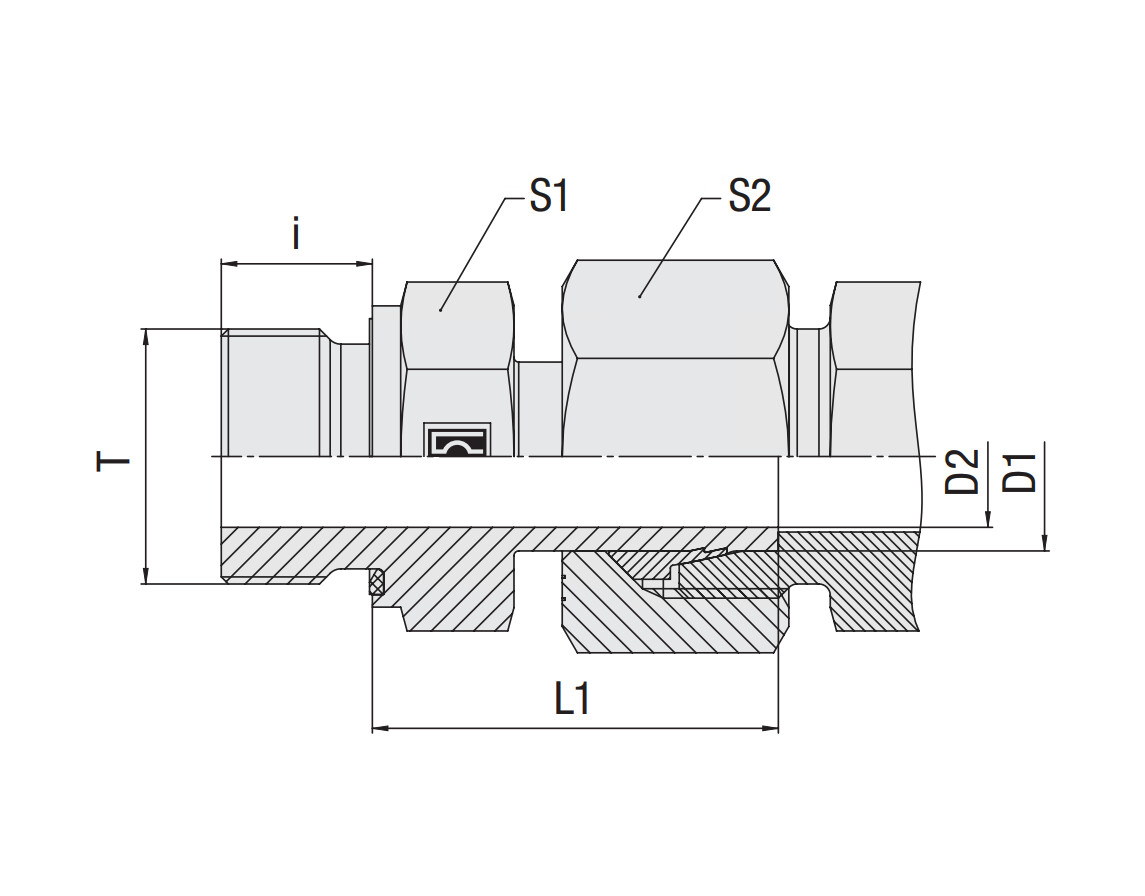

Dimension D1
10 mm
Dimension D2
6 mm
Dimension L1
29.5 mm
Dimension S1
19 mm
Dimension S2
22 mm
Dimension T
G 1/4 BSP
Dimension i
12 mm
Material
Steel
Model code
VAD10SR14WZN
Pressure max.
800 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Sealing material
NBR
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T
G 1/4 BSP
Thread inner metric
M18x1,5
Thread outer
G 1/4 BSP
Torque tightening
55 Nm
Förpackningsstorlek
1 pcs
Streckkod
5704334928034
Bruttovikt
0,08 Kg
Nettovikt
0,08 Kg
Ursprungsland
DEU
Intrastat artikelkod
73071110
Stud fitting - ø10S indv x 1/4" BSP - o-ring seal
