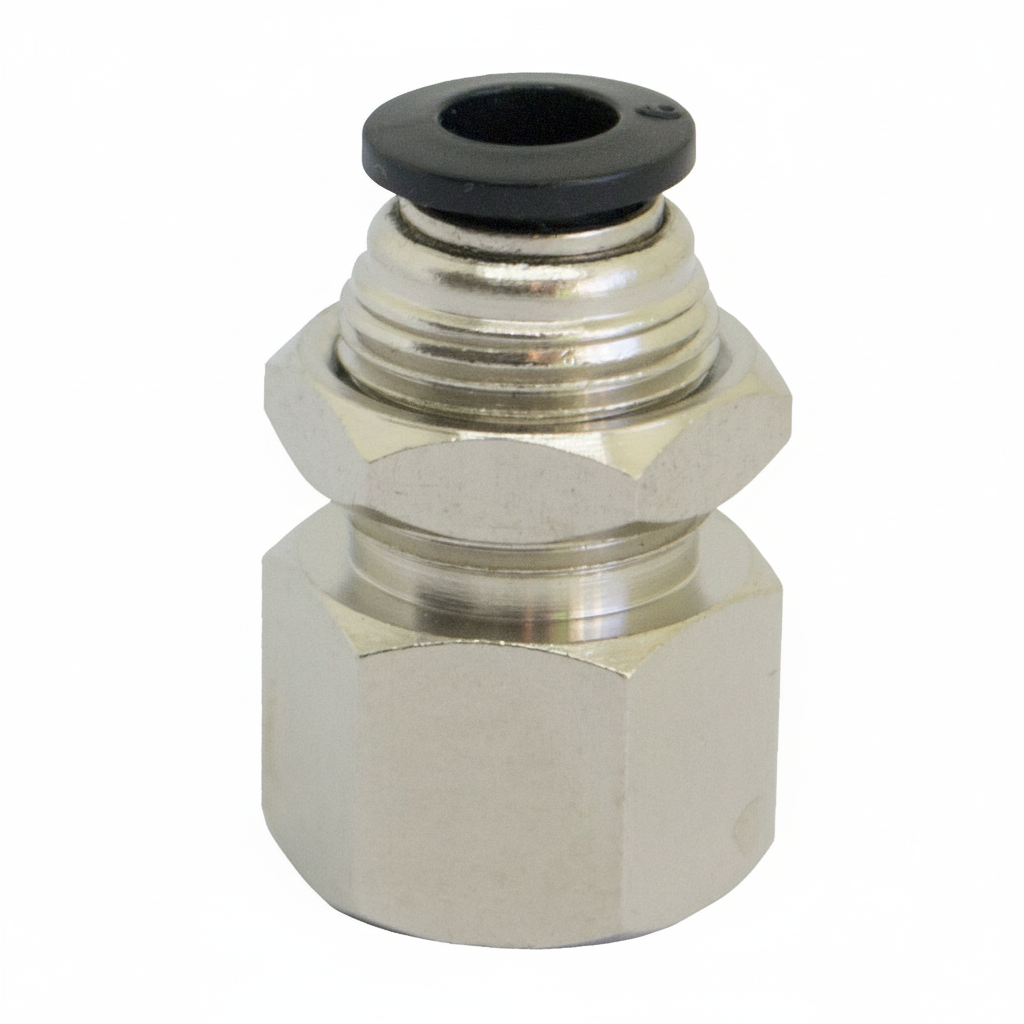

Skottgenomgång Ø8mm 3/8''

Skottgenomgång Ø8mm 3/8''

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Thread Vacuum max.
C02320418 Skottgenomgång Ø4mm 1/8'' 16 bar G 1/8 BSP -0.95 bar
C02320618 Skottgenomgång Ø6mm 1/8 16 bar G 1/8 BSP -0.95 bar
C02320638 Bulkhead union 6mm - female BSPP 1/8 16 bar G 3/8 BSP -0.95 bar
C02320818 Skottgenomgång INV-G1/8 -8mm 16 bar -0.95 bar
C02320828 Skottgenomgång Ø8mm 1/4 16 bar G 1/4 BSP -0.95 bar
C02320838 Skottgenomgång Ø8mm 3/8'' 16 bar G 3/8 BSP -0.95 bar
C02321238 Skottgenomgång Ø12mm 3/8'' 16 bar G 3/8 BSP -0.95 bar
Angle
0
Area of use
Compressed air, Vacuum
Brand Name
Tierre
Material
Brass, POM(Acetal), Stainless steel
Pressure max.
16
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Series
WTR
Standard
Silicone Free
Standard ISO
ISO 14743
Temperature max.
+80
Temperature min.
-20
Vacuum max.
-0.95
