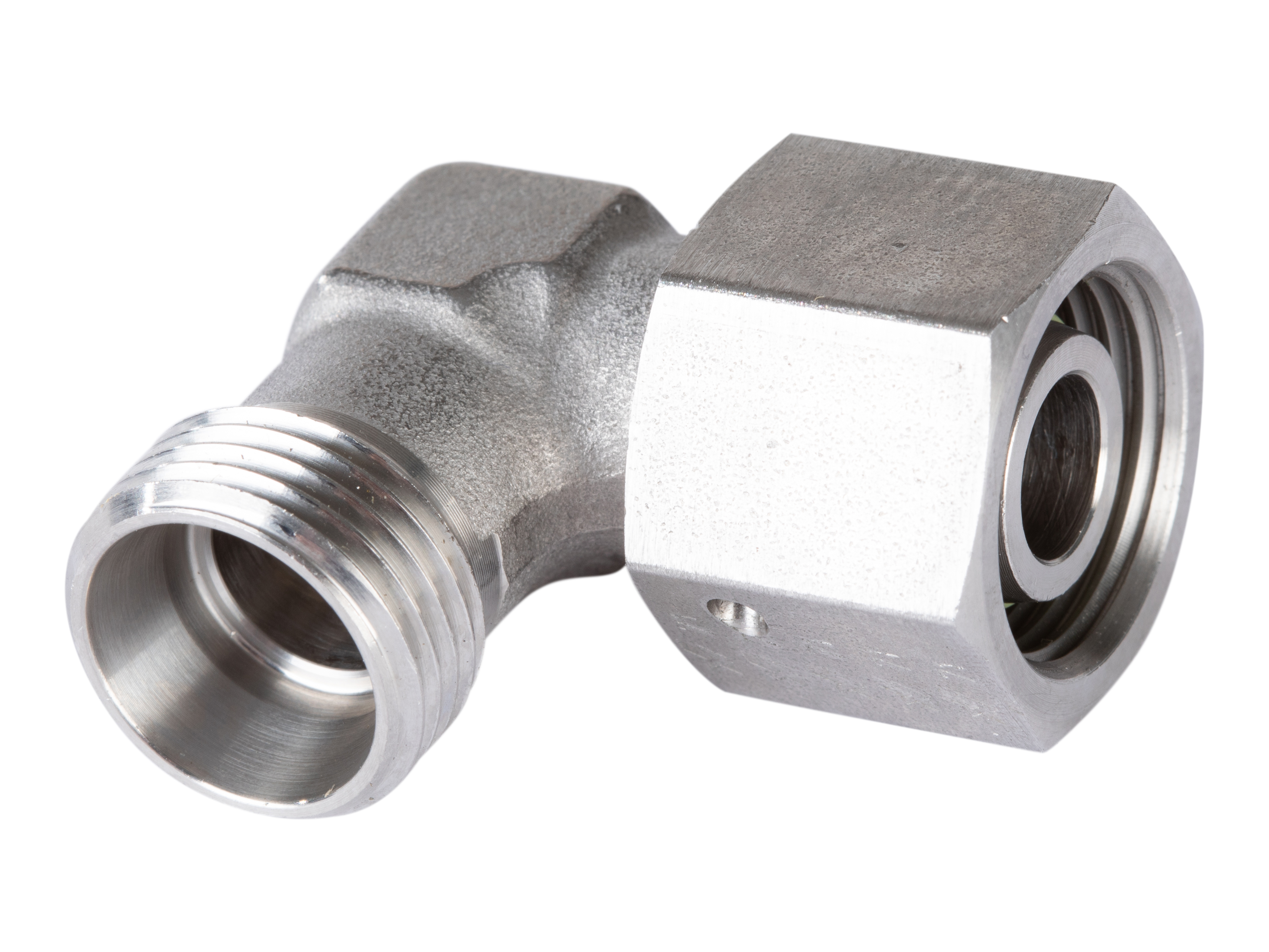

Elbow fitting 90° - L-series - MM union nut 24° x MM male 24° stainless - DKO - body only

Elbow fitting 90° - L-series - MM union nut 24° x MM male 24° stainless - DKO - body only

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter rör Gänga inv. metrisk Gänga utv. metrisk Tryck max.
XEW06L-SY Elbow adjustable 90° - ø6L - o-ring seal - AISI316 6 mm M12x1,5 MM M12x1,5 500 bar
XEW08L-SY Elbow adjustable 90° - ø8L - o-ring seal - AISI316 8 mm M14x1,5 MM M14x1,5 500 bar
XEW10L-SY Elbow adjustable 90° - ø10L - o-ring seal - AISI316 10 mm M16x1,5 MM M16x1,5 500 bar
XEW12L-SY Elbow adjustable 90° - ø12L - o-ring seal - AISI316 12 mm M18x1,5 MM M18x1,5 400 bar
XEW15L-SY Elbow adjustable 90° - ø15L - o-ring seal - AISI316 15 mm M22x1,5 MM M22x1,5 400 bar
XEW18L-SY Elbow adjustable 90° - ø18L - o-ring seal - AISI316 18 mm M26x1,5 MM M26x1,5 400 bar
XEW22L-SY Elbow adjustable 90° - ø22L - o-ring seal - AISI316 22 mm M30x2 MM M30x2 250 bar
XEW28L-SY Elbow adjustable 90° - ø28L - o-ring seal - AISI316 28 mm M36x2 MM M36x2 250 bar
XEW35L-SY Elbow adjustable 90° - ø35L - o-ring seal - AISI316 35 mm M45x2 MM M45x2 250 bar
XEW42L-SY Elbow adjustable 90° - ø42L - o-ring seal - AISI316 42 mm M52x2 MM M52x2 250 bar
Materialkvalitet
1.4571 / AISI316Ti
Märke namn
Volz
Packningsmaterial
FKM/FPM (Viton®)
Serie
L
Säkerhetsfaktor
4
Temperatur max.
+100
Temperatur min.
-25
Tillverkningsmaterial
Acid-resistant steel
Vinkel
90
