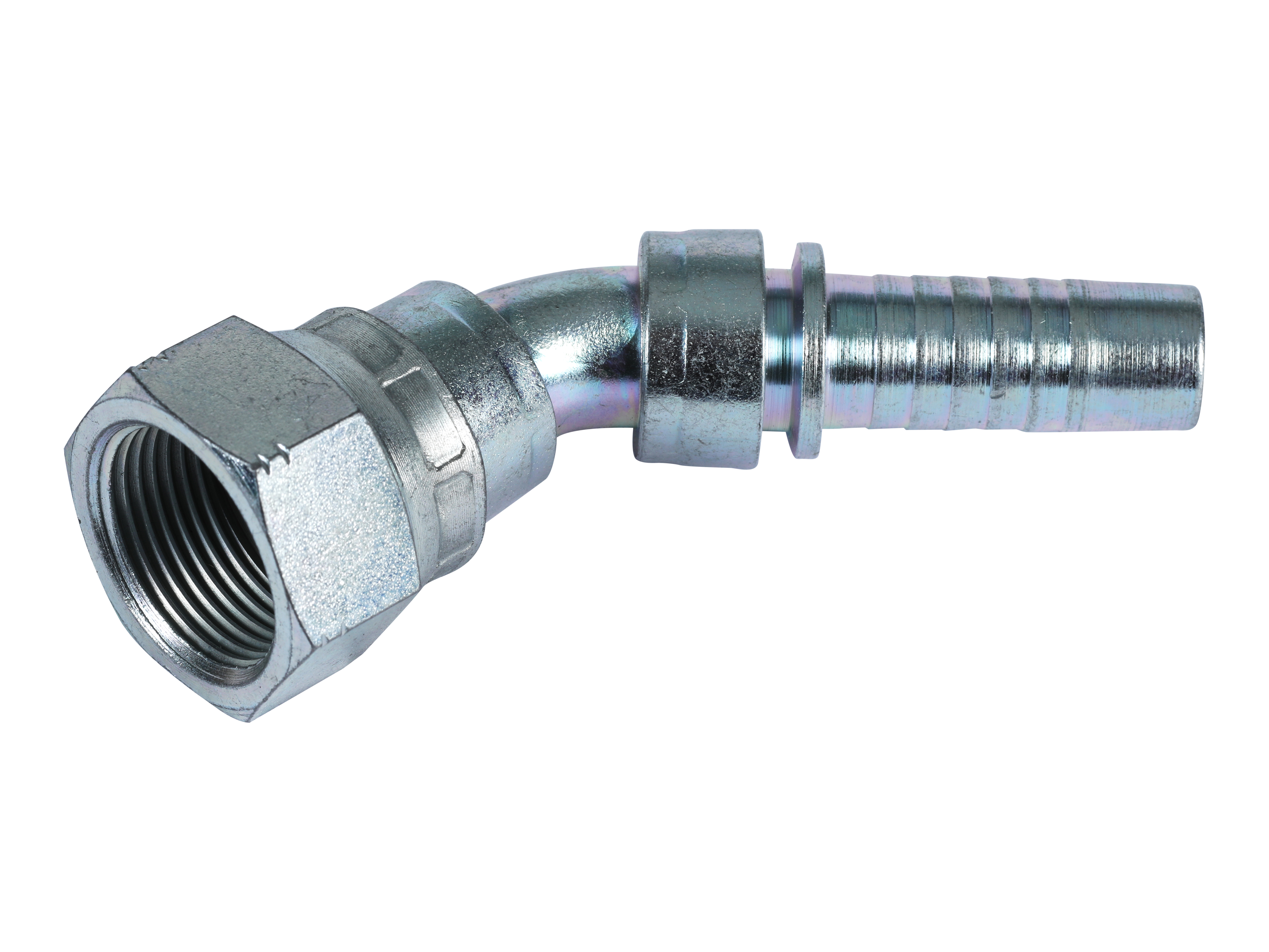

Metric union nut 60° cone face, 45° elbow , JIS/M, "Komatsu" 4947

Insert 1/4" - M14x1.5 nut 45°

Insert 3/8" - M14x1.5 nut 45°

PRESSNIPPEL 4947 IJM18 SL3/8

Insert 1/2" - M22x1.5 nut 45°

PRESSNIPPEL 4947 IJM24 SL5/8

PRESSNIPPEL 4947 IJM30 SL3/4

PRESSNIPPEL 4947 IJM33 SL1

SELECT VARIANT

Partnumber	Description	Slangdimension	Vinkel	Slangkopplingstyp	Tillverkningsmaterial
4947-14-04	Insert 1/4" - M14x1.5 nut 45°	1/4 "	45 °	For separate ferrule	Steel
4947-14-06	Insert 3/8" - M14x1.5 nut 45°	3/8 "	45 °	For separate ferrule	Steel
4947-18-06	PRESSNIPPEL 4947 IJM18 SL3/8	3/8 "	45 °	For separate ferrule	Steel
4947-22-08	Insert 1/2" - M22x1.5 nut 45°	1/2 "	45 °	For separate ferrule	Steel
4947-24-10	PRESSNIPPEL 4947 IJM24 SL5/8	5/8 "	45 °	For separate ferrule	Steel
4947-30-12	PRESSNIPPEL 4947 IJM30 SL3/4	3/4 "	45 °	For separate ferrule	Steel
4947-33-16	PRESSNIPPEL 4947 IJM33 SL1	1 "	45 °	For separate ferrule	Steel

Märke namn

I.M.M Hydraulics

Slangkopplingstyp

For separate ferrule

Tillverkningsmaterial

Steel

Vinkel

Ytskiktbehandling

Electro-galvanized / White chromatized
