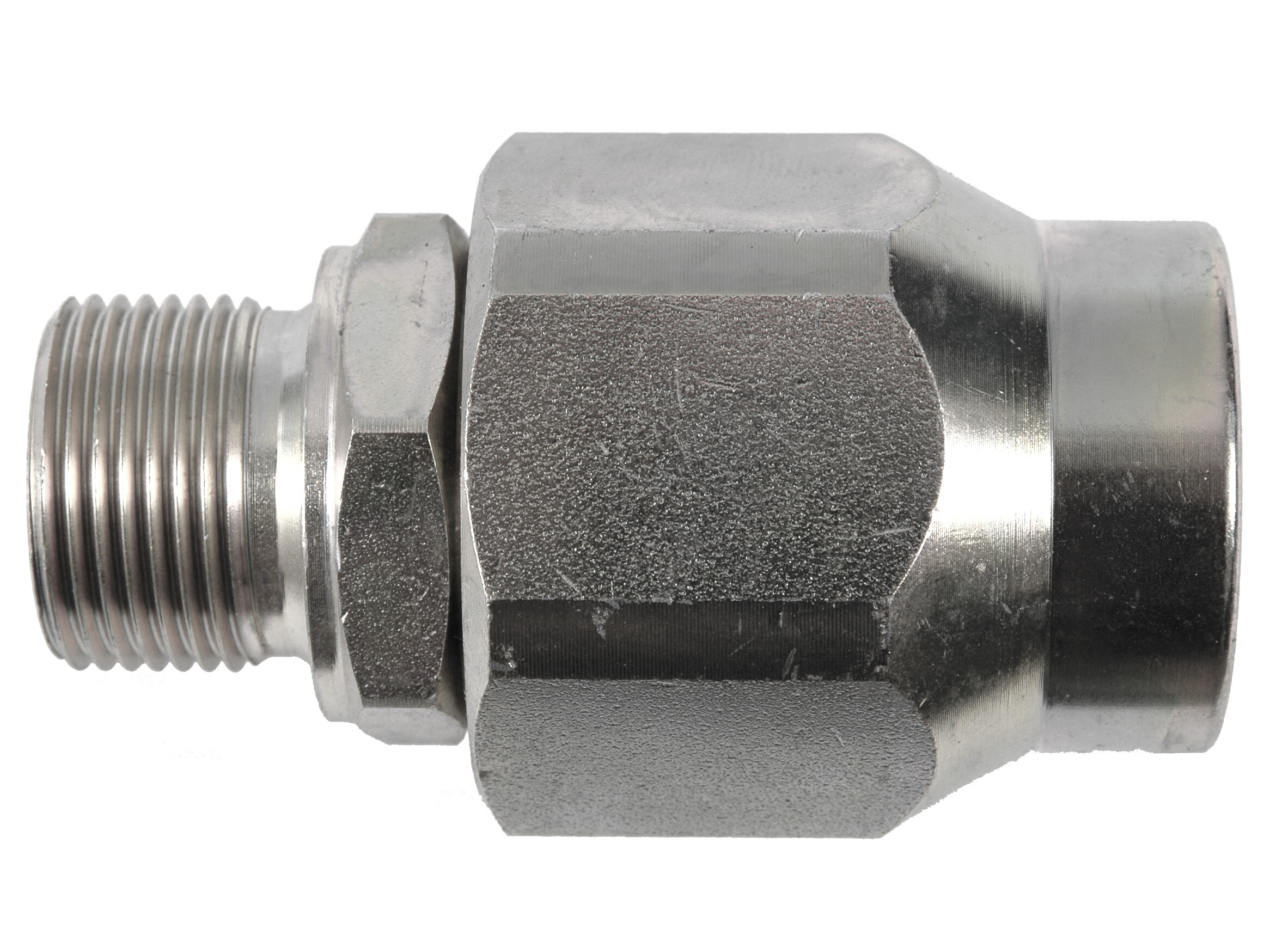

Swivel BSP x BSP - 46BP-E51

Swivel BSP x BSP - 46BP-E51

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread outer Thread inner Pressure max. Rotational speed max.
9000-04 Swivel 1/4 BSP 400 bar Hydraulics G 1/4 BSP G 1/4 BSP 400 bar 6 rpm
9000-06 Swivel 3/8 BSP 400 bar Hydraulics G 3/8 BSP G 3/8 BSP 400 bar 6 rpm
9000-08 Swivel 1/2 BSP 300 bar Hydraulics G 1/2 BSP G 1/2 BSP 300 bar 6 rpm
9000-12 Swivel 3/4 BSP 300 bar Hydraulics G 3/4 BSP G 3/4 BSP 300 bar 6 rpm
9000-16 Swivel 1 BSP 300 ba Hydraulics G 1 BSP G 1 BSP 300 bar 6 rpm
9000-20 Swivel 1.1/4 BSP 100 bar Hydraulics 60 R G 1.1/4 BSP G 1.1/4 BSP 100 bar 6 rpm
9000-24 Swivel 1.1/2 BSP 80 bar Hydraulics 60 R G 1.1/2 BSP G 1.1/2 BSP 80 bar 6 rpm
9000-32 Swivel 2 BSP 50 bar Hydraulics 60 rpm G 2 BSP G 2 BSP 50 bar 6 rpm
Angle
0
Brand Name
I.M.M Hydraulics
Material
Steel
Rotational speed max.
6
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+100
Temperature min.
-20
