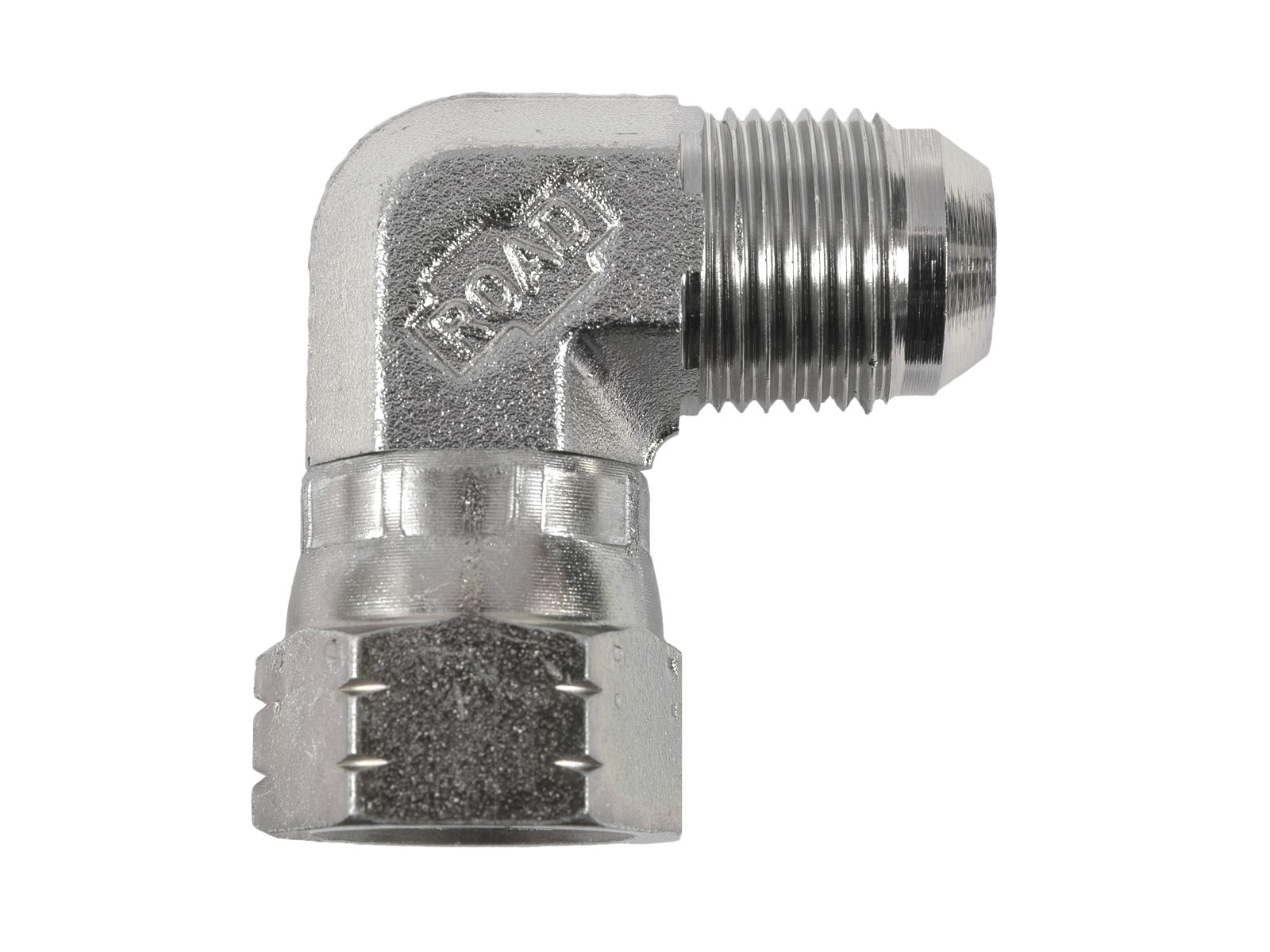

Elbow adapter 90° JIC male x JIC union nut - S675 / 16FS / JEVW

SELECT VARIANT

Partnumber	Description	Diameter pipe	Thread inner	Thread outer	Pressure max.
JEVW-04	Adapter 90K, Utv-JIC, Inv-JIC	6 mm	7/16-20 JIC	7/16-20 JIC	450 bar
JEVW-05	Adapter 90K, Utv-JIC, Inv-JIC	8 mm	1/2-20 JIC	1/2-20 JIC	416 bar
JEVW-06	Adapter 90K, Utv-JIC, Inv-JIC	10 mm	9/16-18 JIC	9/16-18 JIC	350 bar
JEVW-08	Adapter 90K, Utv-JIC, Inv-JIC	12 mm	3/4-16 JIC	3/4-16 JIC	350 bar
JEVW-10	Adapter 90°, Utv-JIC, Inv-JIC	16 mm	7/8-14 JIC	7/8-14 JIC	350 bar
JEVW-12	Adapter 90K, Utv-JIC, Inv-JIC	20 mm	1.1/16-12 JIC	1.1/16-12 JIC	300 bar
JEVW-14	Adapter 90K, Utv-JIC, Inv-JIC	22 mm	1.3/16-12 JIC	1.3/16-12 JIC
JEVW-16	Adapter 90K, Utv-JIC, Inv-JIC	25 mm	1.5/16-12 JIC	1.5/16-12 JIC	290 bar
JEVW-20	Adapter 90K, Utv-JIC, Inv-JIC	32 mm	1.5/8-12 JIC	1.5/8-12 JIC	240 bar
JEVW-24	Adapter 90K, Utv-JIC, Inv-JIC	38 mm	1.7/8-12 JIC	1.7/8-12 JIC	250 bar
JEVW-32	Adapter 90K, Utv-JIC, Inv-JIC		2.1/2-12 JIC	2.1/2-12 JIC

Angle
