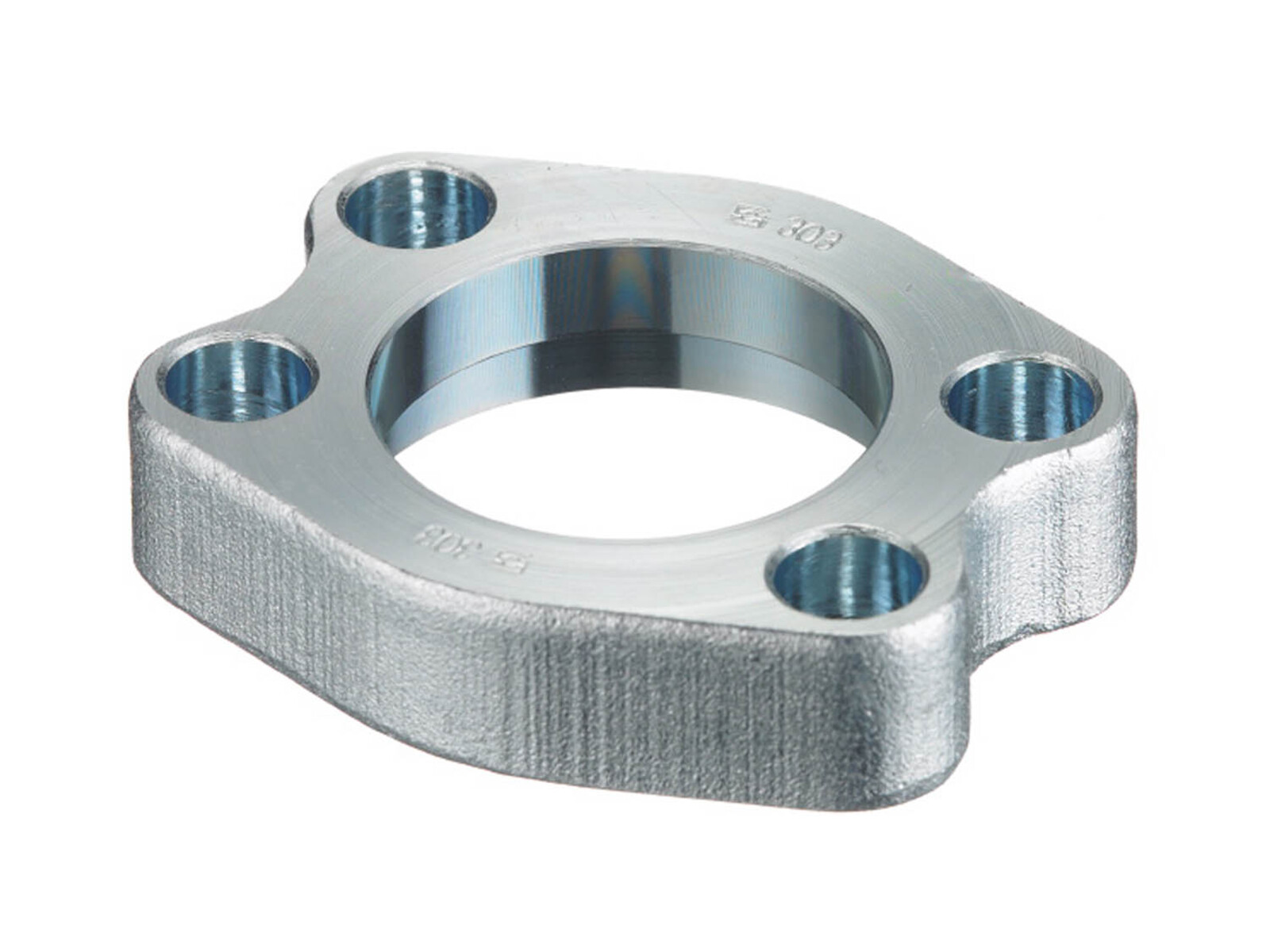

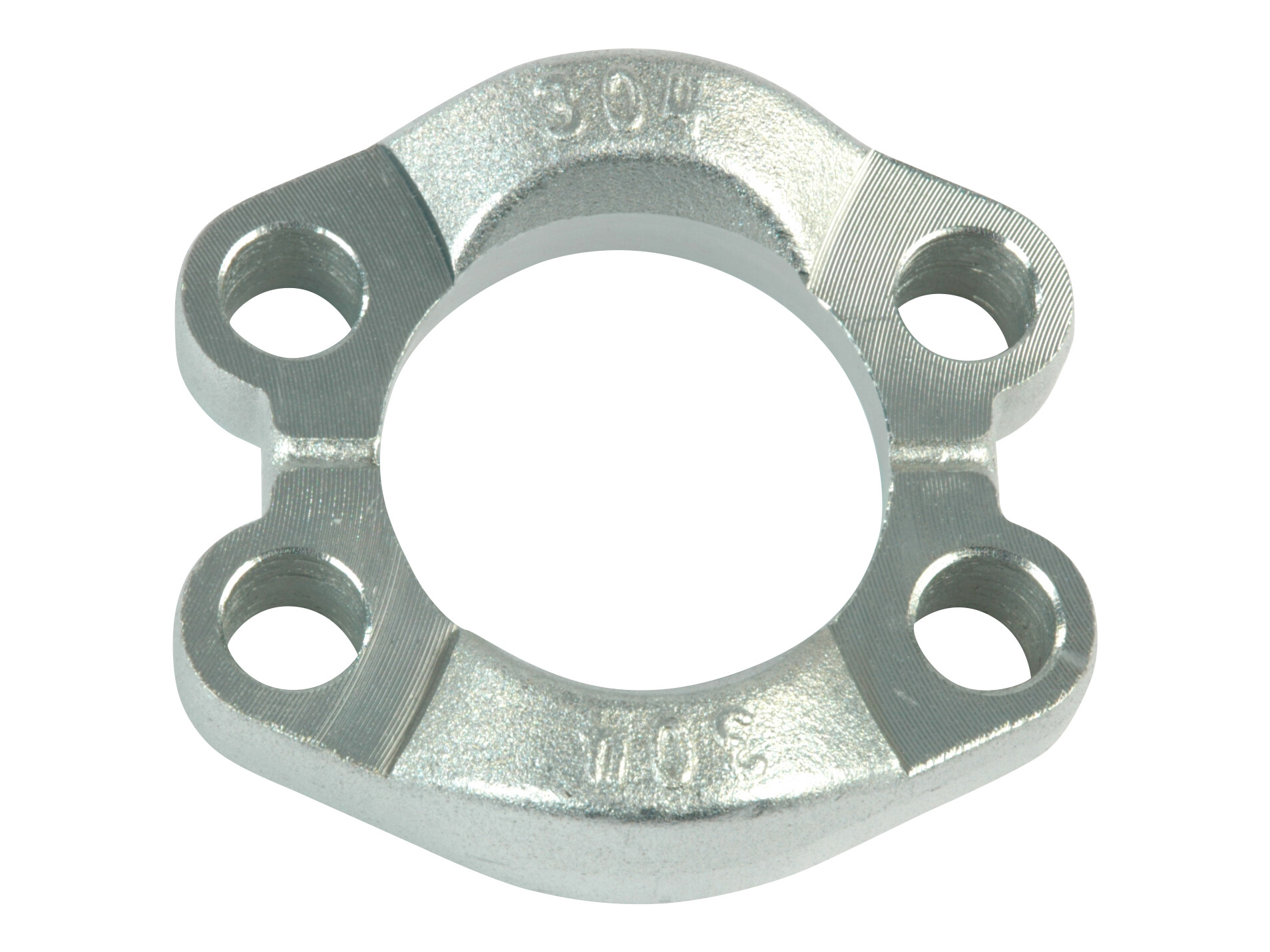

Uncut flanges SAE 3000 PSI - AFSI3 / 8301

Uncut flanges SAE 3000 PSI - AFSI3 / 8301

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange O-ring Bolt dimension Pressure max.
8301-08 HELFLÄNS SAE3000-1/2 1/2 " 18.64X3.53 mm M8x30 mm 345 bar
8301-12 HELFLÄNS SAE3000-3/4 3/4 " 24.99X3.53 mm M10x35 mm 345 bar
8301-16 HELFLÄNS SAE3000-1'' 1 " 32.93X3.53 mm M10x35 mm 345 bar
8301-20 HELFLÄNS SAE3000-1.1/4 1.1/4 " 37.69X3.53 mm M10x35 mm 280 bar
8301-24 HELFLÄNS SAE3000-1.1/2 1.1/2 " 47.22X3.53 mm 207 bar
8301-32 HELFLÄNS SAE3000-2'' 2 " 56.75X3.53 mm M12x35 mm 210 bar
8301-40 HELFLÄNS SAE3000-2.1/2 2.1/2 " 69.44X3.53 mm 172 bar
8301-40-L HELFLÄNS SAE3000-2.1/2 Lågbyggd 2.1/2 " 69,44X3,53 mm 500 bar
8301-48 HELFLÄNS SAE3000-3'' 3 " 85.32X3.53 mm 138 bar
8301-56 HELFLÄNS SAE3000 3.1/2 3.1/2 " 98.02X3.53 mm 34 bar
8301-64 HELFLÄNS SAE3000-4'' 4 " 110.72X3.53 mm 34 bar
8301-72 HELFLÄNS SAE3000-5'' 5 " 136.10X3.53 mm 34 bar
Flange SAE/DIN
3000 PSI
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
