Weld plate - DIN 3 Twin - Stainless

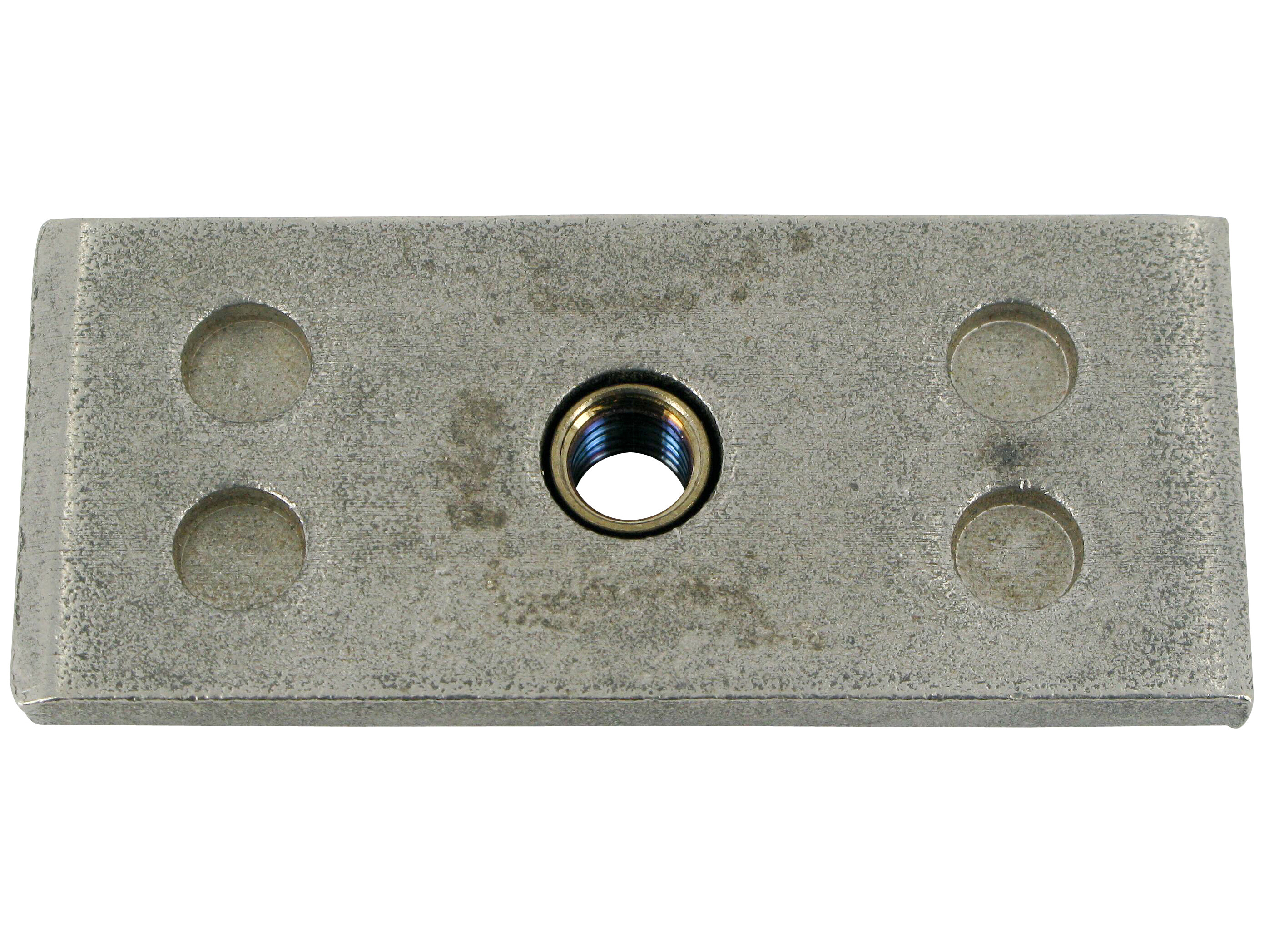

Weld plate for building a welded mounting point for a twin pipe clamp installation according to DIN 3015 Part 3. The plate provides a threaded connection for attaching the clamp assembly after the plate has been welded to the base structure.

Designed for DIN size 3 and made from stainless steel 1.4571 / AISI 316Ti. Selection is primarily based on the DIN size, the thread, and the plate dimensions to match the required clamp group and available mounting space.

Typical Applications
  • Welded mounting points for twin pipe clamp installations in hydraulic pipe routing
  • Machine and skid pipework where a weld-on clamp attachment point is required

Partnumber:
SP3D-SY

Package size:
25 pcs

Min. order quantity is:
1 pcs
B
30 mm

Brand Name
Stauff

D
14 mm

DIN size
3

G
M8

Group Stauff
3D

H
6 mm

L
70 mm

Length
70 mm

Material
Stainless steel

Material quality
1.4571 / AISI316Ti

Model code
SP-3D-M-W5

Number of clamps
1

S
5 mm

Standard DIN
DIN 3015 part 3

Thread
M8

Thread metric
M8

Width
30 mm
Package size
25 pcs

Barcode
212851

Gross weight
0,09 Kg

Net weight
0,09 Kg

Country of origin
DEU

Intrastat code
39259010

Weld plate for building a welded mounting point for a twin pipe clamp installation according to DIN 3015 Part 3. The plate provides a threaded connection for attaching the clamp assembly after the plate has been welded to the base structure.

Designed for DIN size 3 and made from stainless steel 1.4571 / AISI 316Ti. Selection is primarily based on the DIN size, the thread, and the plate dimensions to match the required clamp group and available mounting space.

Typical Applications
  • Welded mounting points for twin pipe clamp installations in hydraulic pipe routing
  • Machine and skid pipework where a weld-on clamp attachment point is required

Note: Opening 3D files requires a program that supports the file format
