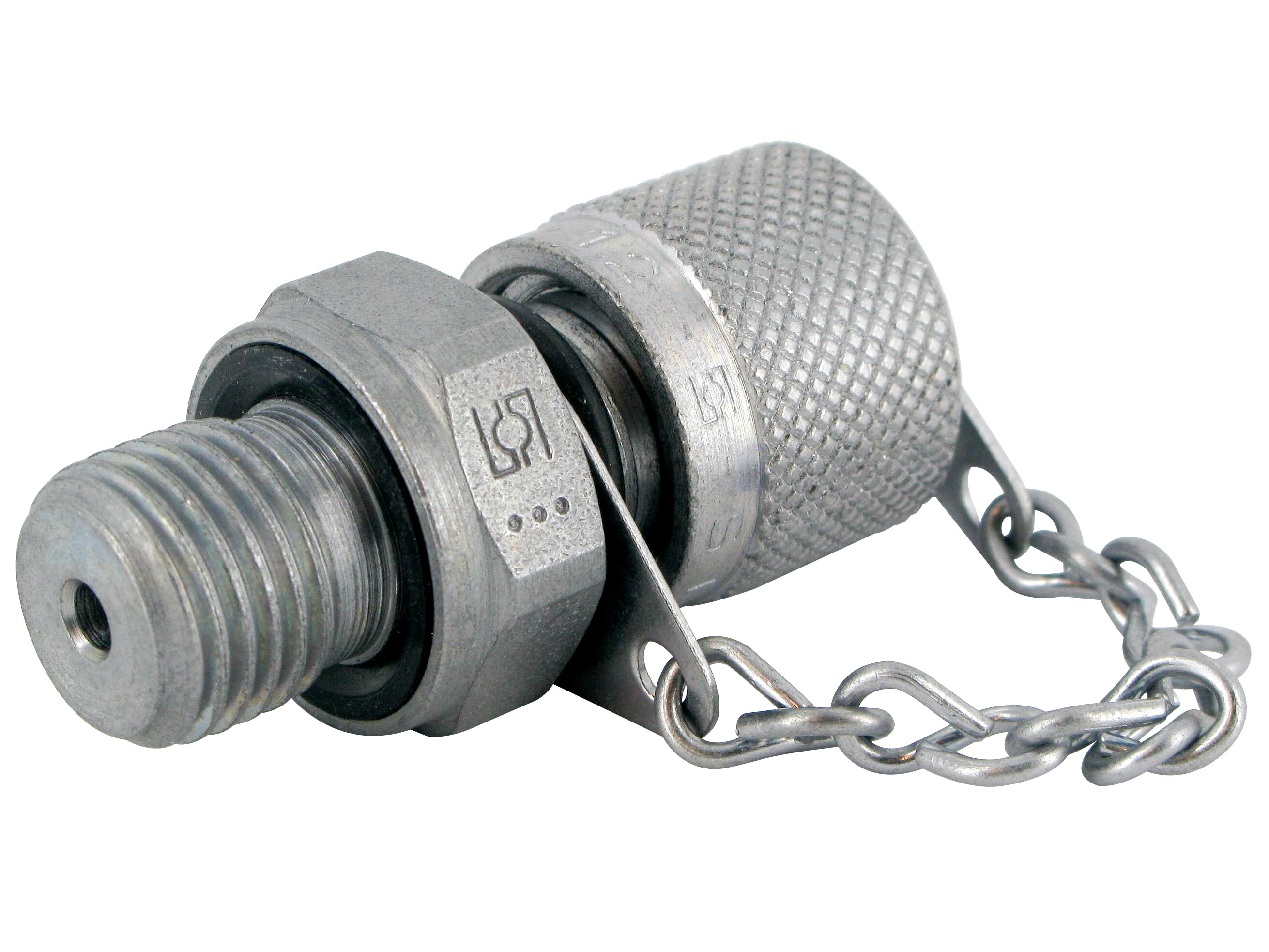

Adaptor G 1/4, WD w.metal cap M12,65x1,5
Test adaptor for connecting measuring equipment to a hydraulic port. The adaptor provides a G 1/4 BSP male connection on the system side and a S12,65x1,5 test connection with a metal protection cap on the measurement side.
Designed for high-pressure measurement points with a maximum working pressure of 630 bar. NBR sealing material and zinc-nickel plated surface treatment are specified for the adaptor.
Typical Applications
- Connection point for pressure measurement and test hoses in hydraulic systems
- Temporary connection of gauges and diagnostic equipment at a G 1/4 BSP port
Artikelnummer:
SKK12-G1/4-PC
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Gänga utv.
G 1/4 BSP
Gänga utv.
G 1/4 BSP
Gänga utv. metrisk
M12,65x1,5
Modell kod
SKK-12-G1/4-B-C-W3
Märke namn
Stauff
Packningsmaterial
NBR
SW
19 mm
Sexkant
19 mm
T
G 1/4 BSP
Temperatur max.
+100 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Steel
Tryck max.
630 bar
Ytskiktbehandling
Zinc-Nickel plated
h1
31 mm
h2
12 mm
Åtdragning moment
45 Nm
Förpackningsstorlek
1 pcs
Streckkod
212618
Bruttovikt
0,08 Kg
Nettovikt
0,08 Kg
Ursprungsland
DEU
Intrastat artikelkod
84812010
Test adaptor for connecting measuring equipment to a hydraulic port. The adaptor provides a G 1/4 BSP male connection on the system side and a S12,65x1,5 test connection with a metal protection cap on the measurement side.
Designed for high-pressure measurement points with a maximum working pressure of 630 bar. NBR sealing material and zinc-nickel plated surface treatment are specified for the adaptor.
Typical Applications
- Connection point for pressure measurement and test hoses in hydraulic systems
- Temporary connection of gauges and diagnostic equipment at a G 1/4 BSP port
