Pump Casappa Gr1 6.67cc 1:8

Pump Casappa Gr1 6.67cc 1:8

Artikelnummer:
PLP10.6.3R0-81E1-LGC/GC-N-EL

Förpackningsstorlek:
1 st

Minsta beställningskvantitet:
1 st
Brand Name
Casappa

Contamination level max.
19/17/14 - ISO 4406

Displacement
6.67 cm3

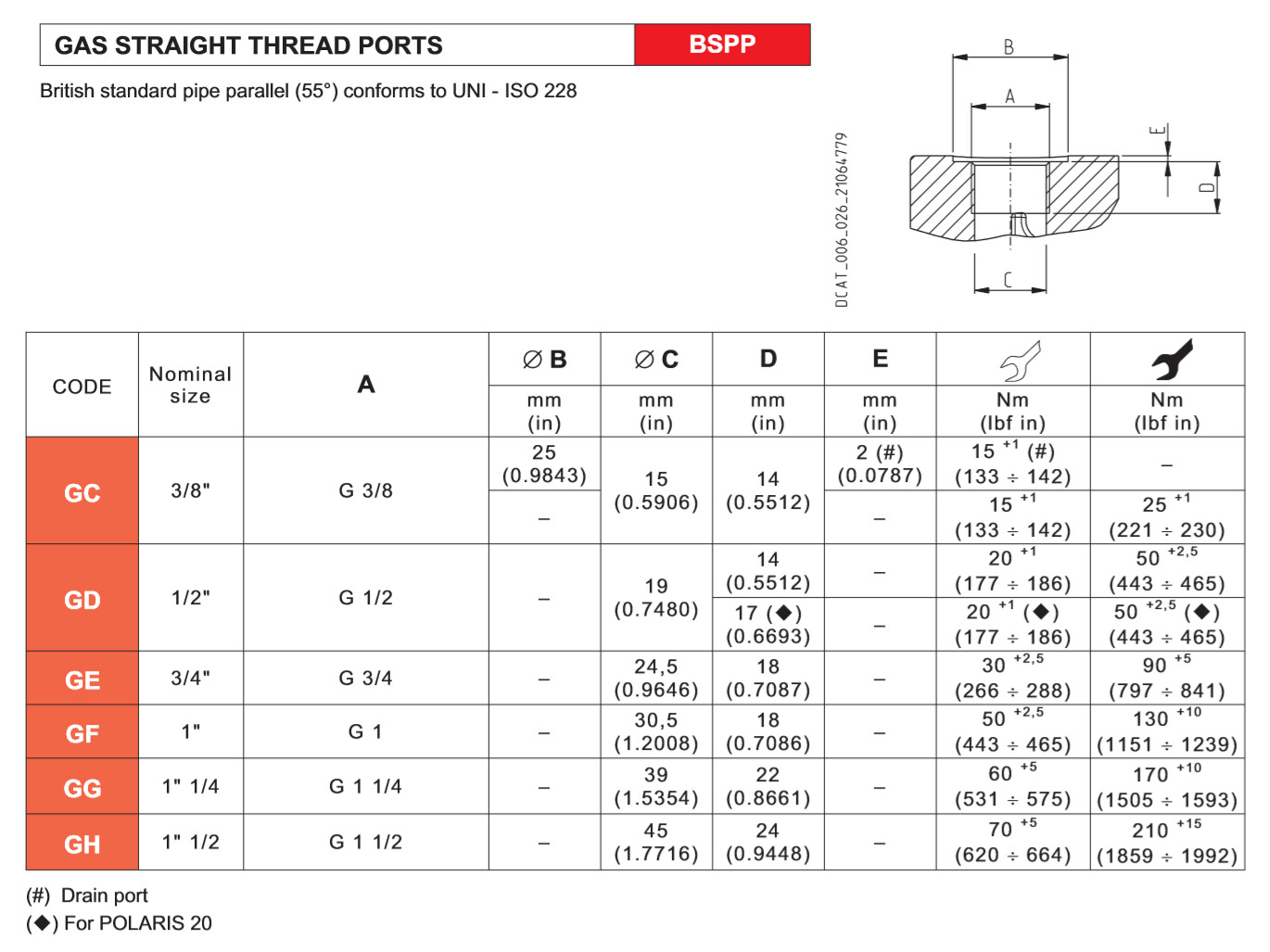

Inlet
G 3/8 BSP

Model code
PLP10.6.3R0-81E1-LGC/GC-N-EL

Mounting flange
EU25 - 72x52

Number of mounting holes
4

Oil viscocity recommended
12 - 100 cSt

Outlet
G 3/8 BSP

Pressure continous P1 max.
230 bar

Pressure continous P2 max.
250 bar

Pressure continous max.
230 bar

Pressure intermittent max.
250 bar

Pressure peak max.
260 bar

Pump group
1

Recess
25,0 mm

Rotation direction
Reversible (CW/CCW)

Rotational speed max.
3500 rpm

Shaft cone
1:8

Shaft keyway
2,4 mm

Shaft type
Tapered
Förpackningsstorlek
1 st

Streckkod
334839

Bruttovikt
Kg

Nettovikt
Kg

Ursprungsland
ita
