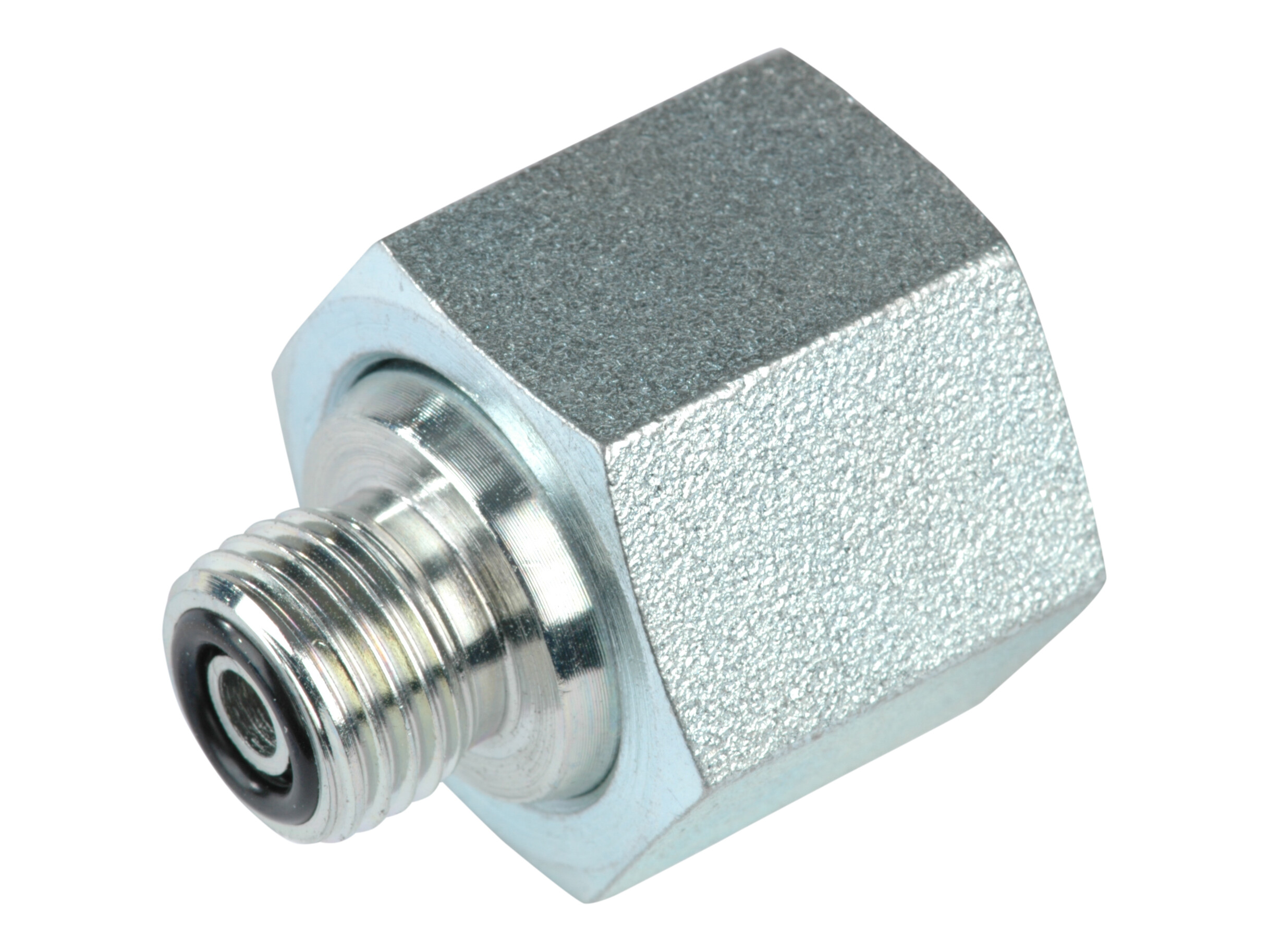

Bushing 9/16-18x 1-14 ORFS male x female
\ufeff
-
ORFS straight conversion connector
- One end ORFS male thread
- Other end ORFS female thread
Partnumber:
OFKOR-10-04
Package size:
1 st
Min. order quantity is:
1 st
A
23 mm
Angle
0 °
Brand Name
FOR
CH
30 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
F
1-14 ORFS
F1
9/16-18 ORFS
Material
Steel
Pressure max.
120 bar
Sealing material
NBR
Surface treatment
Electro-galvanized / White chromatized
T
14-15-16 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread F
1-14 ORFS
Thread F1
9/16-18 ORFS
Thread inner
1-14 ORFS
Thread outer
9/16-20 ORFS
Package size
1 st
Barcode
144439
Gross weight
0,10 Kg
Net weight
0,10 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
ORFS straight conversion connector
- One end ORFS male thread
- Other end ORFS female thread
Note: Opening 3D files requires a program that supports the file format
