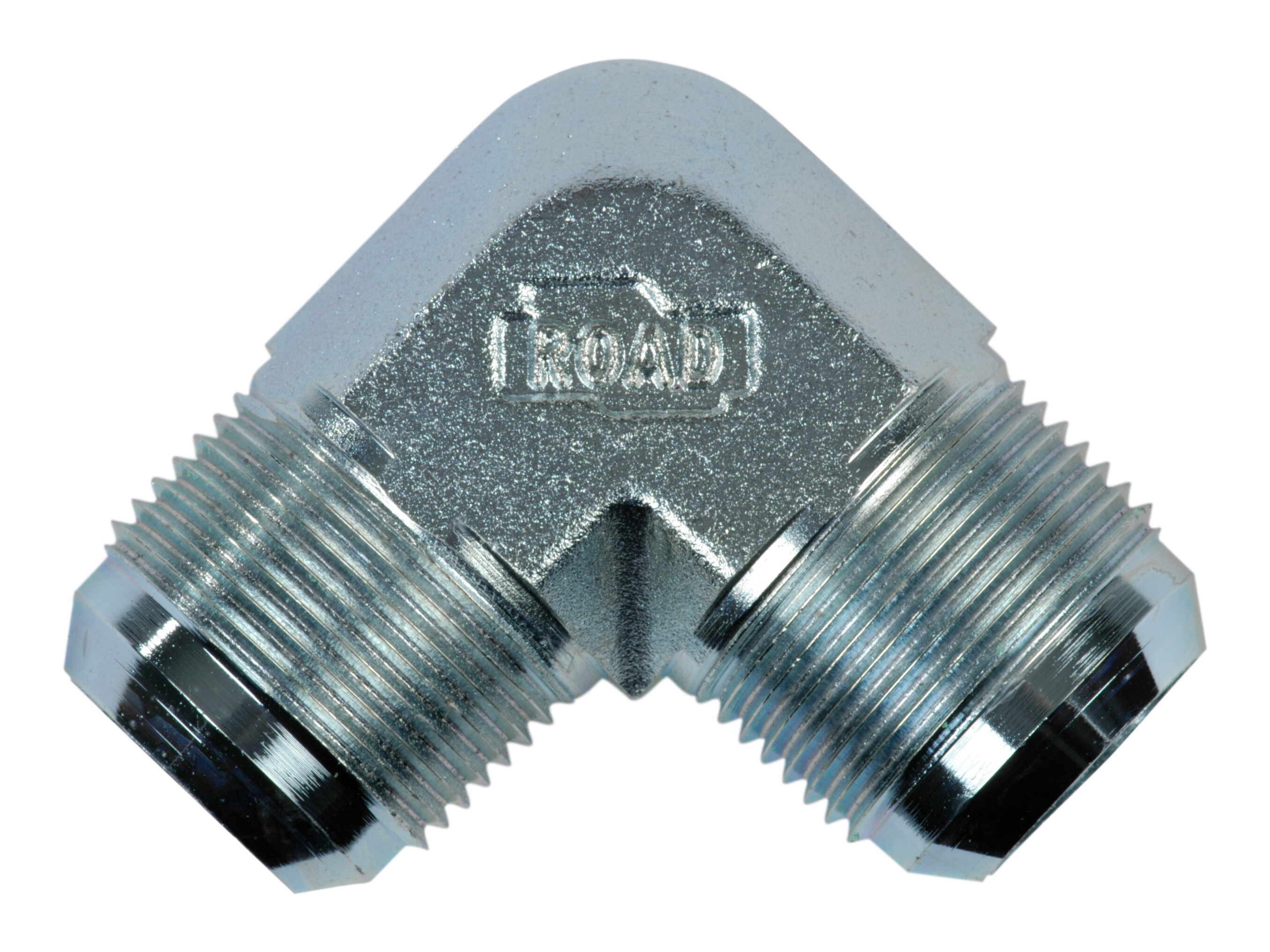

S500-25IL elbow, 90 °

S500-25IL elbow, 90 °

S500-25IL elbow, 90 °

S500-25IL elbow, 90 °

ADAPTER 90K UTV-JIC

Partnumber:

JW-16

Package size:

10 st

Min. order quantity is:

1 st

Accessories (1)

Bushing

Varenummer: JD-25

Specifikationer
Dimensioner og forsendelse

Angle

90 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

25 mm

HEX 1

36 mm

L

50 mm

Material

Steel

Pressure max.

290 bar

R1

1.5/16-12 UNF

Surface treatment

Electro-galvanized / White chromatized

Thread outer

1.5/16-12 UNF

ØC

21,5 mm

ØD1

25 mm

ØD2

1 JIC

Pakke str.

10 st

Stregkode

134086

Brutto vægt

0,32 Kg

Netto vægt

0,32 Kg

Oprindelsesland

ITA

Intrastat varekode

73071110

Produkt information

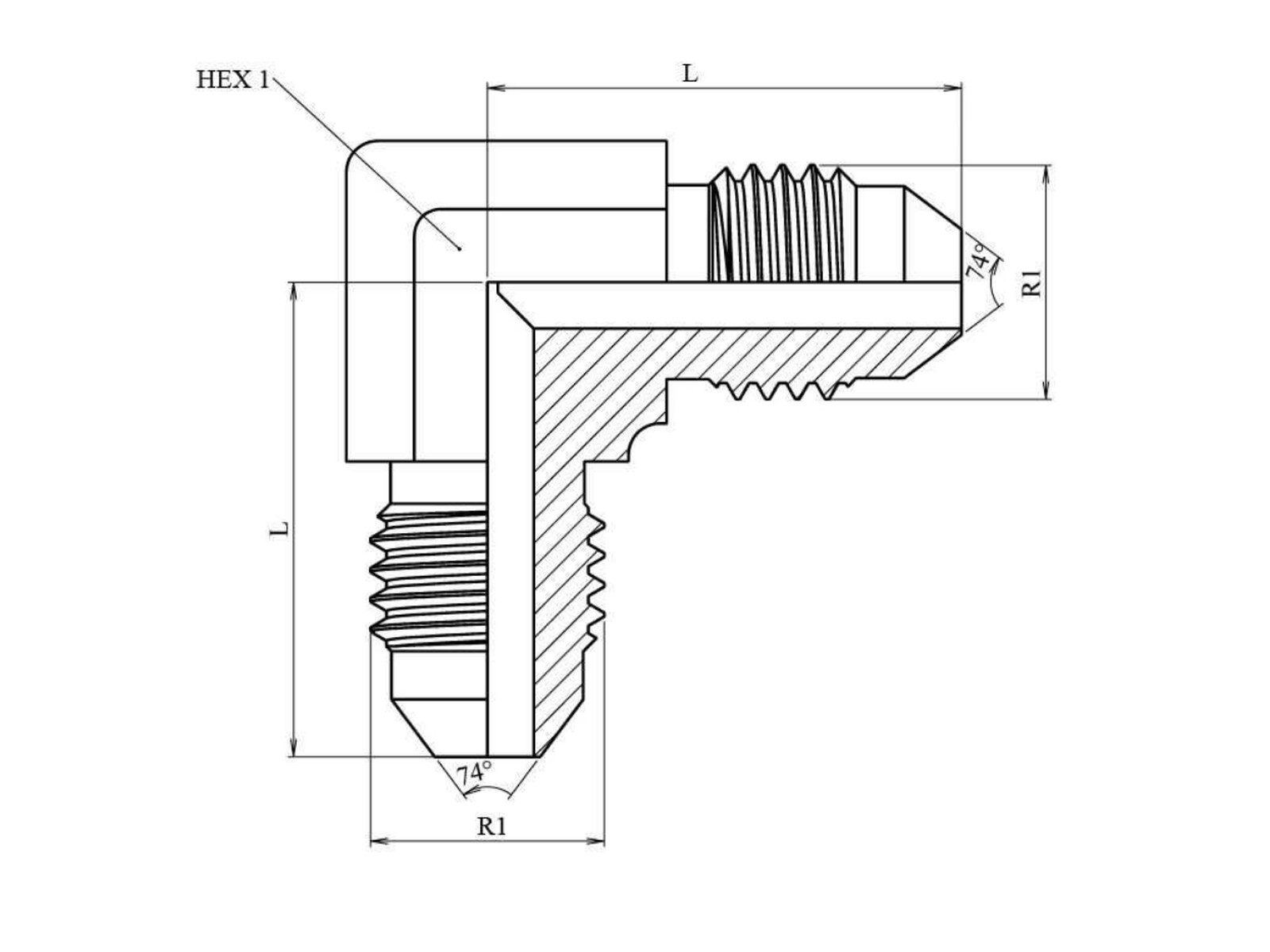

Målskitse

ADAPTER 90K UTV-JIC

Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
