S200-06-10N adaptor NPT
\ufeff
-

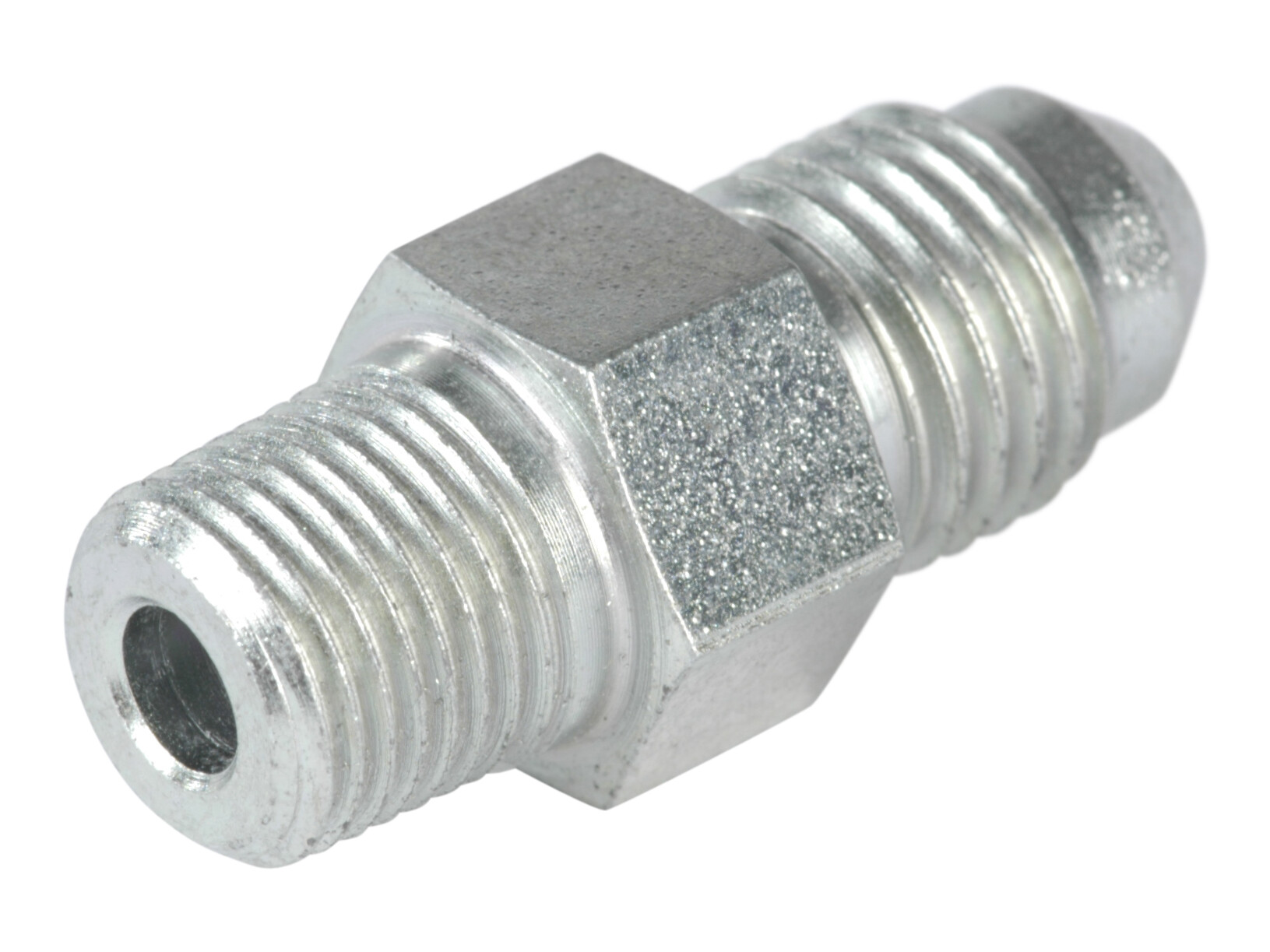

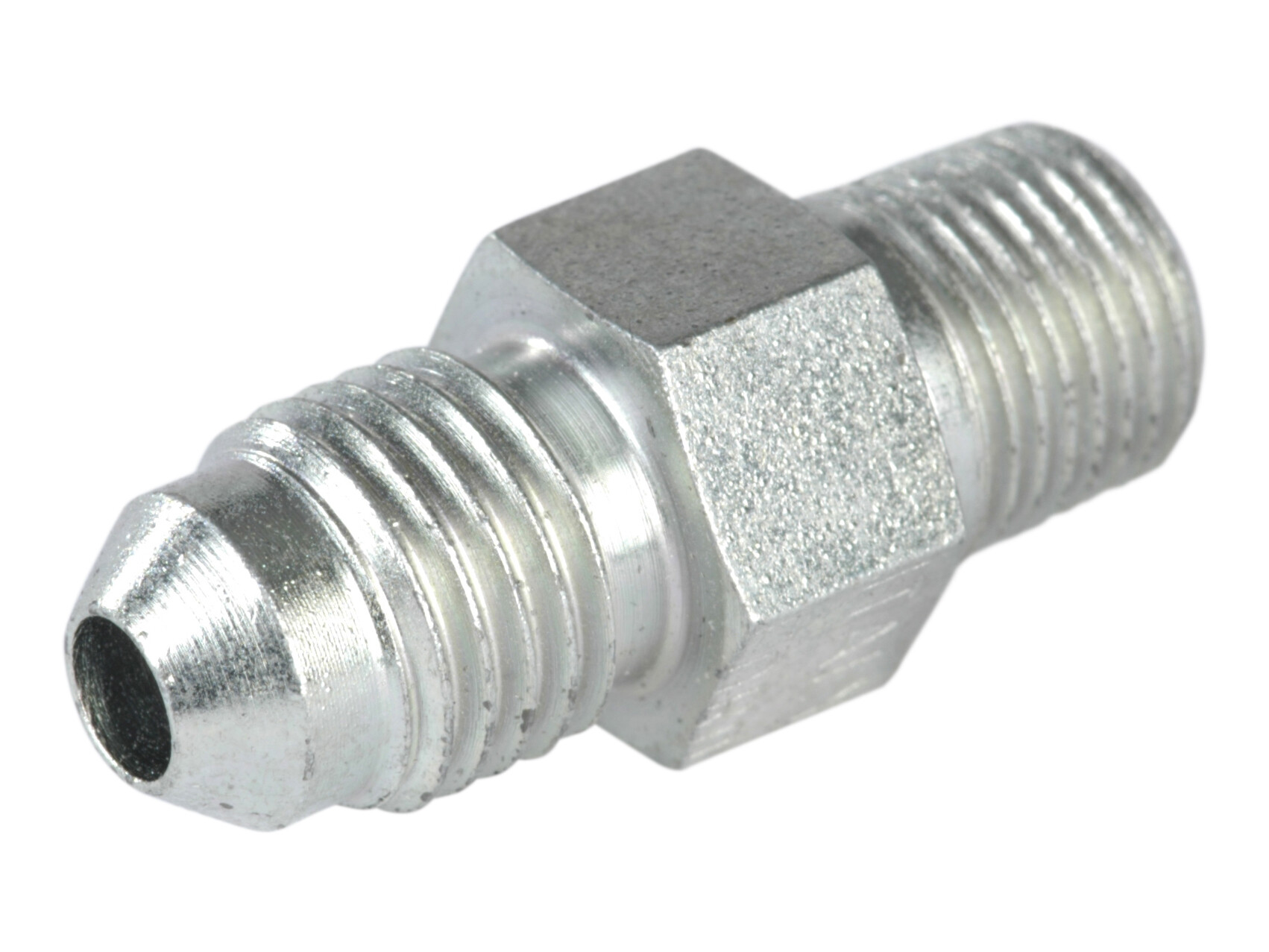

JIC 37° male straight basic connector
- Male thread NPTF
- for SAE 476 threaded ports
Partnumber:
JGEN-04-02
Package size:
50 st
Min. order quantity is:
1 st
A
31 mm
B
14 mm
C
10 mm
CH
14 mm
Diameter rör
6 mm
Dimension F
1/8 NPT
Gänga utv.
1/8 NPT
Gänga utv.
7/16-20 JIC
J
7/16-20 JIC
Märke namn
FOR
Rostbeständighet
1400 hours salt spray DIN EN ISO 9227
T
6 mm
Tillverkningsmaterial
Steel
Tryck max.
450 bar
Vinkel
0 °
Ytskiktbehandling
Electro-galvanized / White chromatized
Package size
50 st
Barcode
143963
Gross weight
0,02 Kg
Net weight
0,02 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° male straight basic connector
- Male thread NPTF
- for SAE 476 threaded ports
