Coupling male flatface FF - DN20 - 1"BSP female

Varenummer:

FF19-2-IGF16

Pakke str.:

1 st

Min. bestillingsenhed er:

1 st

Specifikationer
Dimensioner og forsendelse

Brand Name

Stauff

Dimension H

30 mm

Dimension L

83.7 mm

Dimension Y

46 mm

Flow rate nominal LMin

160 lpm

ISO size

Material

Steel

Model code

FF19-2-IGF16

Pressure burst min.

1200 bar

Pressure max.

350 bar

Sealing material

NBR

Size

1 "

Standard ISO

ISO 16028

Surface treatment

Zinc-Nickel plated

Temperature max.

+100 °C

Temperature min.

-25 °C

Thread inner

G 1 BSP

Pakke str.

1 st

Stregkode

488719

Brutto vægt

0,31 Kg

Netto vægt

0,31 Kg

Oprindelsesland

DEU

Intrastat varekode

84812010

Produkt information

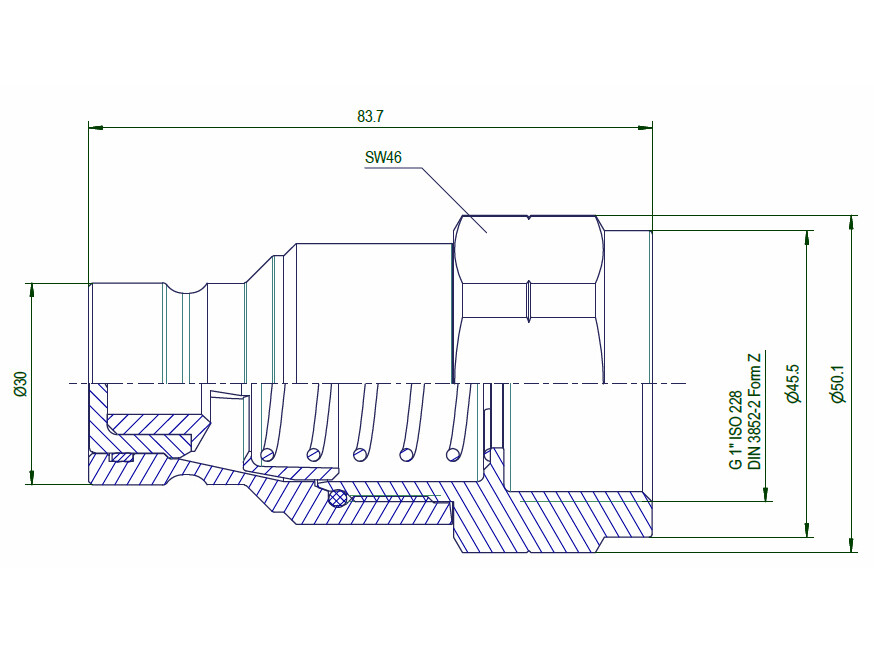

Målskitse

Coupling male flatface FF - DN20 - 1"BSP female
