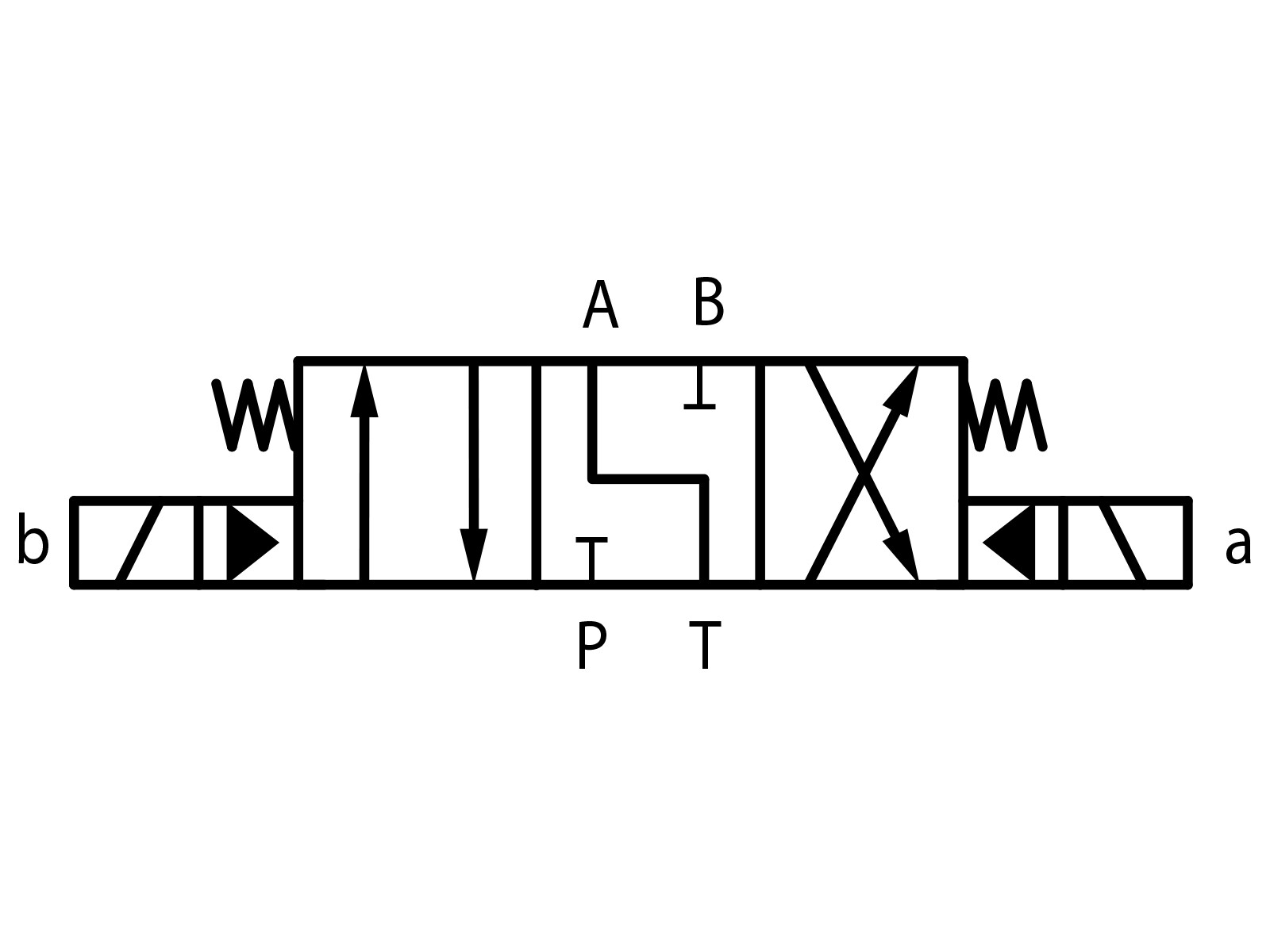

Riktningsventil NG16, int. pilot, ext drain, 24VDC
Artikelnummer:
DSP7-S11/20N-IE/D24K1
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Activation
Solenoid
Brand Name
Duplomatic
Contamination level max.
20/18/15 - ISO 4406
Current type
DC
Flow rate nominal LMin
300 lpm
NG ISO-size
NG16
Number of ways/positions
4/3
Oil viscocity recommended
10 - 400 cSt
Plug type
DIN 43650 Form A
Pressure T max.
210 bar
Pressure max.
350 bar
Protection class
IP 65
Sealing material
NBR
Temperature max.
+50 °C
Temperature min.
-20 °C
Torque tightening
5 / 40 Nm
Voltage
24 V
Pakke str.
1 st
Stregkode
432587
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
ita
