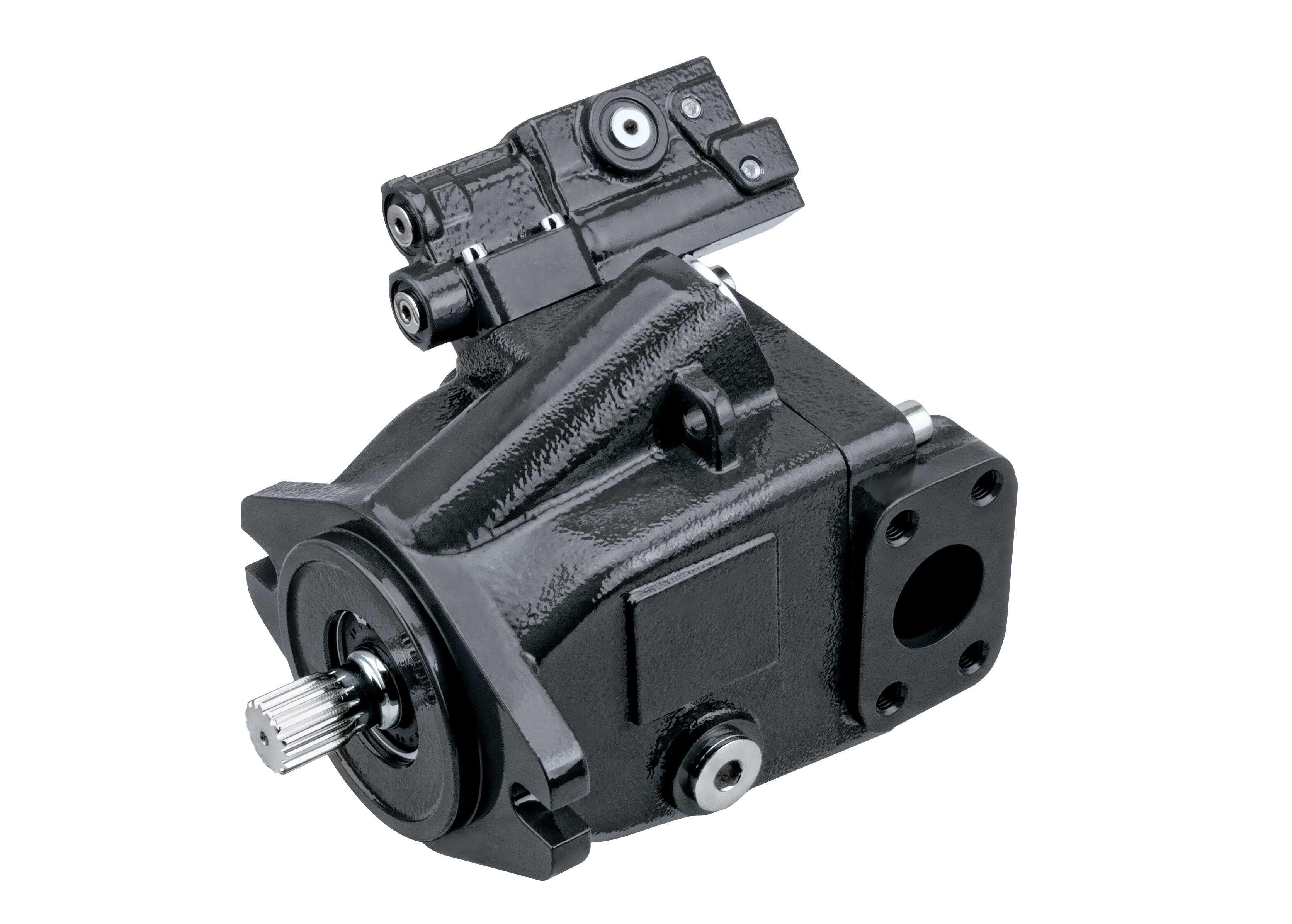

S45 Pump K2-L-025C-LS-21-20-NN-N-3-C2RR-A6N-AAA-NNN-NNN
S45 Pump K2-L-025C-LS-21-20-NN-N-3-C2RR-A6N-AAA-NNN-NNN
Varenummer:
83069363
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
AuxMount/EndCap code
RR
Brand Name
Danfoss
Contamination level max.
22/18/13 - ISO 4406
Continuous rotation max.
3450 rpm
Control
Load sensing
Control type
LS
Displacement
25 cm3
Displacement limiter
Adjustable
Flange SAE/DIN
3000 PSI
Flange inlet
1.1/2 "
Flange outlet
1 "
Holes circle
146 mm
Model
Frame K2
Model code
K2-L-025C-LS-21-20-NN-N-3-C2RR-A6N-AAA-NNN-NNN
Mounting flange
SAE-B2
Number of mounting holes
2
Number of outer grooves
13
Oil viscocity recommended
9 - 110 cSt
Port position
Side
Pressure continous max.
260 bar
Pressure max.
350 bar
Rear flange
None
Recess
101,6 mm
Rotation direction
Left (CCW)
Rotation max. at max. pressure
2800 rpm
Rotational speed max.
3750 rpm
Rotational speed min.
500 rpm
Sensor type
None
Shaft code
C2
Shaft seal material
FKM/FPM (Viton®)
Shaft spline
13T 16/32 SAE-B
Shaft type
Spline
Temperature intermittent max.
+115 °C
Temperature max.
+104 °C
Temperature min.
-40 °C
Package size
1 st
Barcode
460874
Gross weight
Kg
Net weight
Kg
Country of origin
cze
Intrastat code
84135061
S45 Pump K2-L-025C-LS-21-20-NN-N-3-C2RR-A6N-AAA-NNN-NNN
