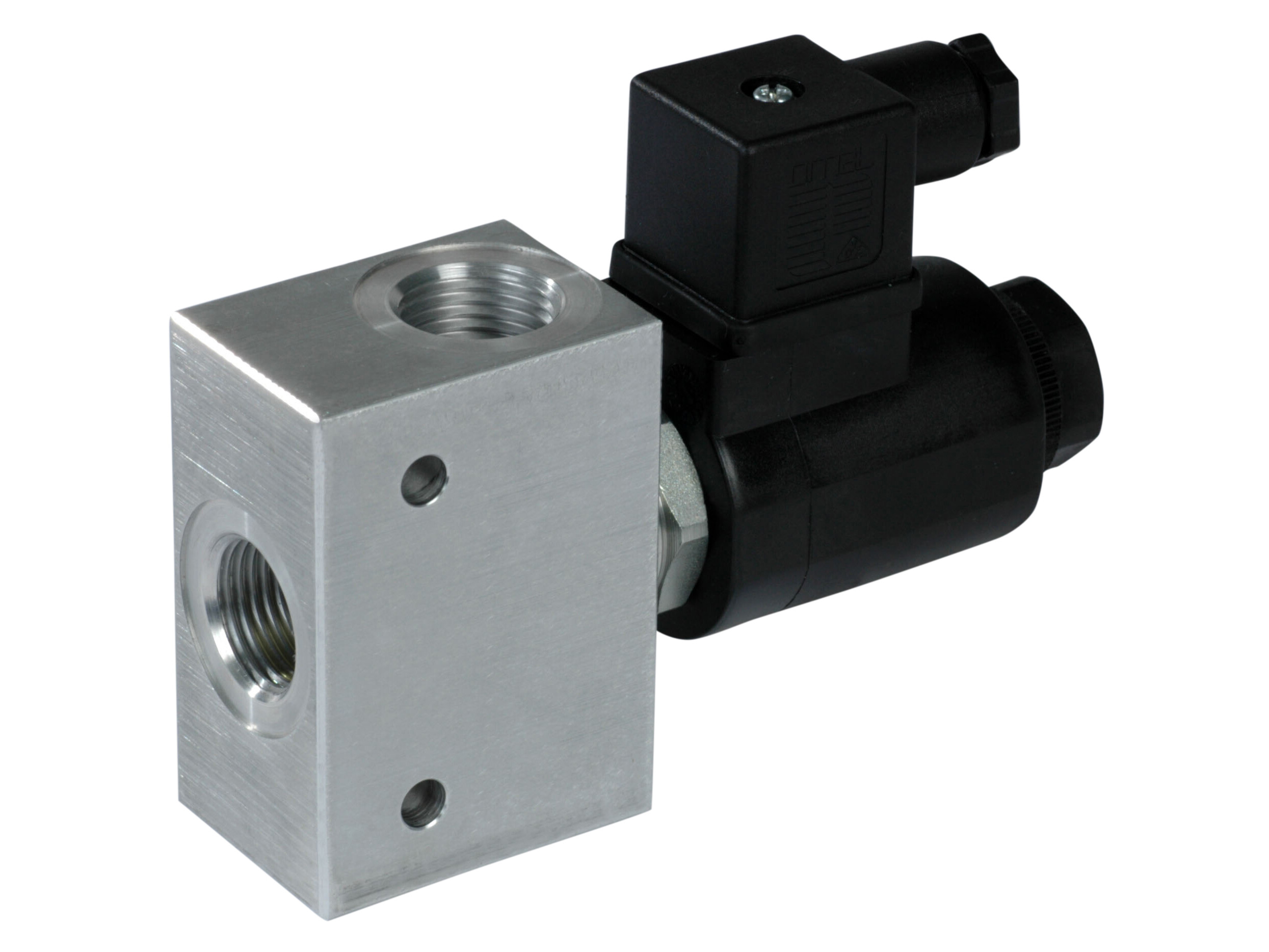

SOLENOID VALVE POPPET TYPE EVK EVK 06/C5-12D-A-DG-1/2
This is a 2-way, 2-position, poppet type, direct acting, normally closed, bi-directional solenoid valve. In its de-energized condition, flow is blocked in both directions. Leakage in either direction is kept to a minimum due to the poppet design. When energized, flow can take place from port 2 to 1 and from 1 to 2.
These valves come standard with a push pin manual override. These valves can be used to hold loads in position or interrupt a pressure line where flow is expected to pass in both directions in the de-energized condition. They do not suffer from momentary opening due to shock pressures.
Partnumber:
805349419
Package size:
1 st
Min. order quantity is:
1 st
Aktivering
Solenoid
Antal väger/positioner
2/2
Flödeshastighet nominell LMin
50 lpm
Föroreningsgrad max.
20/18/14 - ISO 4406
Gänga
G 1/2 BSP
Kontakt typ
DIN 43650 Form A
Modell kod
EVK06/C5-12D-A-DG-1/2
Märke namn
Danfoss
Oljeviskositet rekommanderad
12 - 54 cSt
Packningsmaterial
NBR
Spänning
12 V
Ström
DC
Temperatur max.
+100 °C
Temperatur min.
-40 °C
Tillverkningsmaterial
Aluminium
Tryck max.
210 bar
Package size
1 st
Barcode
451275
Gross weight
0,71 Kg
Net weight
0,71 Kg
Country of origin
Intrastat code
84812010
This is a 2-way, 2-position, poppet type, direct acting, normally closed, bi-directional solenoid valve. In its de-energized condition, flow is blocked in both directions. Leakage in either direction is kept to a minimum due to the poppet design. When energized, flow can take place from port 2 to 1 and from 1 to 2.
These valves come standard with a push pin manual override. These valves can be used to hold loads in position or interrupt a pressure line where flow is expected to pass in both directions in the de-energized condition. They do not suffer from momentary opening due to shock pressures.
