Insert 1/2" - 1/2" BSP nut 45° Japanese

Insert 1/2" - 1/2" BSP nut 45° Japanese

Insert 1/2" - 1/2" BSP nut 45° Japanese

Long elbow insert with nut and BSP female thread. Japanese type.

Connection: BSP female thread in nut, with 30° cone face.

Sealing: Metal against metal (cone).

Partnumber:

4941-08-08

Package size:

1 st

Min. order quantity is:

1 st

Specifications
Dimensions and shipping

Angle

45 °

Brand Name

I.M.M Hydraulics

Dimension C

40 mm

Dimension E

27 mm

Dimension H

20 mm

Dimension T

G 1/2 "JIS-G

Hose coupling type

For separate ferrule

Hose size

1/2 "

Material

Steel

Model code

1030S-08-08

Surface treatment

Electro-galvanized / White chromatized

Thread

1/2 "JIS/G

Torque tightening

59 Nm

Package size

1 st

Barcode

226195

Gross weight

0,11 Kg

Net weight

0,11 Kg

Country of origin

ITA

Intrastat code

73269098

Product information

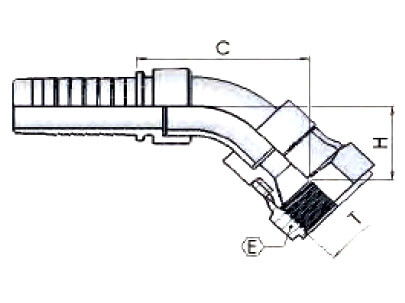

Measure sketch

Long elbow insert with nut and BSP female thread. Japanese type.

Connection: BSP female thread in nut, with 30° cone face.

Sealing: Metal against metal (cone).

Insert 1/2" - 1/2" BSP nut 45° Japanese
