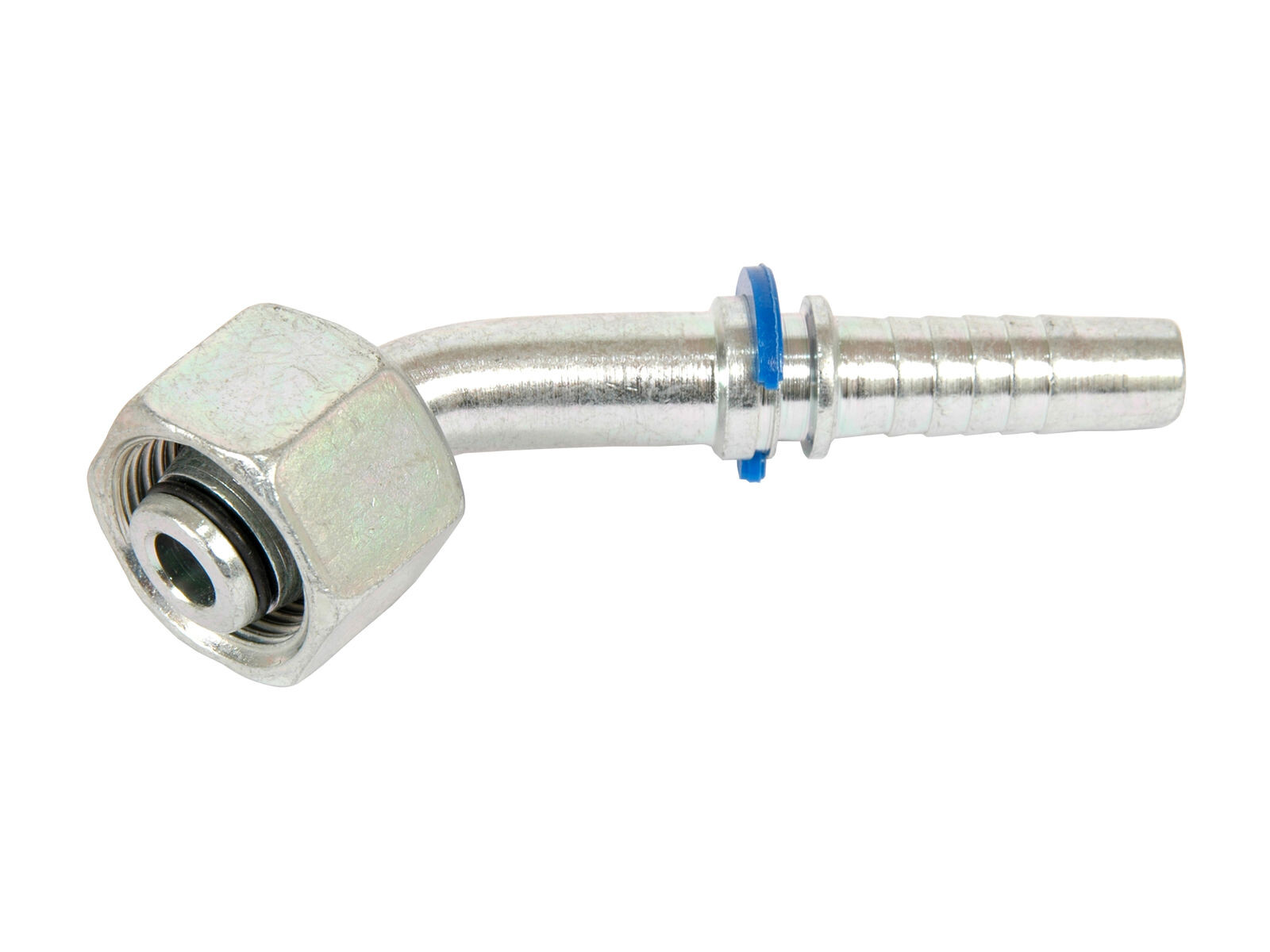

Insert 3/8" - M20x1.5 nut 12S 45°
Insert with MM female thread in nut and 24° cone face with o-ring.
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
Varenummer:
4842-12-06
Pakke str.:
100 st
Min. bestillingsenhed er:
1 st
C
53 mm
Diameter rör
12 mm
E
24 mm
H
18 mm
Modell kod
0284-06-20
Märke namn
I.M.M Hydraulics
Packningsmaterial
NBR
Serie
S
Slangdimension
3/8 "
Slangkopplingstyp
For separate ferrule
T
M20x1,5
Temperatur max.
+100 °C
Temperatur min.
-30 °C
Tillverkningsmaterial
Steel
Vinkel
45 °
Ytskiktbehandling
Electro-galvanized / White chromatized
Åtdragning moment
53 Nm
Pakke str.
100 st
Stregkode
143227
Brutto vægt
0,07 Kg
Netto vægt
0,07 Kg
Oprindelsesland
ITA
Intrastat varekode
73269098
Insert with MM female thread in nut and 24° cone face with o-ring.
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
