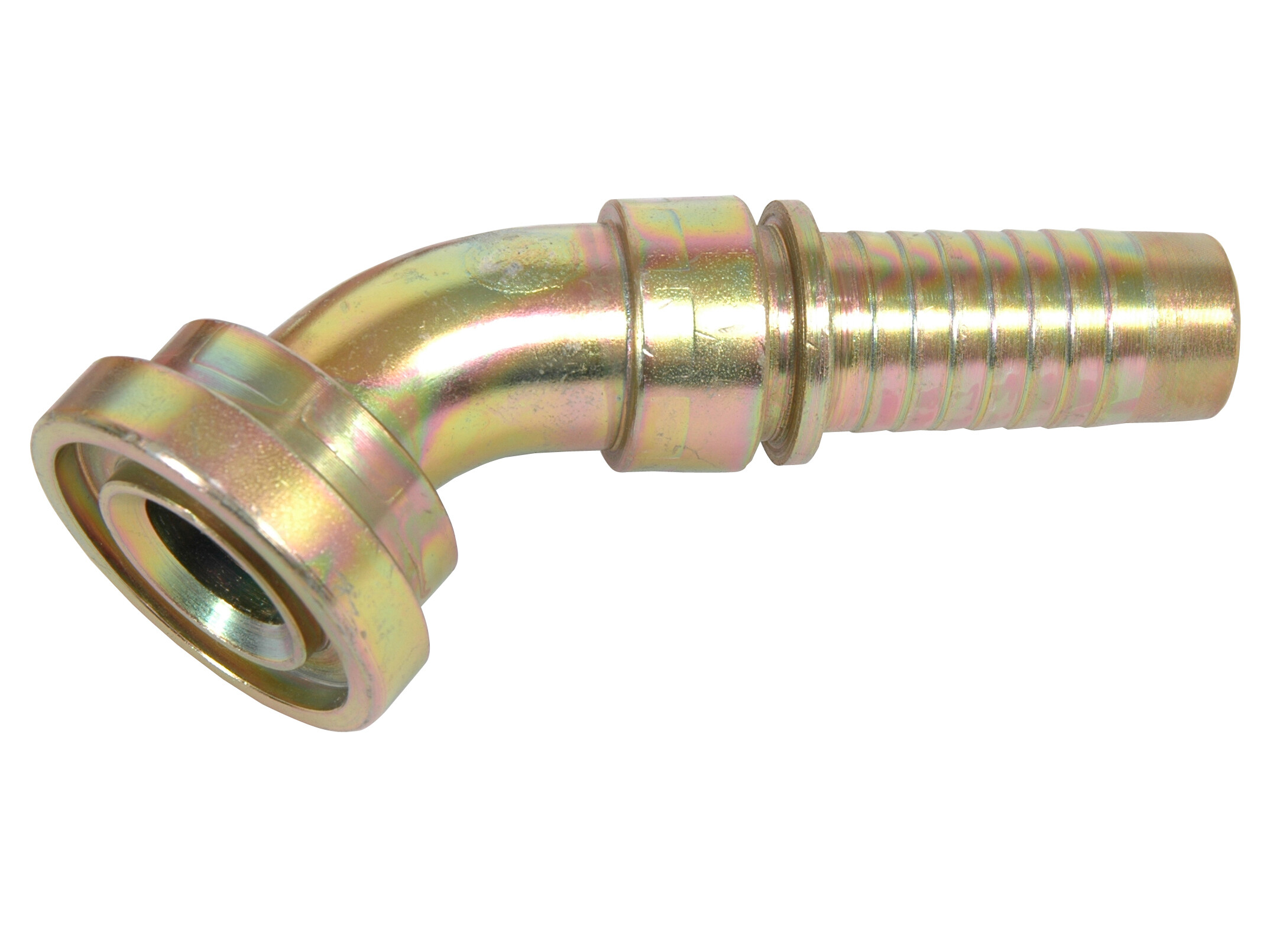

Insert 5/8" - ø34 Komatsu 45°

Insert 5/8" - ø34 Komatsu 45°

Insert 5/8" - ø34 Komatsu 45°

Heavy series insert with flange for KOMATSU machines. To be used with split-flanges.

Sealing: Metal against o-ring.

Partnumber:

4341-10-10

Package size:

25 st

Min. order quantity is:

1 st

Specifications
Dimensions and shipping

Angle

45 °

Diameter flange

34 mm

Dimension C

23 mm

Dimension H

54 mm

Dimension T

34 mm

Flange

n.a. "

Flange SAE/DIN

3000 PSI

Hose coupling type

For separate ferrule

Hose size

5/8 "

Model code

1150-10-10

O-ring

21,82x3,53 mm

Shore

90

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Package size

25 st

Barcode

142698

Gross weight

0,12 Kg

Net weight

0,12 Kg

Country of origin

ITA

Intrastat code

73269098

Product information

Heavy series insert with flange for KOMATSU machines. To be used with split-flanges.

Sealing: Metal against o-ring.
