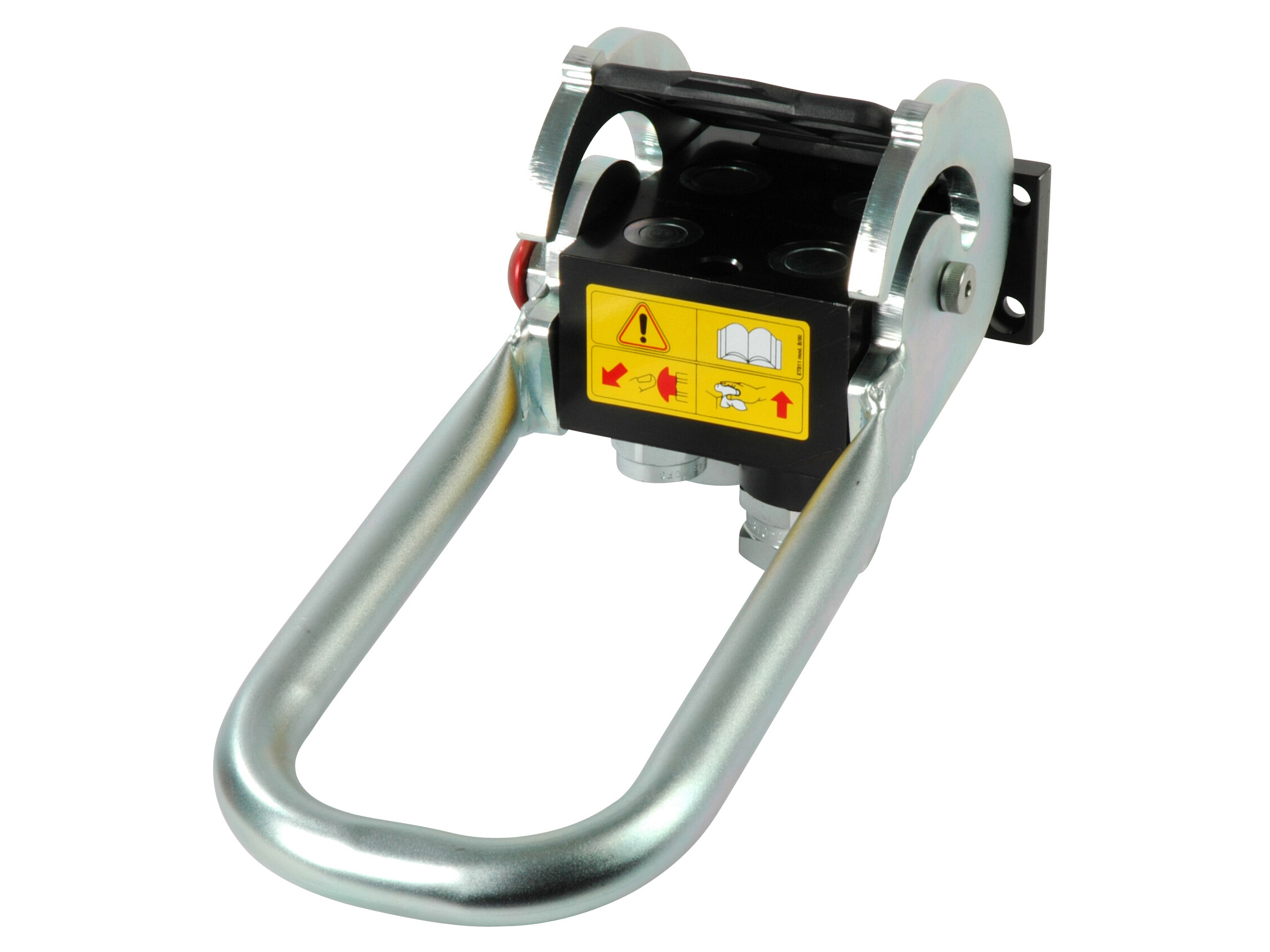

MultiFaster Fixed part, 2P510 4 outlet 2x3/4 , 2x1/2

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.

Partnumber:
2P510-4-AFC

Package size:
2 st

Min. order quantity is:
1 st
Kopplingspatron MultiFaster Hona 2P 3/4'' 3/4'' BSP
Partnumber: KIT2FNB34GASF
Handtag MultiFaster P510
Partnumber: KITLP510
SÄKERHETSLÅS SP5
Partnumber: KITSP5S
Dammskydd MultiFaster P506/P508/P510
Partnumber: KITTAP5
Antal anslutningar
4

Flödeshastighet nominell LMin
70, 125 lpm

Gänga
G 1/2, G 3/4 BSP

Modell
2P510

Modell kod
2P510-4-AFC

Märke namn
Faster

Packningsmaterial
NBR, Polyurethane

Rostbeständighet
500 hours salt spray ISO 9227

Serie
PH510

Storlek
1/2, 3/4 "

Temperatur max.
+100 °C

Temperatur min.
-25 °C

Tryck max.
250 bar

Tryck spräng min.
1000 bar

Ytskiktbehandling
Zinc coating (CR III)
Package size
2 st

Barcode
189701

Gross weight
5,14 Kg

Net weight
5,14 Kg

Country of origin
ITA

Intrastat code
84812010

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
