1.1/2" Coupling - 1.1/2" BSP female - 90°
Connection: Internal thread with BSP O-ring with 60° taper.
Sealing: O-ring against the metal surface.
Partnumber:
24GSM24FBSPORX90
Package size:
1 st
Min. order quantity is:
1 st

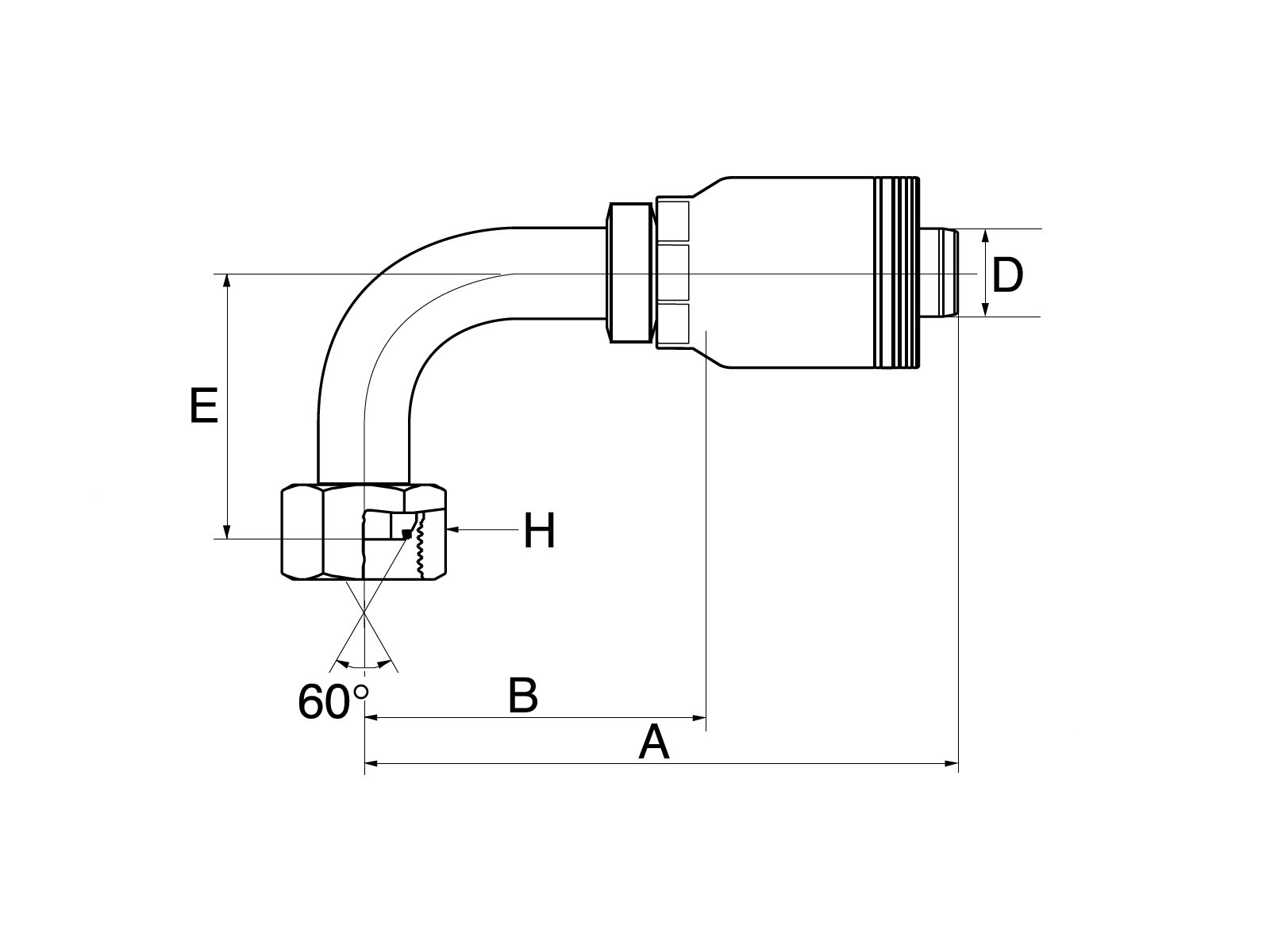

A
2226 mm
B
162,5 mm
D
1.1/2 BSP
E
100 mm
Gänga
G 1.1/2 BSP
H
55 mm
Modell kod
24GSM24FBSPORX90
Märke namn
Gates
REACH compliant
Yes
RoHs compliant
Yes
Rostbeständighet
500 hours salt spray ASTM B-117
Slangdimension
1.1/2 "
Slangkopplingstyp
With fixed ferrule
Tillverkningsmaterial
Steel
Tryck max.
350 bar
Vinkel
90 °
Ytskiktbehandling
TuffCoat™
Package size
1 st
Barcode
288057
Gross weight
1,60 Kg
Net weight
1,60 Kg
Country of origin
CZE
Intrastat code
73269098
Connection: Internal thread with BSP O-ring with 60° taper.
Sealing: O-ring against the metal surface.
