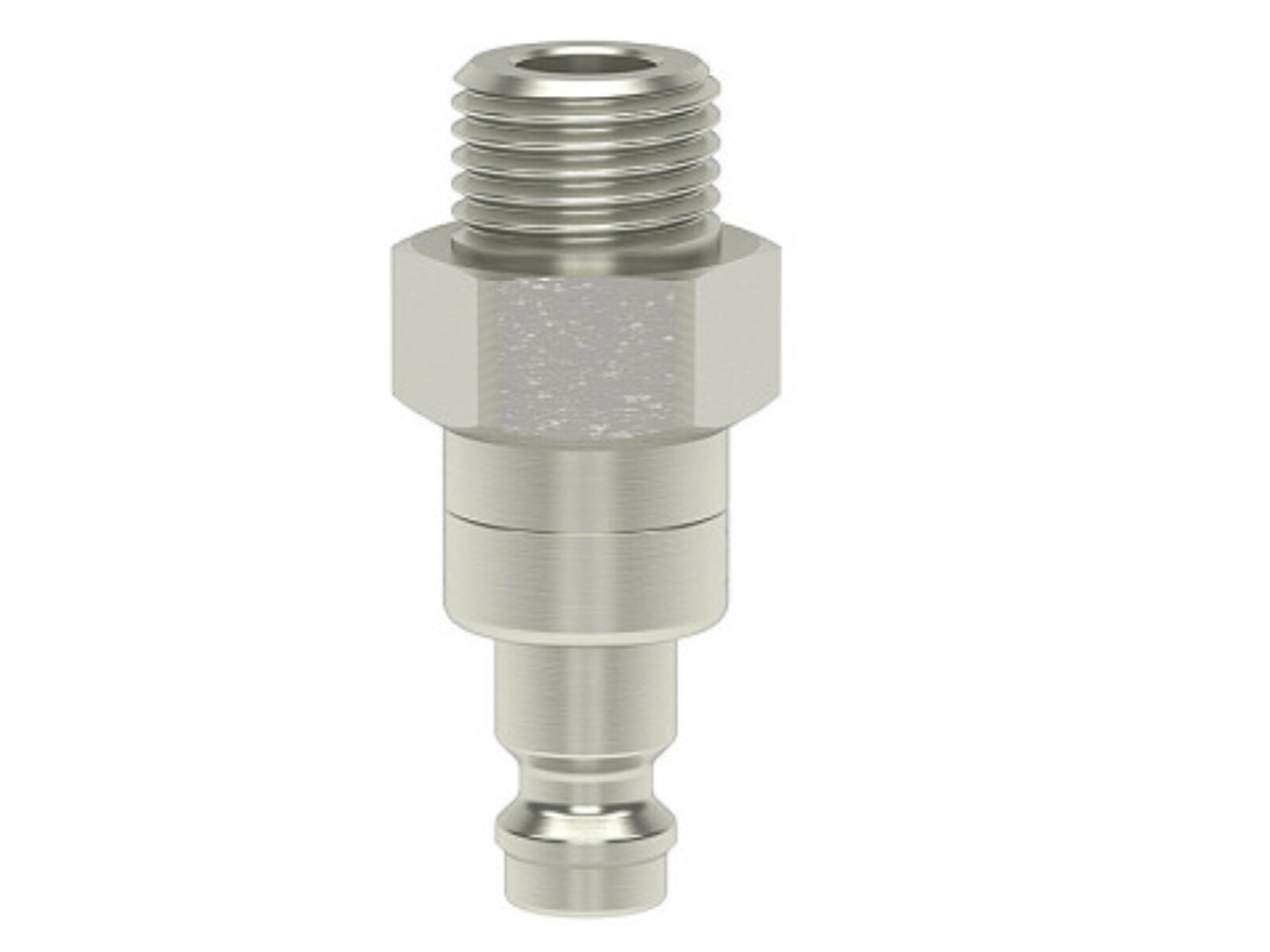

Snabbkoppling Typ 1600 Hane Inv-G1/8"

Industrial quick couplings_x000D_ Series ESI/1600 easy shutdown_x000D_ _x000D_ • High-quality, extremely robust one-handed quick couplings with high-quality sealing made of nickel-plated brass MS58_x000D_ • Collar version: protection for valve body_x000D_ • High flow rates with low pressure drop thanks to patented OptiFlow valve technology_x000D_ • Suitable for low vacuum with low coupling force compared to all other compatible products_x000D_ • For compressed air supply in industry and use of compressed air tools_x000D_ • Also replaceable with plug profile DN 7.2_x000D_ _x000D_ Material_x000D_ • Body, valve body: Brass MS 58 nickel-plated_x000D_ • Valve: Brass MS 58 smooth_x000D_ • Sleeve, plug: Hardened steel nickel-plated_x000D_ • Seals: NBR (other sealing material on request)_x000D_ • Springs: Stainless steel 1.4310 • Balls: Stainless steel 1.4052

Artikelnummer:
16405

Förpackningsstorlek:
10 st

Minsta beställningskvantitet:
1 st
Area of use
Air

Brand Name
Ludecke

DN
7.8 mm

Flow air nominal
2000 lpm

Flow rate nominal LMin
2000 lpm

Material
Brass

Model code
ESI 18 NIS

Pressure max.
35 bar

Pressure nominal
PN 35

Sealing material
NBR

Surface treatment
Nickel-plated

Temperature max.
+100 °C

Temperature min.
-20 °C

Thread ISO standard
ISO 228

Thread inner
G 1/8 BSP
Package size
10 st

Barcode
187583

Gross weight
Kg

Net weight
Kg

Country of origin
deu
