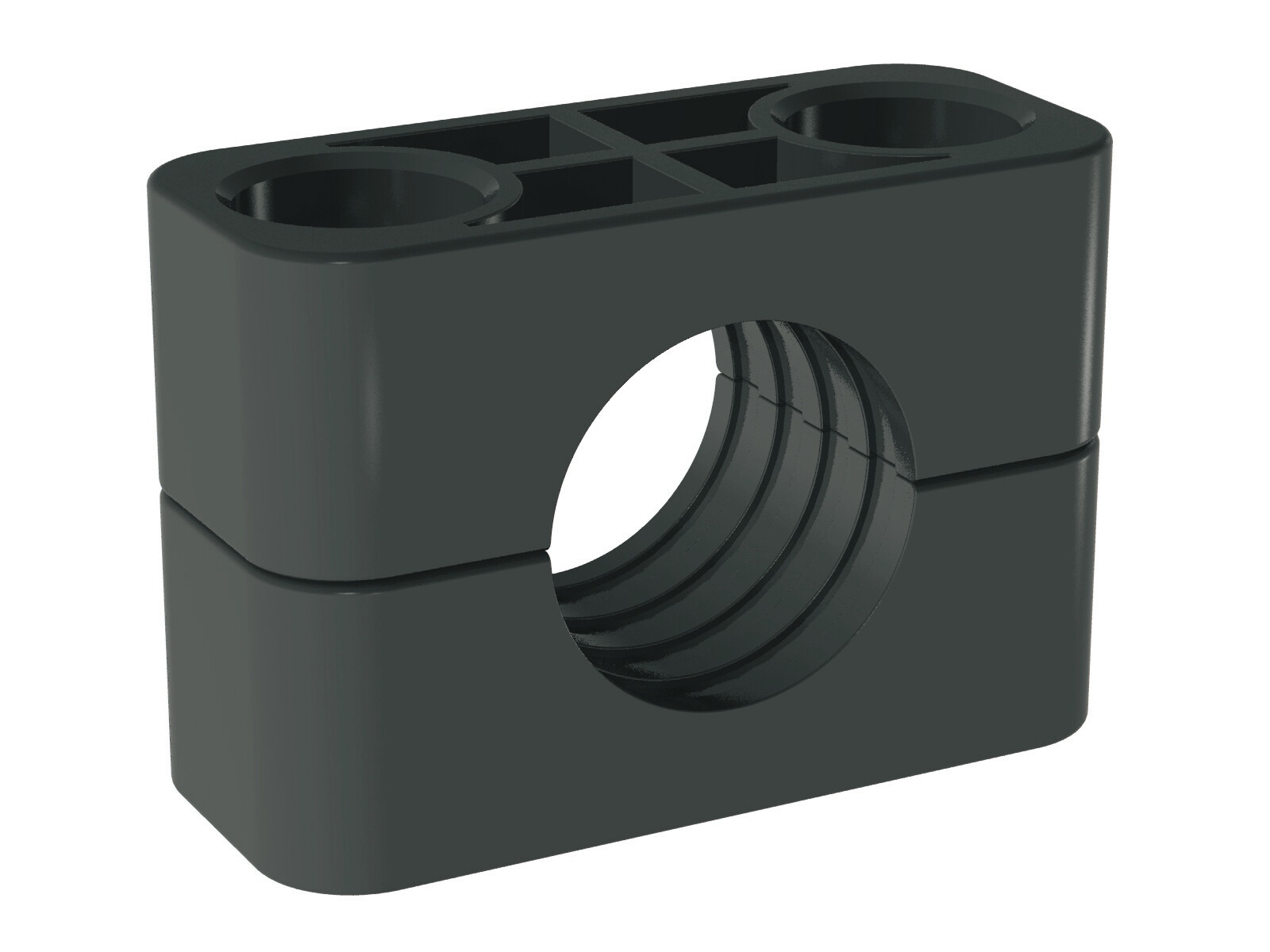

Pipe clamp body, standard series, single, Polyamide, black, profiled - SLK-PA

Pipe clamp body, standard series, single, Polyamide, black, profiled - SLK-PA

Pipe clamp body, standard series, single, Polyamide, black, profiled - SLK-PA

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe DIN size Brand Name Material
SLK110APA Clamp ø10 - Black PA - DIN 1 10 mm 1 Stauff Polyamide
SLK112APA Clamp ø12 - Black PA - DIN 1 12 mm 1 Stauff Polyamide
SLK214PA Clamp ø14 - Black PA - DIN 2 14 mm 2 Stauff Polyamide
SLK215PA Clamp ø15 - Black PA - DIN 2 15 mm 2 Stauff Polyamide
SLK216PA Clamp ø16 - Black PA - DIN 2 16 mm 2 Stauff Polyamide
SLK218PA Clamp ø18 - Black PA - DIN 2 18 mm 2 Stauff Polyamide
SLK320PA Clamp ø20 - Black PA - DIN 3 20 mm 3 Stauff Polyamide
SLK322PA Clamp ø22 - Black PA - DIN 3 22 mm 3 Stauff Polyamide
SLK325PA Clamp ø25 - Black PA - DIN 3 25 mm 3 Stauff Polyamide
SLK428PA Clamp ø28 - Black PA - DIN 4 28 mm 4 Stauff Polyamide
SLK430PA Clamp ø30 - Black PA - DIN 4 30 mm 4 Stauff Polyamide
SLK535PA Clamp ø35 - Black PA - DIN 5 35 mm 5 Stauff Polyamide
SLK538PA Clamp ø38 - Black PA - DIN 5 38 mm 5 Stauff Polyamide
SLK542PA Clamp ø42 - Black PA - DIN 5 42 mm 5 Stauff Polyamide
SLK7603PA Clamp ø60.3 - Black PA - DIN 7 60,3 mm 7 Stauff Polyamide
SLK7761PA Rörklamma Ø76.1mm, DIN3015-1 Lätta Serien, Polyamid 76,1 mm 7 Stauff Polyamide
Brand Name
Stauff
Color
Black
Material
Polyamide
Number of bolts
2
Standard DIN
DIN 3015 part 1
Temperature max.
+120
Temperature min.
-40
Torque tightening
10
Type
Profiled
Width
30

Pipe clamp body, standard series, single, Polyamide, black, profiled - SLK-PA
