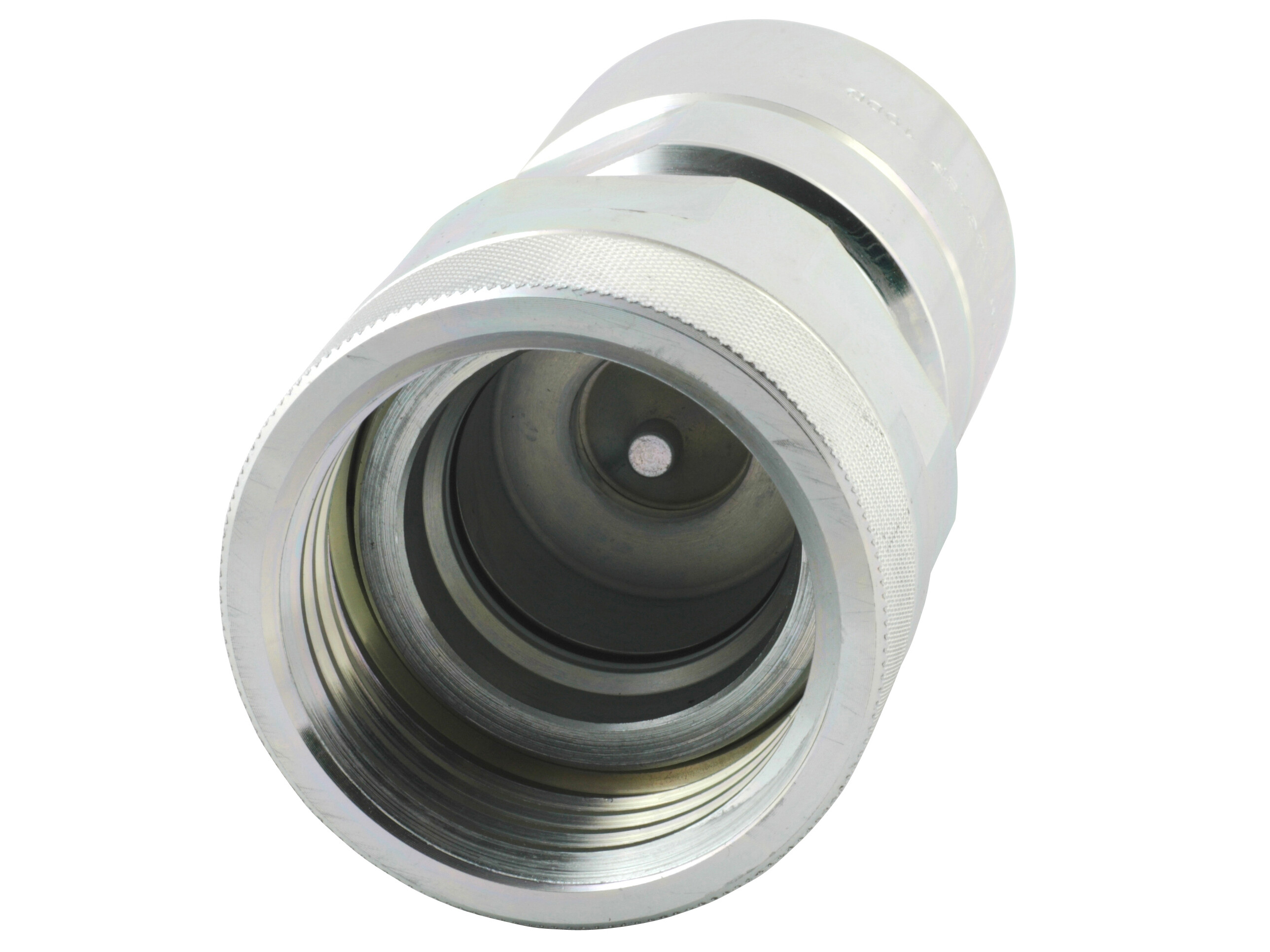

Screw coupling female VVS - DN06 - 1/4"BSP
Connection system: screw-on.
Pressure range up to 800 bar.
Disconnection system: screw-on
Shut-off system: poppet valve
Connectability: both male and female couplings under pressure.
Partnumber:
VVS14GASF
Package size:
30 pcs
Min. order quantity is:
1 pcs
A
G 1/4 BSP
B
68 mm
Brand Name
Faster
Connection
Screw
Corrosion resistance
500 hours salt spray ISO 9227
D
30 mm
DN
6.3 mm
Flow Rate
8 lpm
Flow rate nominal LMin
8 lpm
Hexagon
22 mm
ISO size
6.3
Material
Steel
Model code
VVS 14 GAS F
Pressure burst min.
2400 bar
Pressure max.
800 bar
Sealing material
NBR
Size
6.3 mm
Size
1/4 "
Size nominal
04
Spillage
0,4 ml
Surface treatment
MATE 500 (CrIII)
Temperature max.
+125 °C
Temperature min.
-25 °C
Thread inner
G 1/4 BSP
Valve type
Poppet
Working Pressure
800 bar
Working Pressure
80 MPa
X1
22 mm
Package size
30 pcs
Barcode
189867
Gross weight
0,20 Kg
Net weight
0,20 Kg
Country of origin
ITA
Intrastat code
84812010
Connection system: screw-on.
Pressure range up to 800 bar.
Disconnection system: screw-on
Shut-off system: poppet valve
Connectability: both male and female couplings under pressure.
