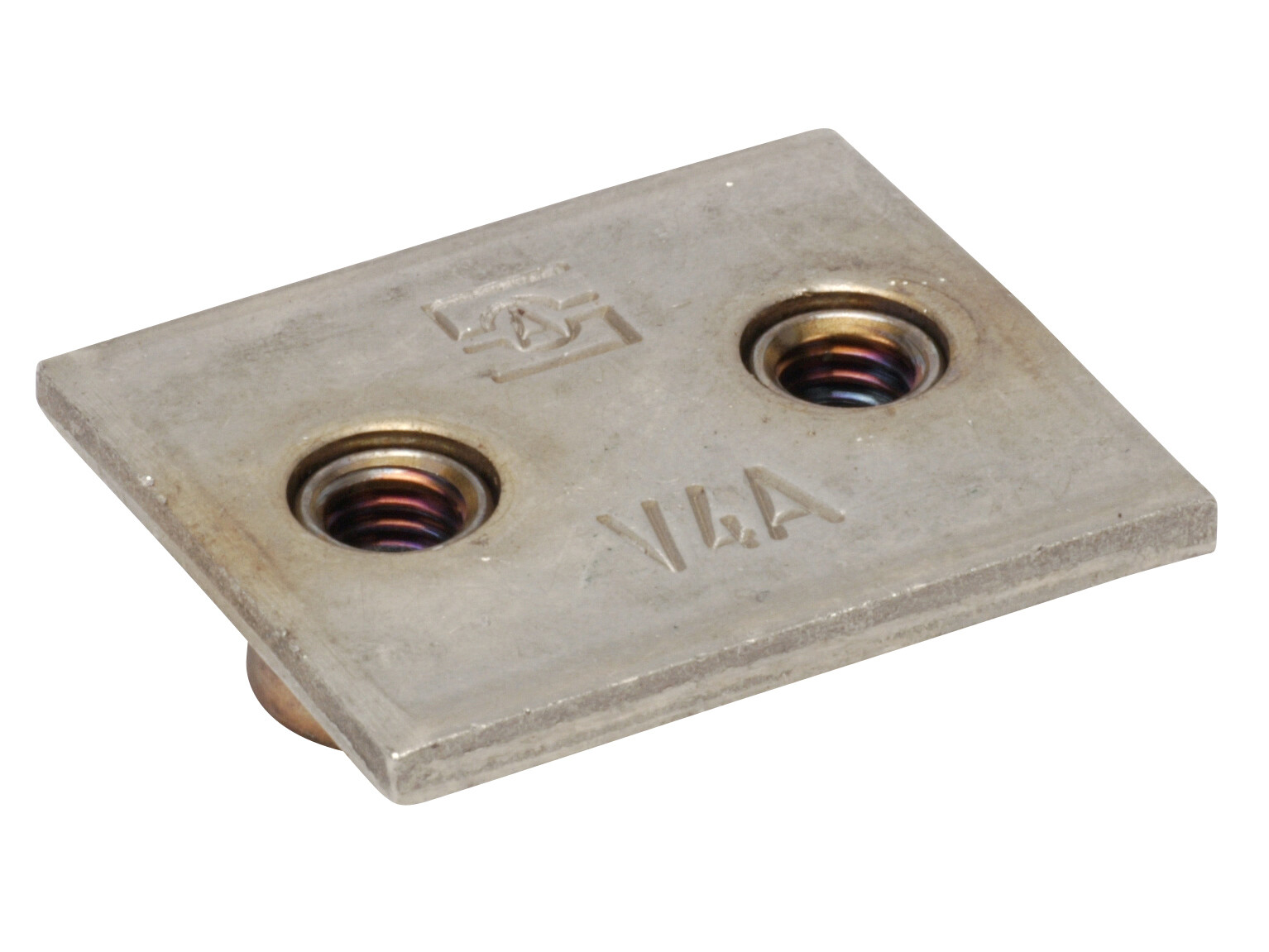

Weld plate - DIN 0-1 - Stainless
Single weld plate for mounting a pipe clamp to a welded structure. The plate provides an M6 threaded connection point for the clamp bolt and a stable base that can be welded to machine frames, brackets, or support structures.
Built to the DIN 3015 Part 1 standard series in size 1. The stainless-steel material quality 1.4571 (AISI 316Ti) supports use where corrosion resistance is required.
Typical Applications
- Weld-on mounting point for hydraulic pipe and tube clamp assemblies
- Pipe and hose routing on welded frames and support structures
Partnumber:
SP1A-SY
Package size:
25 pcs
Min. order quantity is:
1 pcs
B
30 mm
Brand Name
Stauff
D
12 mm
DIN size
1
G
M6
Group Stauff
1A
H
6,5 mm
L1
36 mm
L2
20 mm
Length
36 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
SP-1A-M-W5
Number of clamps
1
S
3 mm
Standard DIN
DIN 3015 part 1
Thread
M6
Width
30 mm
Package size
25 pcs
Barcode
212839
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
DEU
Intrastat code
39259010
Single weld plate for mounting a pipe clamp to a welded structure. The plate provides an M6 threaded connection point for the clamp bolt and a stable base that can be welded to machine frames, brackets, or support structures.
Built to the DIN 3015 Part 1 standard series in size 1. The stainless-steel material quality 1.4571 (AISI 316Ti) supports use where corrosion resistance is required.
Typical Applications
- Weld-on mounting point for hydraulic pipe and tube clamp assemblies
- Pipe and hose routing on welded frames and support structures
