Adaptor G 1/4, WD w.metal cap M12,65x1,5
Test adapter used as a service interface for measuring or monitoring hydraulic pressure. The G 1/4 BSP outer thread connects to the port, while the S12,65x1,5 connection thread provides the test-point interface.
Built with an NBR seal and a zinc-nickel plated surface treatment. Rated for working pressures up to 630 bar and a temperature range of -20 to +100 °C. The hex size and overall dimensions support correct tool selection and space planning.
Typical Applications
- Hydraulic pressure measurement and diagnostics via a dedicated test-point interface
- Commissioning and troubleshooting of hydraulic circuits where a G 1/4 BSP test port is provided
Partnumber:
SKK12-G1/4-PC
Package size:
1
Min. order quantity is:
1
Brand Name
Stauff

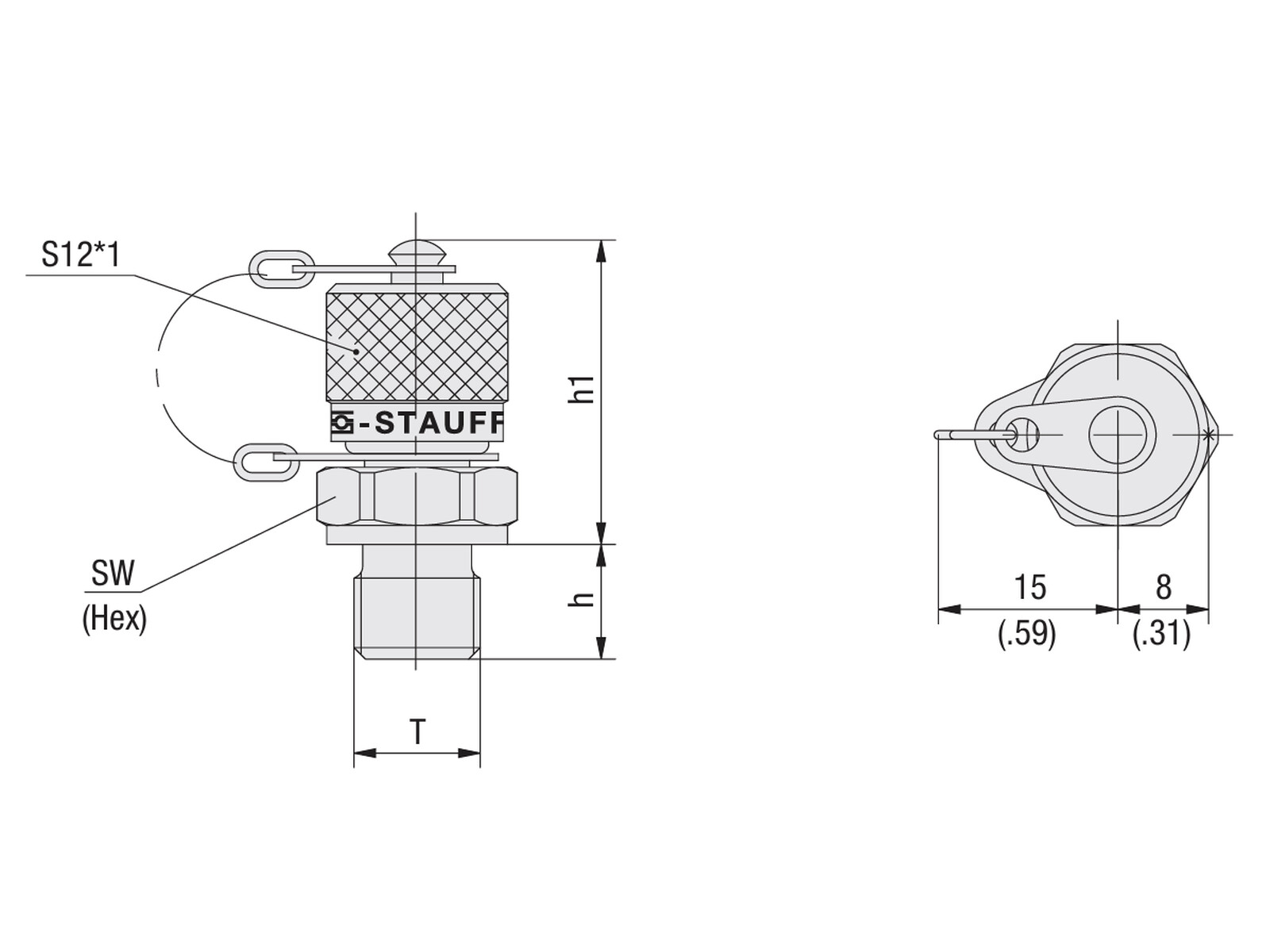

Hexagon
19 mm
Material
Steel
Model code
SKK-12-G1/4-B-C-W3
Pressure max.
630 bar
SW
19 mm
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
T
G 1/4 BSP
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread outer
G 1/4 BSP
Thread outer
G 1/4 BSP
Thread outer metric
M12,65x1,5
Torque tightening
45 Nm
h1
31 mm
h2
12 mm
Pakke str.
1
Stregkode
212618
Brutto vægt
0,08 Kg
Netto vægt
0,08 Kg
Oprindelsesland
DEU
Intrastat varekode
84812010
Test adapter used as a service interface for measuring or monitoring hydraulic pressure. The G 1/4 BSP outer thread connects to the port, while the S12,65x1,5 connection thread provides the test-point interface.
Built with an NBR seal and a zinc-nickel plated surface treatment. Rated for working pressures up to 630 bar and a temperature range of -20 to +100 °C. The hex size and overall dimensions support correct tool selection and space planning.
Typical Applications
- Hydraulic pressure measurement and diagnostics via a dedicated test-point interface
- Commissioning and troubleshooting of hydraulic circuits where a G 1/4 BSP test port is provided
