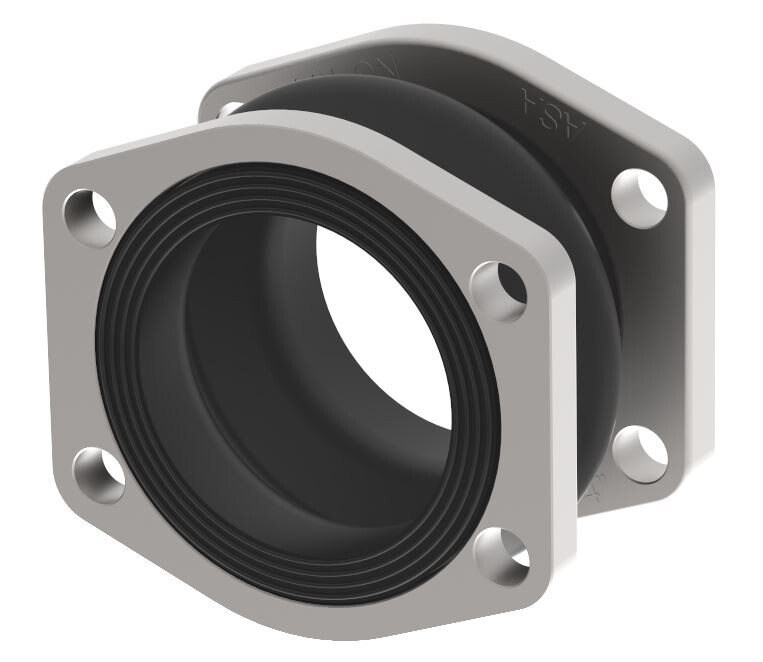

Compensator K16S-40 Flanges SAE 1 1/2 3000 PSI
Compensator K16S-40 Flanges SAE 1 1/2 3000 PSI
Partnumber:
SDKSS040
Package size:
1
Min. order quantity is:
1

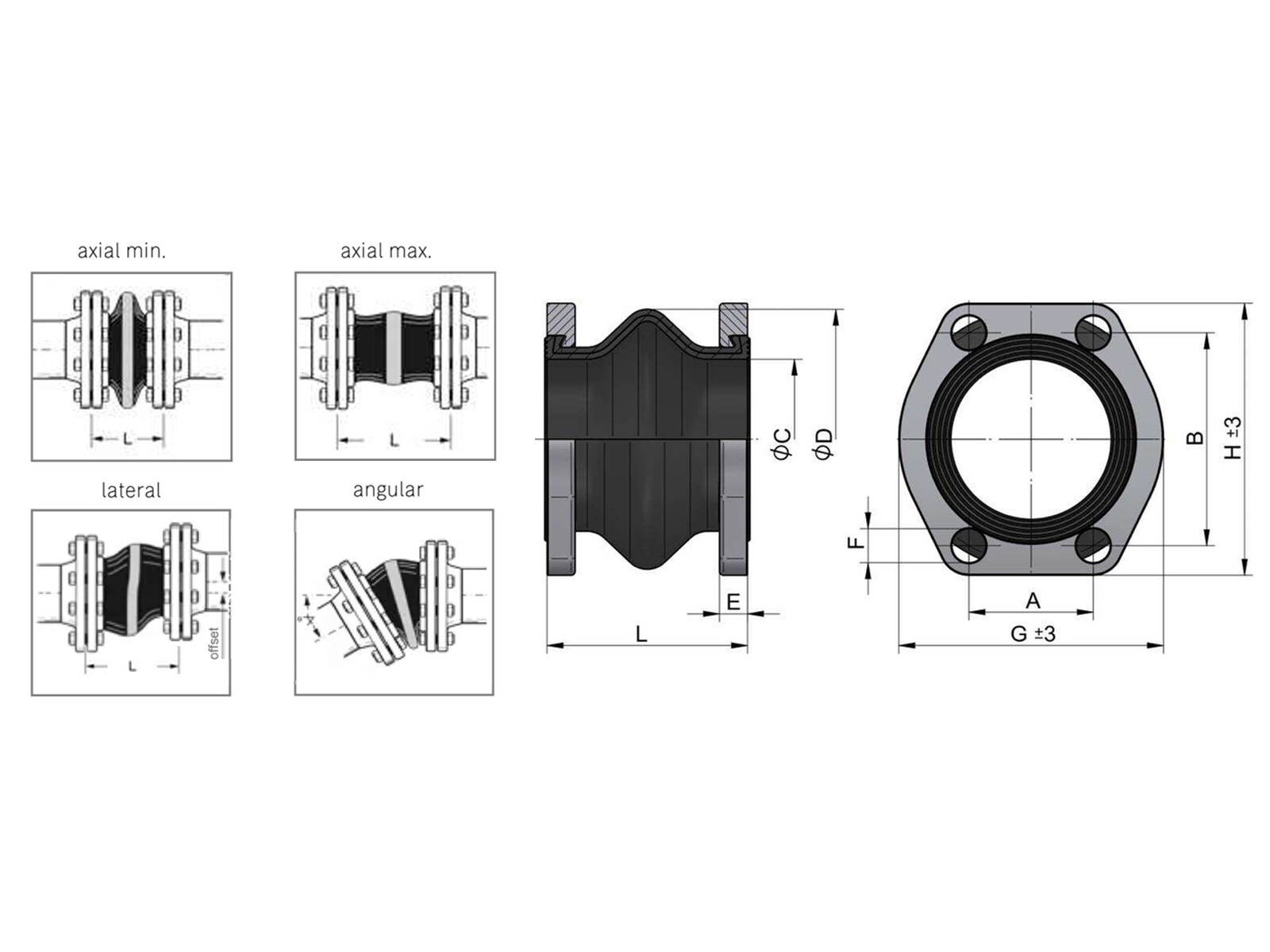

A
35,7 mm
Area of use
Diesel, Hydraulic oil
B
70 mm
C
40 mm
D
80 mm
E
13 mm
F
13 mm
Flange
1.1/2 "
G
83 mm
H
94 mm
Hardness rubber
70 shore ±5
L
100 mm
Material
CR/NR, NBR, Steel
Model code
SDKSS040
Movement limit angular
±5 °
Movement limit axial max
105 mm
Movement limit axial min.
95 mm
Movement limit lateral
±5 mm
Pressure max.
1.5 bar
Pressure min.
0.5 bar
Temperature max.
+80 °C
Temperature min.
-20 °C
Package size
1
Barcode
465618
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Intrastat code
730709100
Compensator K16S-40 Flanges SAE 1 1/2 3000 PSI
