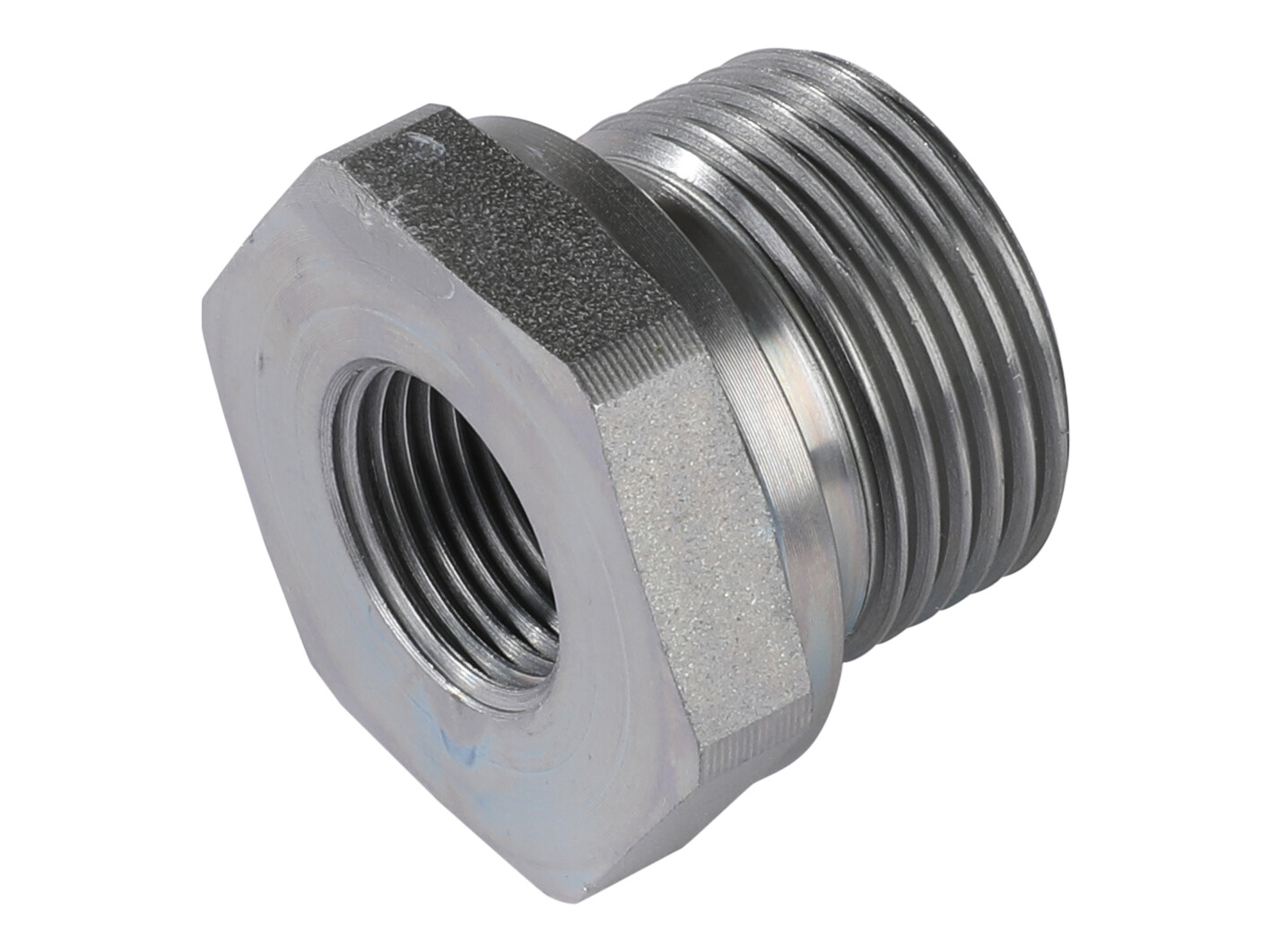

Reduction - 3/4"BSP x 3/8"BSP female - WD seal
Thread reducer for adapting between two Whitworth parallel pipe thread sizes in hydraulic and fluid power assemblies. The connection side with thread T1 is a G 3/4 male thread, and the opposite side with thread T2 is a G 3/8 female thread.
The joint seals using a profile sealing ring in NBR. Steel construction with zinc-nickel plated surface treatment and a maximum working pressure of 400 bar make it suitable where a compact reduction is needed while maintaining a BSPP interface.
- Thread T1: G 3/4 male (BSPP)
- Thread T2: G 3/8 female (BSPP)
- Seal type: Profile sealing ring
- Sealing material: NBR
- Material: Steel
- Surface treatment: Zinc-Nickel plated
- Max pressure: 400 bar
- Temperature range: -35 to +100
- Key dimensions: L1 26 mm, L2 12,5 mm, i1 16 mm, S1 32 mm
Typical Applications
- Adapting BSPP ports and lines where a reduction from G 3/4 to G 3/8 is required
- Hydraulic service and maintenance where existing BSPP components must be connected with different thread sizes
Partnumber:
RI-34-38ED
Package size:
1 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
0 mm
Hexagon
32 mm
L1
26 mm
L2
12,5 mm
Length
26 mm
Material
Steel
Model code
FI-RED-R3/4-WD-R3/8-B-W3
Pressure max.
400 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
32 mm
Safety factor
4
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T1
G 3/4 BSP
Thread T2
G 3/8 BSP
Thread inner
G 3/8 BSP
Thread outer
G 3/4 BSP
Total length
26 mm
Type
Short
i
16 mm
Package size
1 pcs
Barcode
130519
Gross weight
0,08 Kg
Net weight
0,08 Kg
Country of origin
DEU
Intrastat code
73071110
Thread reducer for adapting between two Whitworth parallel pipe thread sizes in hydraulic and fluid power assemblies. The connection side with thread T1 is a G 3/4 male thread, and the opposite side with thread T2 is a G 3/8 female thread.
The joint seals using a profile sealing ring in NBR. Steel construction with zinc-nickel plated surface treatment and a maximum working pressure of 400 bar make it suitable where a compact reduction is needed while maintaining a BSPP interface.
- Thread T1: G 3/4 male (BSPP)
- Thread T2: G 3/8 female (BSPP)
- Seal type: Profile sealing ring
- Sealing material: NBR
- Material: Steel
- Surface treatment: Zinc-Nickel plated
- Max pressure: 400 bar
- Temperature range: -35 to +100
- Key dimensions: L1 26 mm, L2 12,5 mm, i1 16 mm, S1 32 mm
Typical Applications
- Adapting BSPP ports and lines where a reduction from G 3/4 to G 3/8 is required
- Hydraulic service and maintenance where existing BSPP components must be connected with different thread sizes
