Screw coupling female RH - DN10 - M20x1.5 (12S)
Tube quick-coupling of screw-type.
Good for large oil-flows.
Partnumber:
RH08-1-S1220
Package size:
1 pcs
Min. order quantity is:
1 pcs

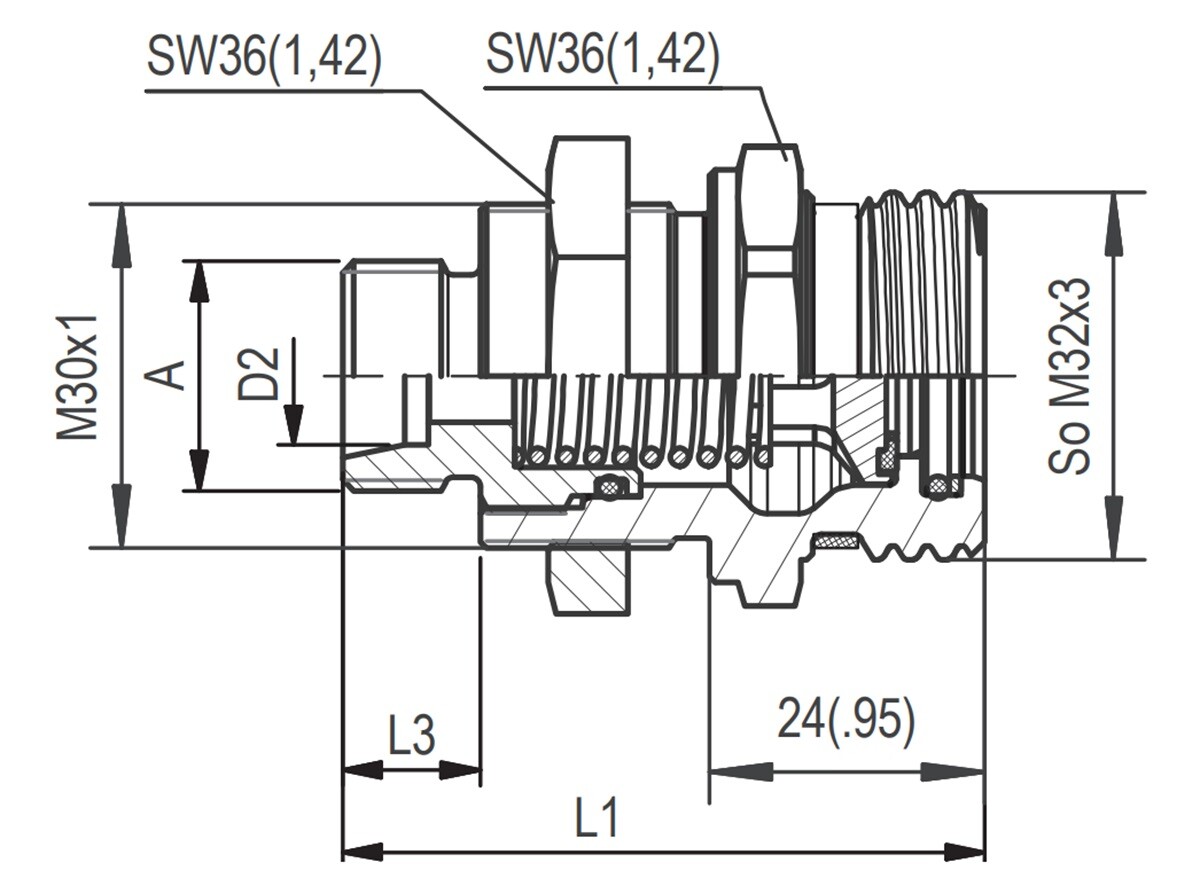

A
M20x1,5
Brand Name
Stauff
Connection
Screw
Diameter pipe
12 mm
Disconnection
Screw
Field of application
Construction Machinery
Flow rate nominal LMin
46 lpm
L1
56 mm
L3
12 mm
Material
Steel
Model code
QRC-RH-10-F-12S-S1-W3
Pressure burst min.
1350 bar
Pressure max. connected
420 bar
Pressurized connection
Allowed, max. 20 bar
Sealing material
NBR
Series
S
Size
3/8 "
Spillage
0,1 ml
Standard DIN
DIN 3861
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread outer metric
M20x1,5
ØD2
12 mm
Package size
1 pcs
Barcode
357171
Gross weight
0,22 Kg
Net weight
0,22 Kg
Country of origin
DEU
Intrastat code
84812010
Tube quick-coupling of screw-type.
Good for large oil-flows.
