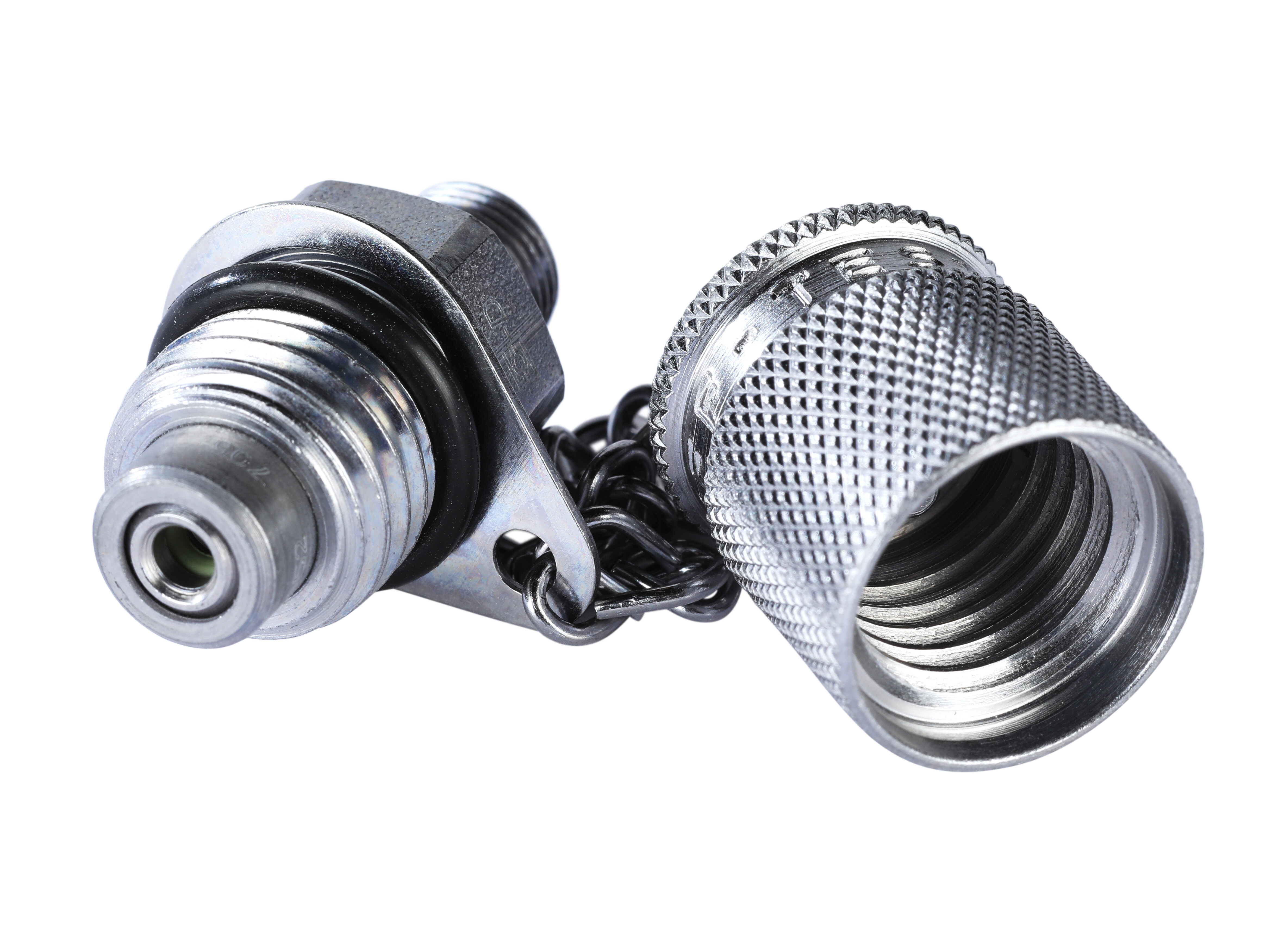

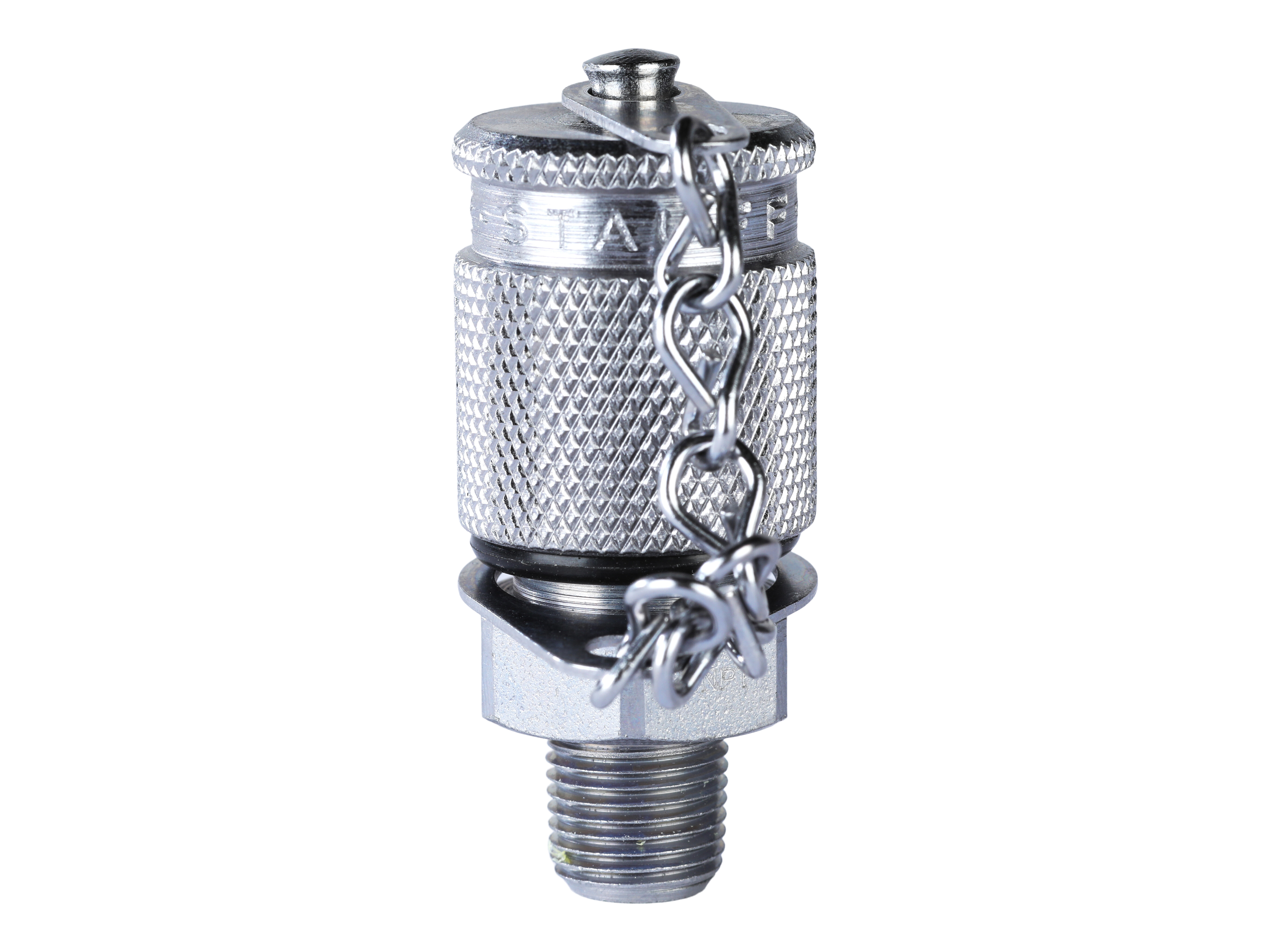

Test adaptor, 1/8 NPT
Testadaptors with NPT thread for pressure monitoring and venting. Well suited for hydraulic fluids and and other fluids based on mineral oil. Metal protection cap included. Can be connected under pressure without oil spillage. Max connecting pressure: 400 Bar.
Partnumber:
M01-1/8NPT
Package size:
1
Min. order quantity is:
1
Brand Name
Stauff
Hexagon
17 mm
Material
Steel
Model code
SMK-20-1/8NPT-D-W3
Pressure max.
400 bar
SW
17 mm
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread outer
1/8 NPT
h1
36 mm
h2
10 mm
Package size
1
Barcode
212416
Gross weight
0,07 Kg
Net weight
0,07 Kg
Country of origin
DEU
Intrastat code
84812010
Testadaptors with NPT thread for pressure monitoring and venting. Well suited for hydraulic fluids and and other fluids based on mineral oil. Metal protection cap included. Can be connected under pressure without oil spillage. Max connecting pressure: 400 Bar.
Note: Opening 3D files requires a program that supports the file format
