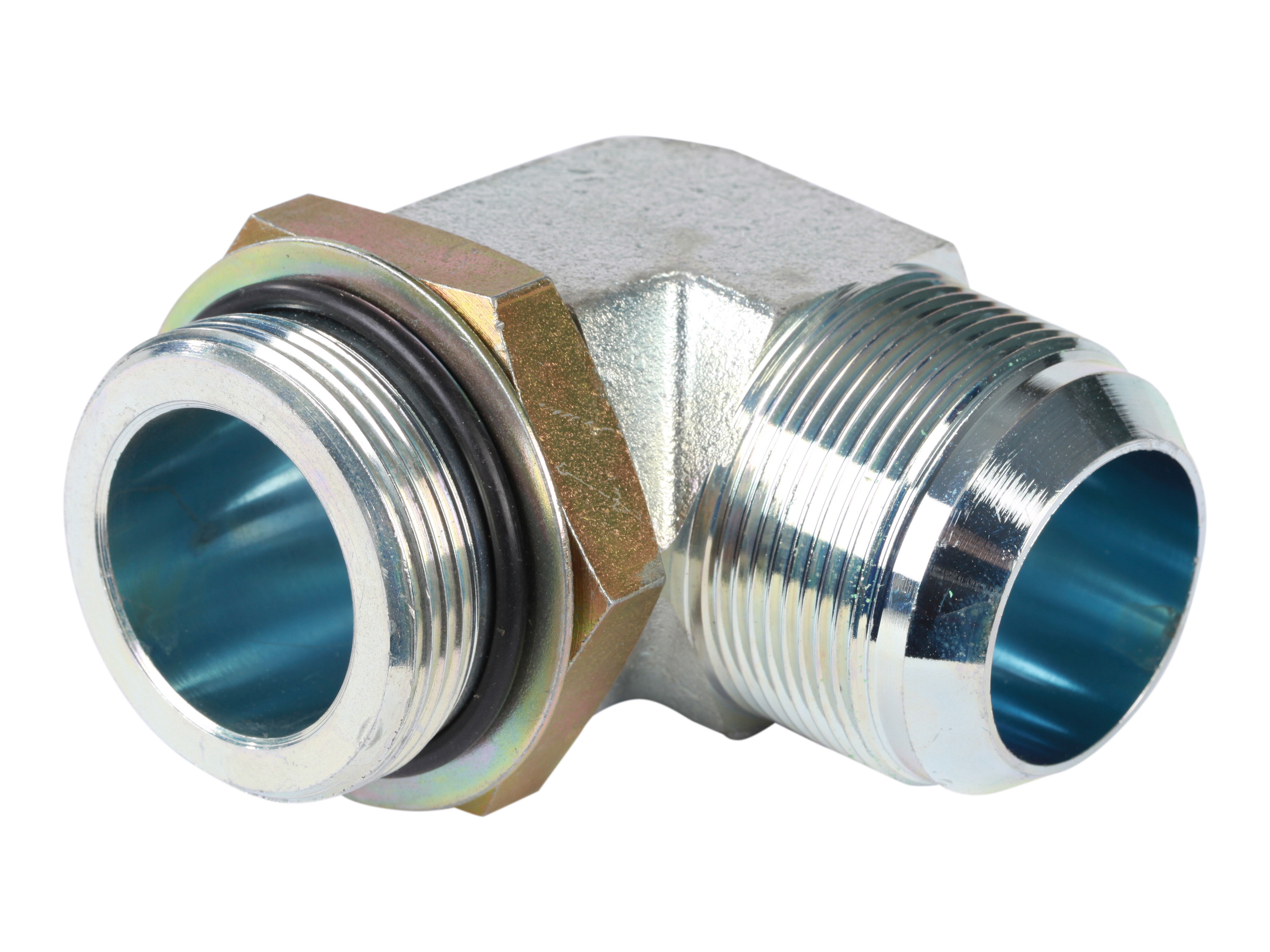

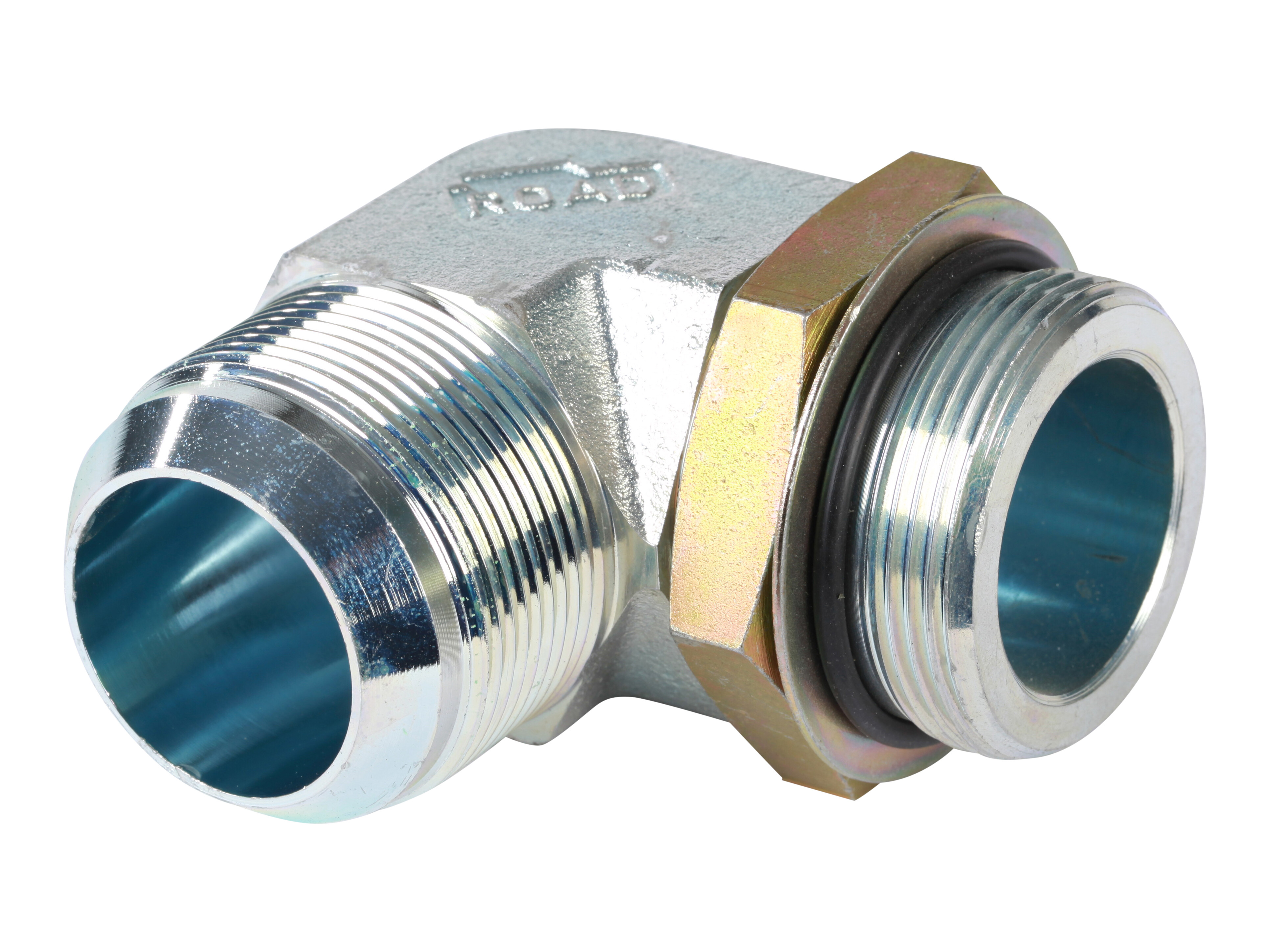

ADAPTER 90K UTV-JIC UTV-UNF
-
JIC 37° 90° directional basic connector
- External thread UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
JWEEU-24-24
Package size:
2 st
Min. order quantity is:
1 st
Angle
90 °
B
59 mm
Brand Name
FOR
C
61 mm
CH
55 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
38 mm
Dimension F
1.7/8-12 UNF
F
1.7/8-12 UNF
J
1.7/8-12 JIC
Material
Steel
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 11926
T
38 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.7/8-12 JIC
Thread outer
1.7/8-12 UNF
Package size
2 st
Barcode
134111
Gross weight
Kg
Net weight
Kg
Country of origin
ita
-
JIC 37° 90° directional basic connector
- External thread UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Note: Opening 3D files requires a program that supports the file format
