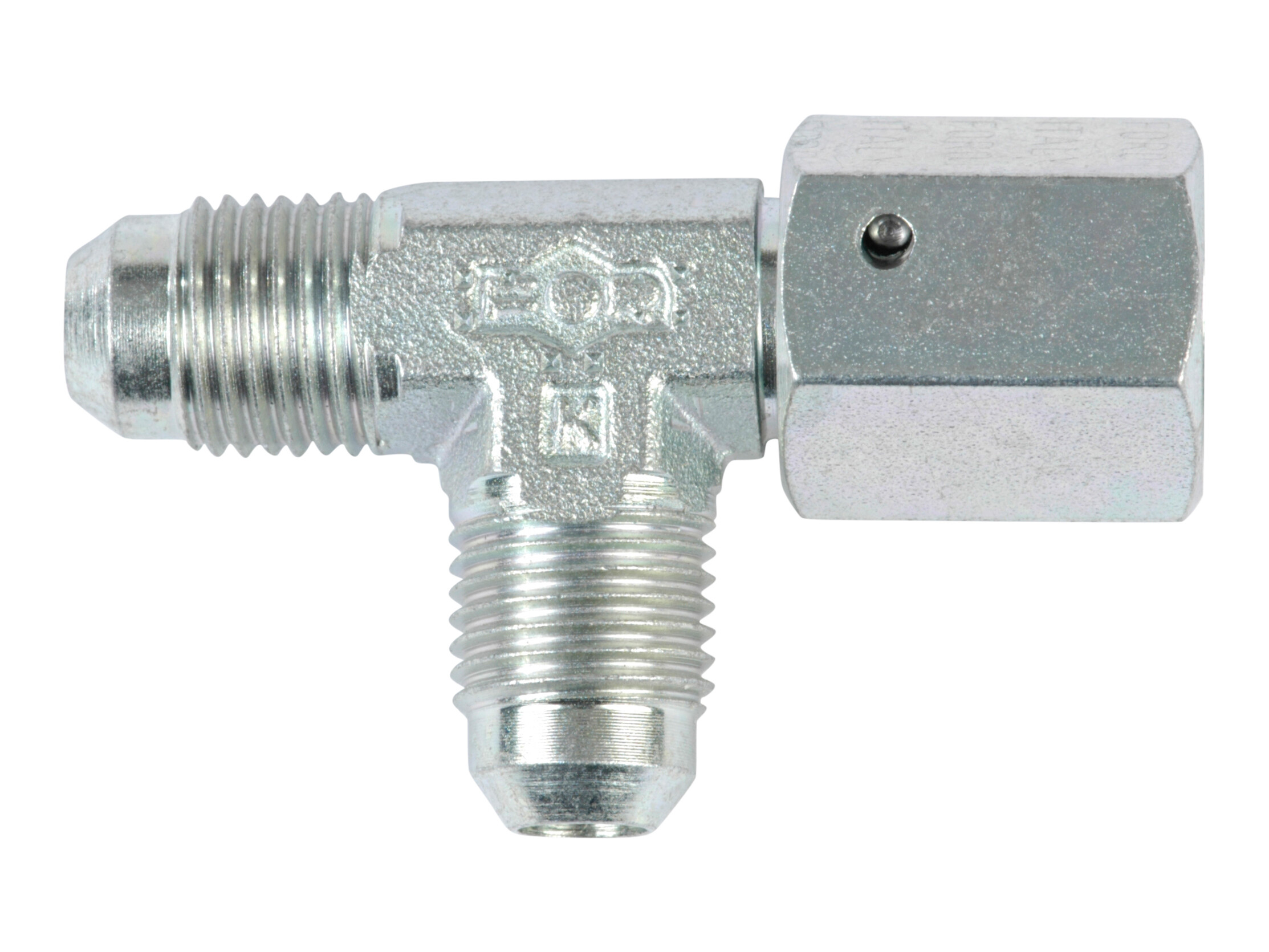

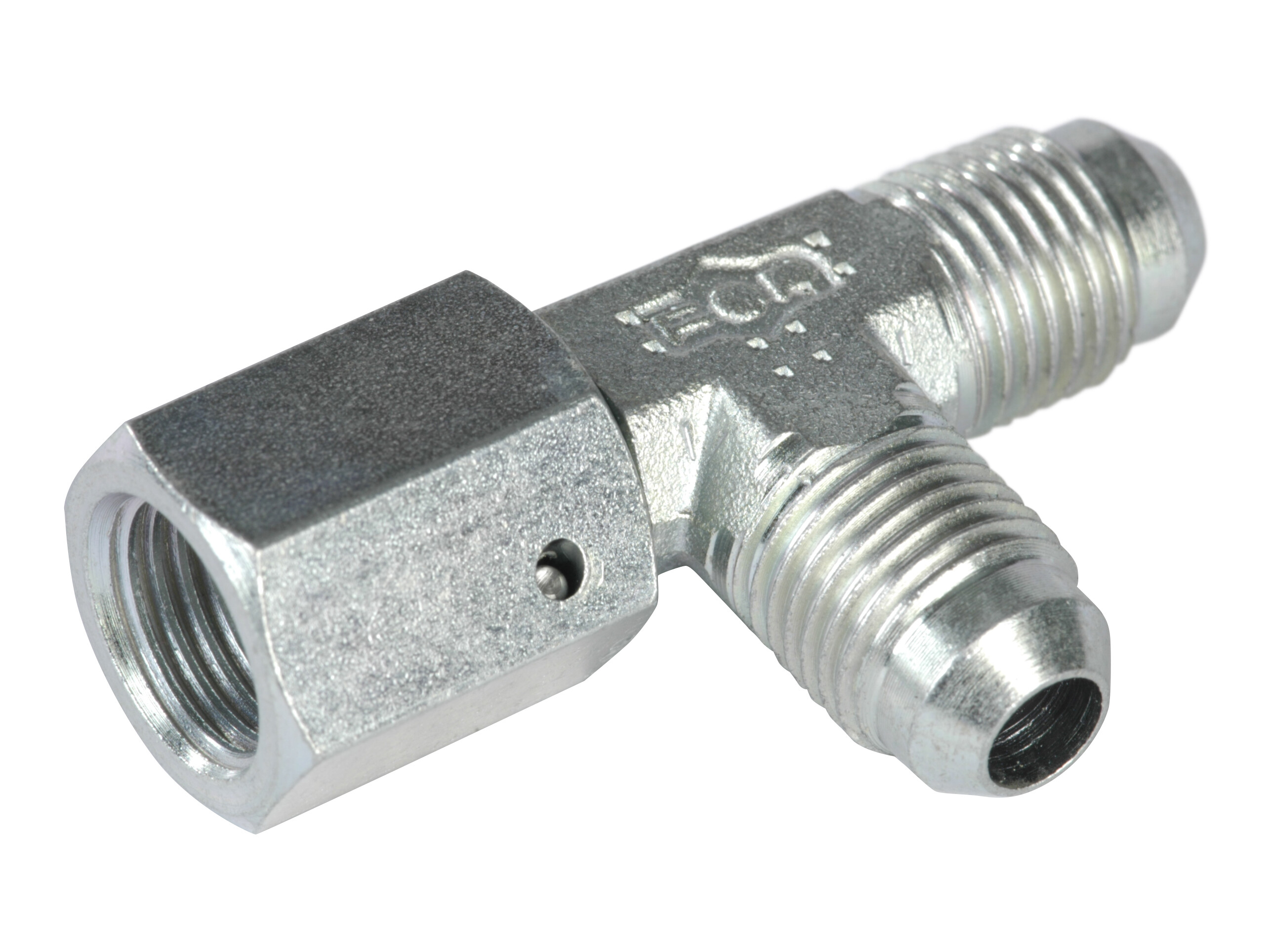

S680-08TG barrel Tee with nut
Barrel-style hydraulic tee with swivel nut for creating a compact T-connection in a JIC 37° flared tube system. The three ports are 1/2-20 JIC, allowing a run connection and a branch connection with the same JIC interface.
Designed for hydraulic lines where a branch line is taken off an existing JIC tube connection. Electro zinc plated surface treatment supports corrosion resistance in demanding environments.
Typical Applications
- Branch connection in hydraulic tube installations using JIC 37° flare fittings
- Compact tee connection points in hydraulic pipework and equipment assemblies
Partnumber:
JEVL-05-ST
Package size:
1 pcs
Min. order quantity is:
1 pcs
B
24 mm
B1
24 mm
Brand Name
FOR
C
29 mm
CH
17 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
8 mm
J
1/2-20 JIC
J1
1/2-20 JIC
J2
1/2-20 JIC
Material
Steel
Pressure max.
416 bar
Surface treatment
Electro-galvanized / White chromatized
T
8 mm
T1
8 mm
Thread inner
1/2-20 JIC
Thread outer
1/2-20 JIC
Package size
1 pcs
Barcode
233291
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
ITA
Intrastat code
73071110
Barrel-style hydraulic tee with swivel nut for creating a compact T-connection in a JIC 37° flared tube system. The three ports are 1/2-20 JIC, allowing a run connection and a branch connection with the same JIC interface.
Designed for hydraulic lines where a branch line is taken off an existing JIC tube connection. Electro zinc plated surface treatment supports corrosion resistance in demanding environments.
Typical Applications
- Branch connection in hydraulic tube installations using JIC 37° flare fittings
- Compact tee connection points in hydraulic pipework and equipment assemblies
