Screw coupling male HS - DN10 - M16x1.5 (10L) bulkhead
Standard DIN-coupling often used on mobile-cranes and within industry.
BSP female thread.
Can be connected by hand up till an approx. pressure of 50 bar.
Partnumber:
HS08-2-N1016
Package size:
1 pcs
Min. order quantity is:
1 pcs

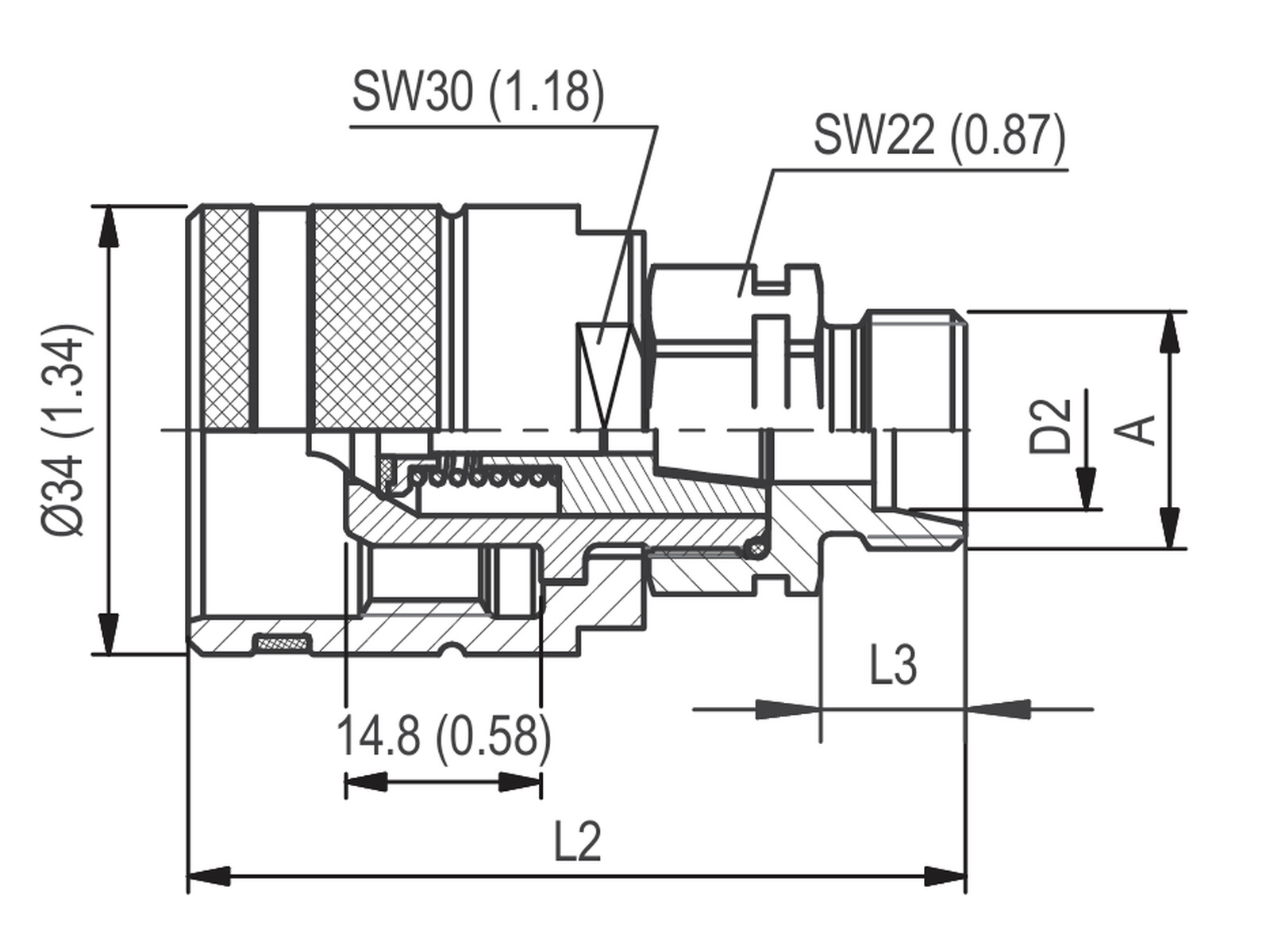

A
M16x1,5
Brand Name
Stauff
Connection
Screw
D2
10 mm
Diameter pipe
10 mm
Disconnection
Screw
Field of application
Construction Machinery
Flowrate nominal LMin
40 lpm
ISO size
10
L2
74 mm
L3
26 mm
Material
Steel
Model code
QRC-HS-10-M-10LB-B-W66
Pressure burst min.
1550 bar
Pressure max.
450 bar
Pressurized connection
Male Tip/Female Body up to 33% of the Working Pressure with Tools
SW
22, 30 mm
Sealing material
NBR
Series
L
Size
3/8 "
Spillage
1,3 ml
Standard ISO
ISO 14541
Surface treatment
Zinc coating (CR III)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread DIN standard
DIN 3861
Thread outer metric
M16x1,5
Pakke str.
1 pcs
Stregkode
356816
Brutto vægt
0,18 Kg
Netto vægt
0,18 Kg
Oprindelsesland
DEU
Intrastat varekode
84812010
Standard DIN-coupling often used on mobile-cranes and within industry.
BSP female thread.
Can be connected by hand up till an approx. pressure of 50 bar.
