Closed flange 1/2" SAE3000
Closed flange 1/2" SAE3000
Partnumber:
8341-08
Package size:
1
Min. order quantity is:
1

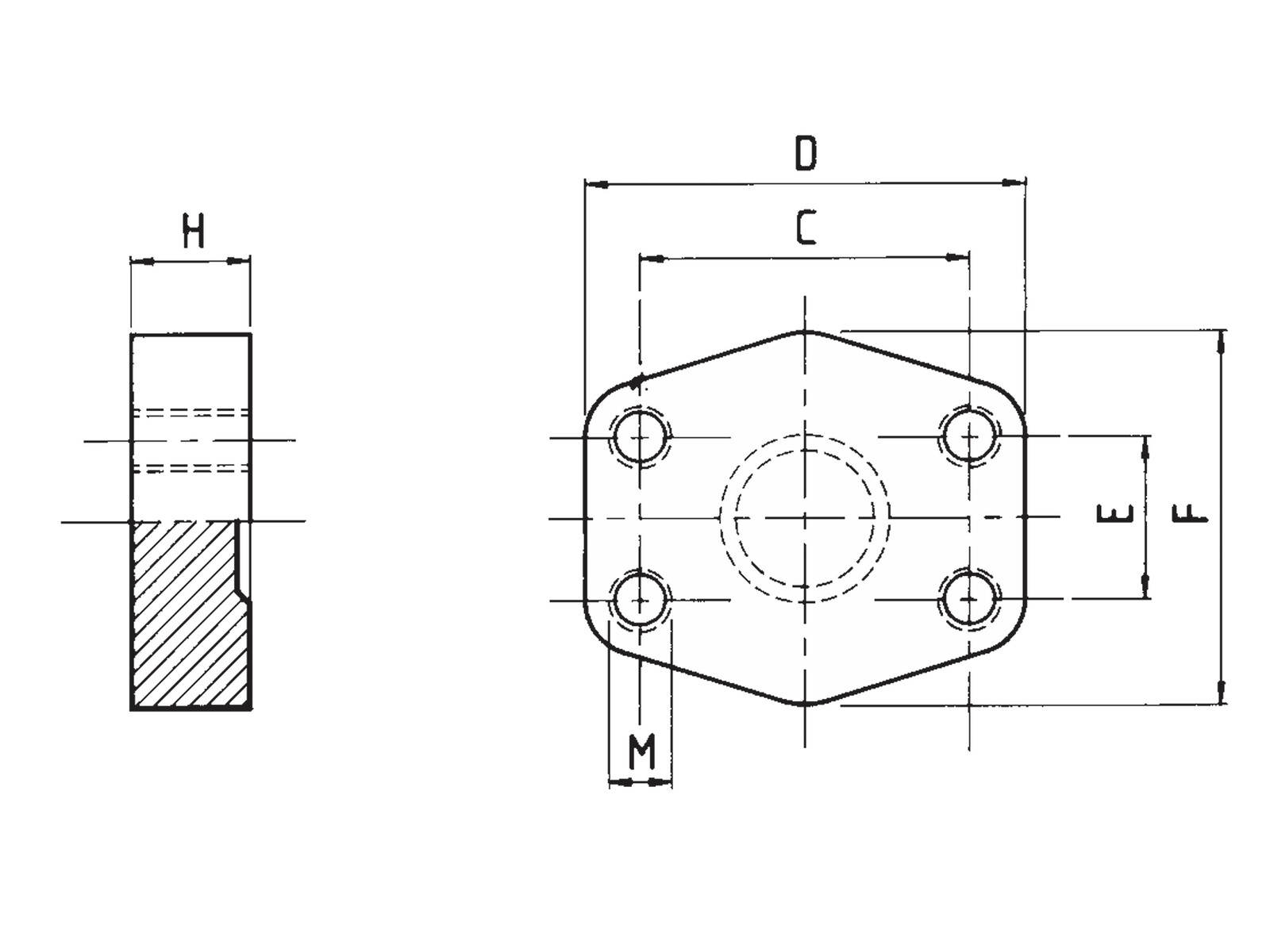

C
38,1 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
D
56 mm
Diameter flange
30.2 mm
E
17,5 mm
F
46 mm
Flange
1/2 "
Flange SAE/DIN
3000 PSI
H
16 mm
M
M8
Material
Steel
O-ring
18,64X3,53 mm
Pressure max.
345 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread of bolt metric
M8
Package size
1
Barcode
185713
Gross weight
0,20 Kg
Net weight
0,20 Kg
Country of origin
DEU
Intrastat code
73079100
Closed flange 1/2" SAE3000
