Solenoid Valve 152/m NO HSVP16-NO-H00-00-PN-B-00

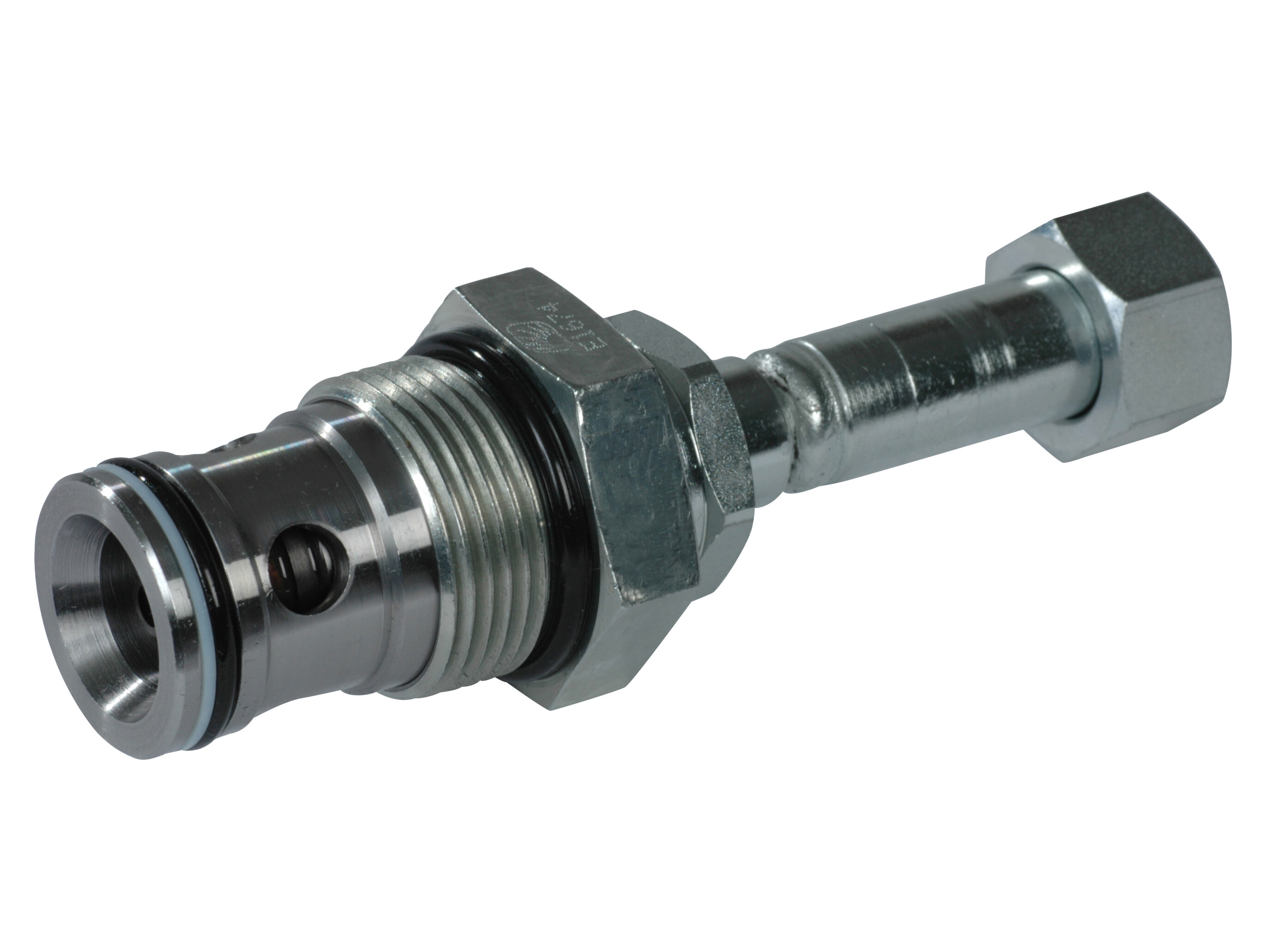

This is a normally open, pilot-operated, poppet-type 16-size solenoid valve. When de-energized, the HSVP16-NO severely restricts flow from port 1 to port 2, while allowing flow from port 2 to 1. When energized, the valve’s poppet is shifted to block flow from port 2 to port 1 and allow reverse flow between port 1 to port 2 at a high pressure drop. This valve comes standard with a push pin type manual override.
Applications:
This valve is designed for use for uni-directional blocking, load holding, clamping or gripping applications in hydraulic circuits where low internal leakage is required.
Varenummer:
83033327
Pakkestr.:
1 pcs
Min. bestillingsmengde er:
1 pcs
Aktivering
Solenoid
Antall veier/posisjoner
2/2
Filter innebygd
No
Flow Nominel LMin
152 lpm
Forureningsgrad maks.
20/18/14 - ISO 4406
Hulrom
SDC16-2
Magnetspoletype
H16
Manuell betjening
No
Merke navn
Danfoss
Modell kode
HSVP16-NO-H00-00-PN-B-00
Oljeviskositet anbefales
12 - 54 cSt
Pakningsmateriale
NBR
Temperatur maks.
+100 °C
Temperatur min.
-40 °C
Tilspenning moment
150 - 165 Nm
Trykk maks.
350 bar
Ventiltype
NO - Normally open
Pakke str.
1 pcs
Stregkode
374781
Brutto vægt
0,37 Kg
Netto vægt
0,37 Kg
Oprindelsesland
ITA
Intrastat varekode
85051990
This is a normally open, pilot-operated, poppet-type 16-size solenoid valve. When de-energized, the HSVP16-NO severely restricts flow from port 1 to port 2, while allowing flow from port 2 to 1. When energized, the valve’s poppet is shifted to block flow from port 2 to port 1 and allow reverse flow between port 1 to port 2 at a high pressure drop. This valve comes standard with a push pin type manual override.
Applications:
This valve is designed for use for uni-directional blocking, load holding, clamping or gripping applications in hydraulic circuits where low internal leakage is required.
