Ferrule 3/8" for R3
Swaged ferrule for crimping onto a hydraulic hose to retain the hose on a hose fitting in a hose assembly. The 3/8 in hose size and the ferrule dimensions are key for matching the ferrule to the selected hose and crimp specification.

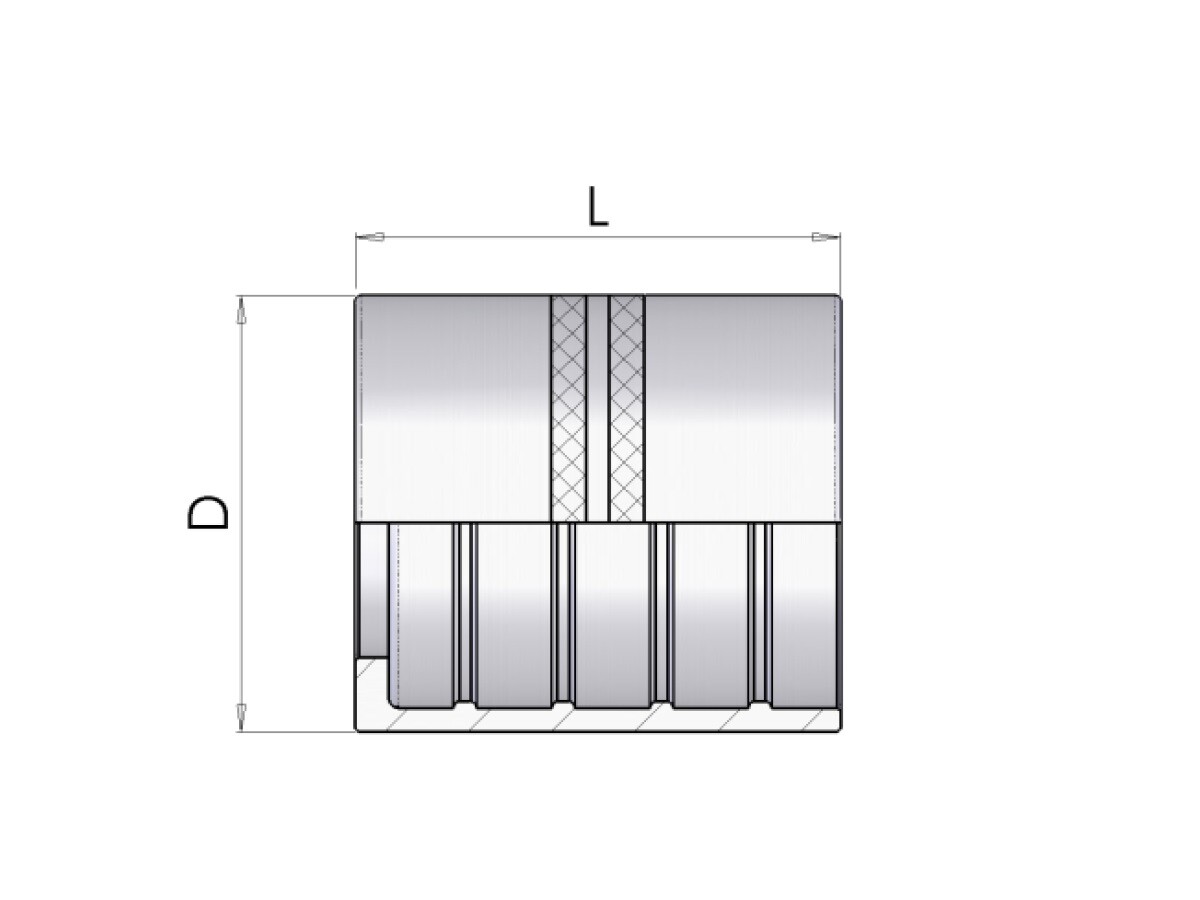

Designed for 1–2 layer hoses and specified without skive. Outer diameter is 24 mm with length 31 mm.
Typical Applications
- Crimped hydraulic hose assemblies using 3/8 in hose size
- Hydraulic hose assembly production and repair
Partnumber:
4007-06
Package size:
300 pcs
Min. order quantity is:
1 pcs
Brand Name
I.M.M Hydraulics
D
24 mm
Diameter outer
24 mm
Hose size
3/8 "
L
31 mm
Length
31 mm
Model code
0003-06
Skive
No
Package size
300 pcs
Barcode
141797
Gross weight
0,02 Kg
Net weight
0,02 Kg
Country of origin
ITA
Intrastat code
73269098
Swaged ferrule for crimping onto a hydraulic hose to retain the hose on a hose fitting in a hose assembly. The 3/8 in hose size and the ferrule dimensions are key for matching the ferrule to the selected hose and crimp specification.
Designed for 1–2 layer hoses and specified without skive. Outer diameter is 24 mm with length 31 mm.
Typical Applications
- Crimped hydraulic hose assemblies using 3/8 in hose size
- Hydraulic hose assembly production and repair
