Butt weld flange 1.1/2" SAE3000
Butt weld flange 1.1/2" SAE3000
Partnumber:
0593-24
Package size:
1 st
Min. order quantity is:
1 st

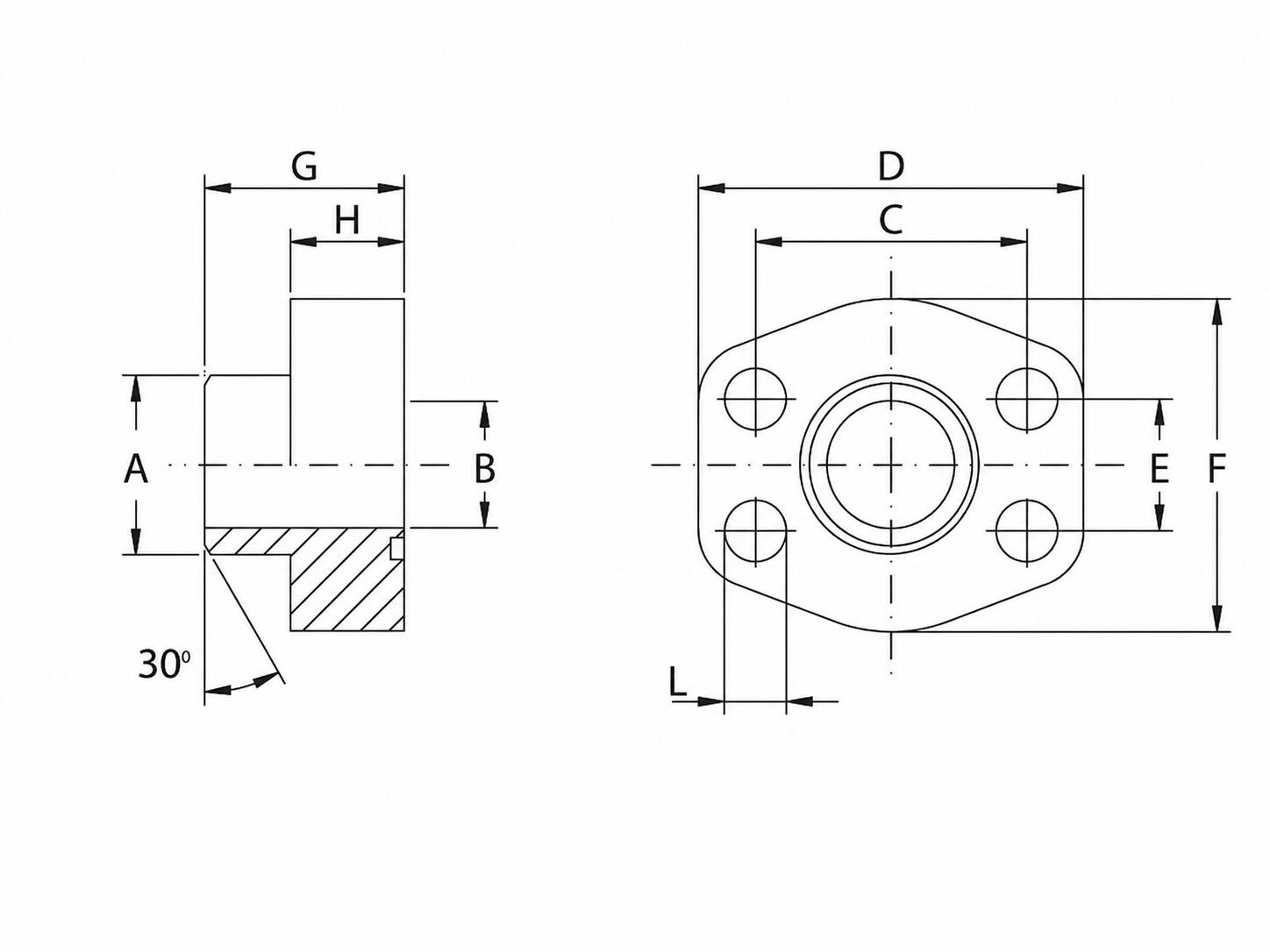

A
48,6 mm
Angle
0 °
B
38 mm
Bolt dimension
M12x45 mm
C
69,9 mm
D
93 mm
Diameter flange
60.3 mm
E
35,7 mm
F
78 mm
Flange
1.1/2 "
Flange SAE/DIN
3000 PSI
G
44 mm
H
25 mm
L
13,5 mm
Material
Steel
O-ring
47,22X3,53 mm
Pressure max.
207 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
1 st
Barcode
198685
Gross weight
1,05 Kg
Net weight
1,05 Kg
Country of origin
DEU
Intrastat code
73079100
Butt weld flange 1.1/2" SAE3000
