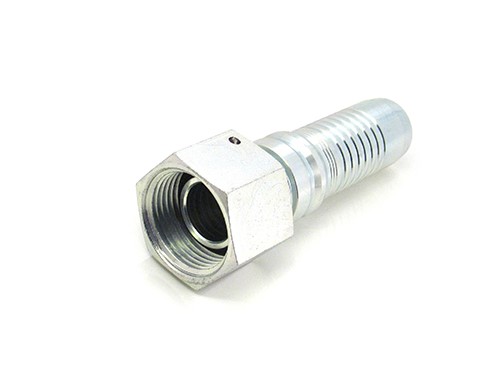

Two-piece insert BSP union nut 0° Interlock

Insert 3/4-SH, 3/4 BSP female DK20034RSH 2-piece

Insert 1 -sh, 1 BSP femal DK25100RSH 2-piece

Insert 1.1/4-SH,1.1/4 BSP FEMA DK32114RSH 2-piece

Insert 1.1/2, 1.1/2 BSP female DK40112RSH 2-piece

Insert 2 , 2 BSP female DK50200RSH 2-piece

SELECT VARIANT

Partnumber	Description	Thread	Hose size	Model code
SH271-12T	Insert 3/4-SH, 3/4 BSP female DK20034RSH 2-piece	G 3/4 BSP	3/4 "	0050H-12-12
SH271-16T	Insert 1 -sh, 1 BSP femal DK25100RSH 2-piece	G 1 BSP	1 "	0050H-16-16
SH271-20T	Insert 1.1/4-SH,1.1/4 BSP FEMA DK32114RSH 2-piece	G 1.1/4 BSP	1.1/4 "	0050H-20-20
SH271-24T	Insert 1.1/2, 1.1/2 BSP female DK40112RSH 2-piece	G 1.1/2 BSP	1.1/2 "	0050H-24-24
SH271-32T	Insert 2 , 2 BSP female DK50200RSH 2-piece	G 2 BSP	2 "	0050H-32-32

Angle

Brand Name

I.M.M Hydraulics

Hose coupling type

For separate ferrule

Material

Steel

Surface treatment

Electro-galvanized / White chromatized
