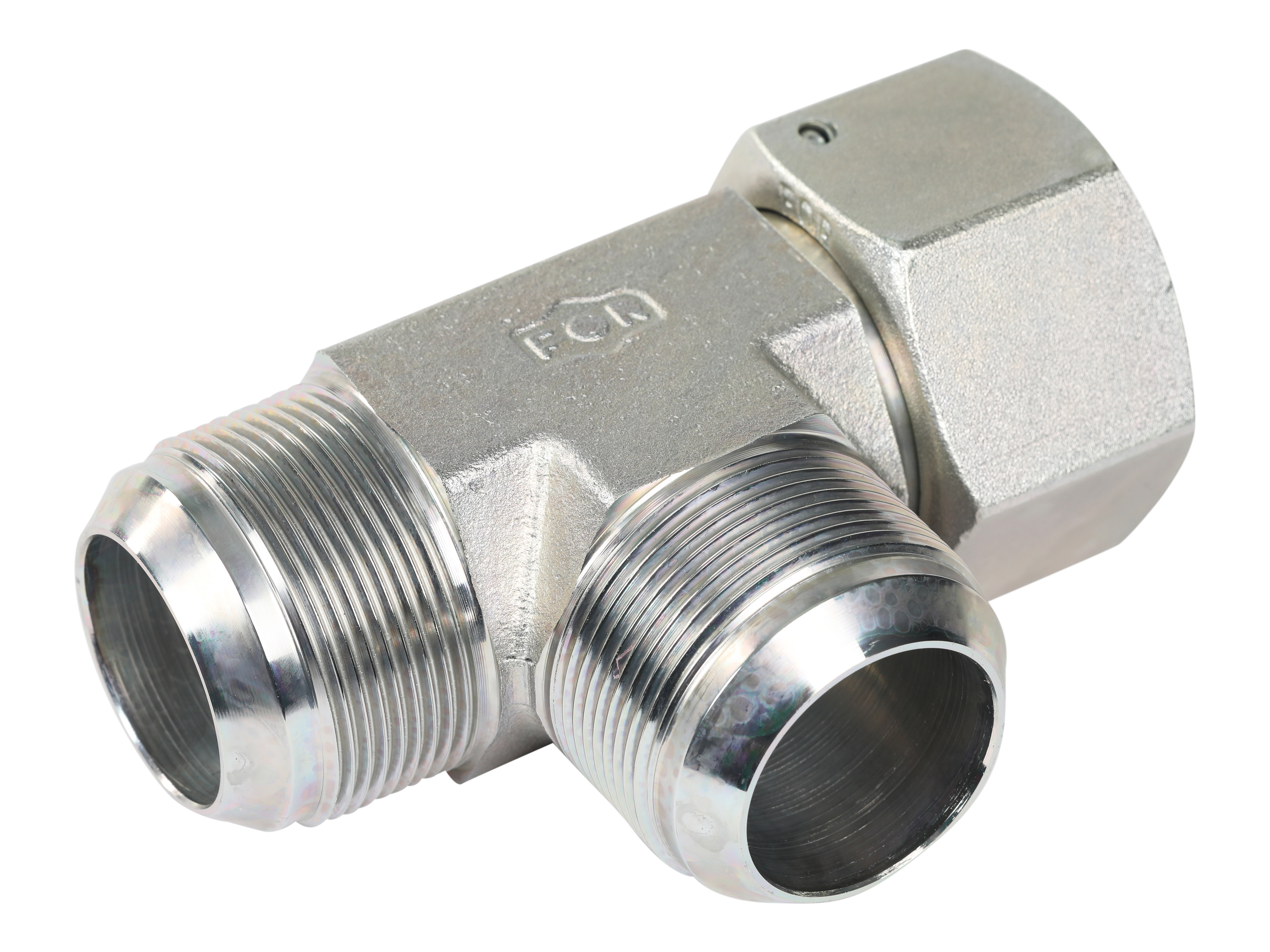

L-adapter JIC male x JIC male x JIC union nut

SELECT VARIANT

Partnumber	Description	Diameter pipe	Thread inner	Thread outer	Pressure max.
S680-04	Adapter L, Utv-JIC, Inv-JIC	6 mm	7/16-20 JIC	7/16-20 JIC	450 bar
S680-05	Adapter L, Utv-JIC, Inv-JIC	8 mm	1/2-20 JIC	1/2-20 JIC	416 bar
S680-05-FOR	S680-08TG barrel Tee with nut	8 mm	1/2-20 JIC	1/2-20 JIC	416 bar
S680-06	Adapter L, Utv-JIC, Inv-JIC	10 mm	9/16-18 JIC	9/16-18 JIC	350 bar
S680-06-FOR	S680-10TG barrel Tee with nut	10 mm	9/16-18 JIC	9/16-18 JIC	350 bar
S680-08	L-liitin sk-uk-uk	12 mm	3/4-16 JIC	3/4-16 JIC
S680-08-FOR	S680-12TG barrel Tee with nut	12 mm	3/4-16 JIC	3/4-16 JIC	350 bar
S680-10-FOR	S680-16TG barrel Tee with nut	16 mm	7/8-14 JIC	7/8-14 JIC	350 bar
S680-12-FOR	S680-20TG barrel Tee with nut	20 mm	1.1/16-12 JIC	1.1/16-12 JIC	320 bar
S680-16	L-liitin sk-uk-uk	25 mm	1.5/16-12 JIC	1.5/16-12 JIC
S680-16-FOR	S680-25TG barrel Tee with nut	25 mm	1.5/16-12 JIC	1.5/16-12 JIC	290 bar
S680-20	L-liitin sk-uk-uk	32 mm	1.5/8-12 JIC	1.5/8-12 JIC
S680-20-12-20-FOR	Swivel nut run tee male JIC - female JIC	30-32/18-20 mm			240 bar
S680-20-FOR	S680-30TG barrel Tee with nut	32 mm	1.5/8-12 JIC	1.5/8-12 JIC	250 bar
S680-24	S680-38TG barrel Tee with nut	38 mm	1.7/8-12 JIC	1.7/8-12 JIC	250 bar
S680-24-FOR	S680-38TG barrel Tee with nut	38 mm	1.7/8-12 JIC	1.7/8-12 JIC	250 bar
S680-32-FOR	Swivel nut run tee male JIC - female JIC		2.1/2-12 JIC

Material

Steel
