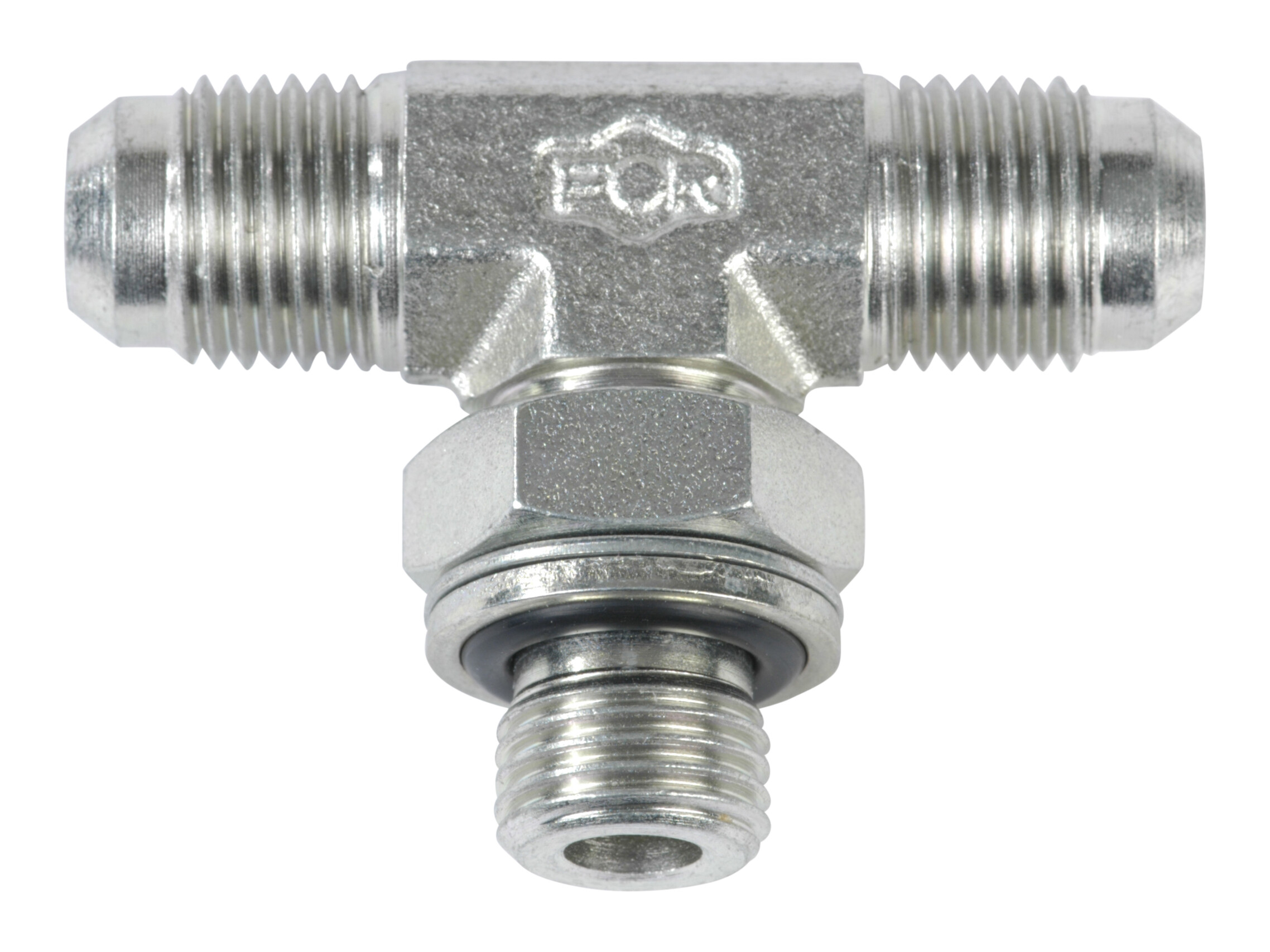

S610-10-13G Tee BSP
Partnumber:
S610-04-06
Package size:
10 kpl
Min. order quantity is:
1 kpl
B
27 mm
B1
27 mm
Brand Name
FOR
C
31,5 mm
CH
19 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Dimension J1
9/16-18 JIC
F
G 1/4 BSP
J
9/16-18 JIC
J1
9/16-18 JIC
Material
Steel
Model code
A111034/1013
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
10 mm
T1
10 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
9/16-18 JIC
Thread outer
G 1/4 BSP
Package size
10 kpl
Barcode
407408
Gross weight
0,07 Kg
Net weight
0,07 Kg
Country of origin
ITA
Intrastat code
73071110
