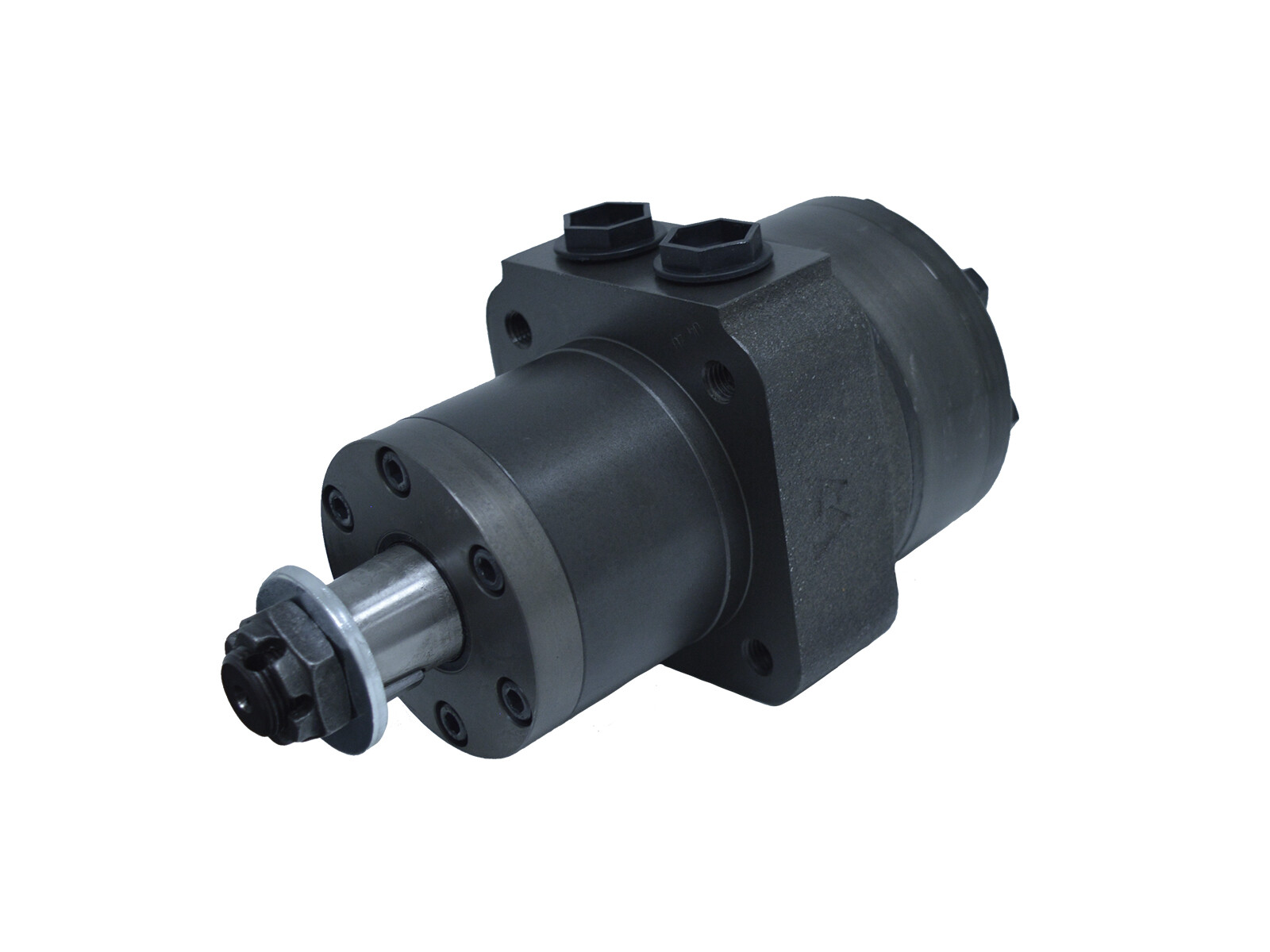

Hydraulimoottori 159,7 cm³/r
35mm 1:10 Kartio
Osanumero:
MRW160KB
Pakkauskoko:
1 pcs
Pienin tilausmäärä on:
1 pcs
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
11.5 kW
Continuous rotation max.
375 rpm
Displacement
159.6 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
103 mm
Intermittent Effect Max.
14 kW
Intermittent Rotation speed Max.
470 rpm
Intermittent Torque Max.
430 Nm
L
99,8
L1
27,8
Model code
MRW160KB
Mounting flange
Wheel mount
Oil viscocity recommended
20 - 75 cSt
P
G 1/2 BSP
Port position
Side
Pressure continous max.
175 bar
Pressure drop continuous max.
175 bar
Pressure intermittent max.
200 bar
Recess
80,0 mm
Rotational speed min.
10 rpm

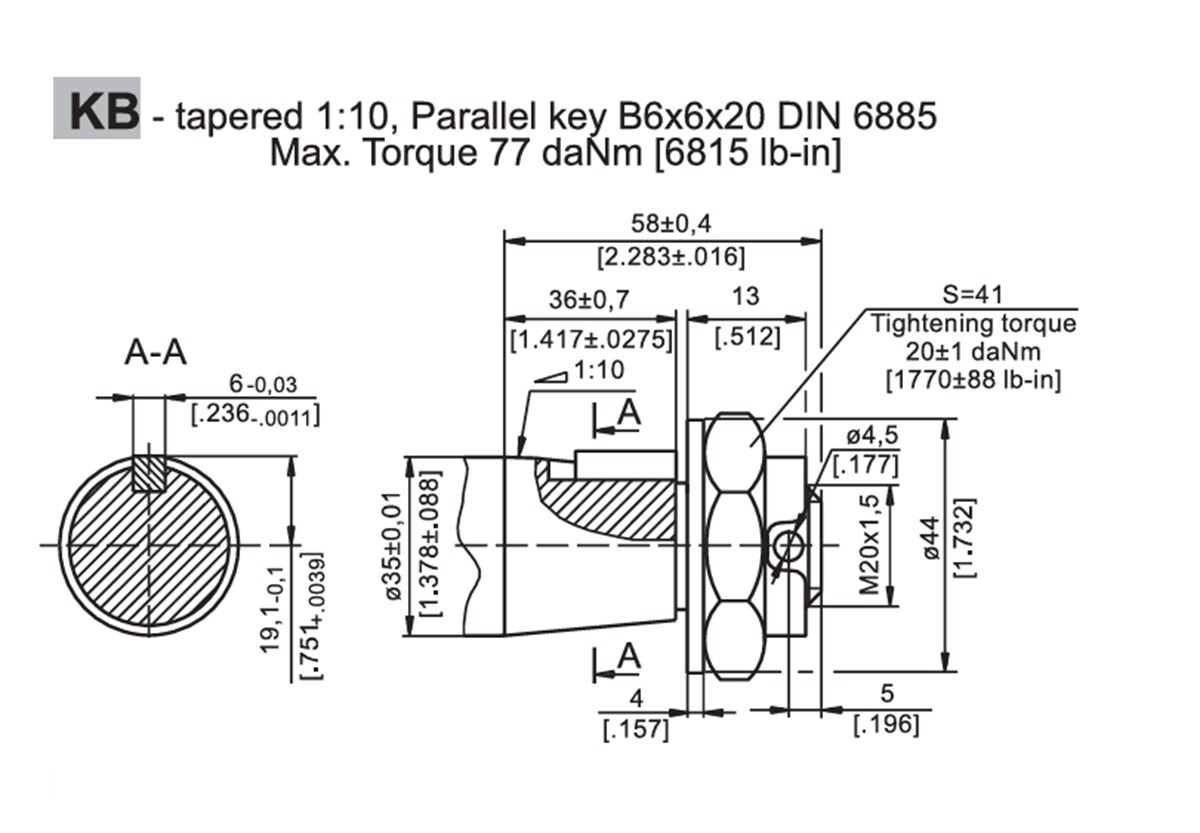

Shaft cone
1:10
Shaft diameter
35 mm
Shaft keyway
6,0 mm
Shaft torque rating
770 Nm
Shaft type
Tapered
T
G 1/4 BSP
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
390 Nm
Working ports
G 1/2 BSP
Package size
1 pcs
Barcode
401578
Gross weight
7,50 Kg
Net weight
7,50 Kg
Country of origin
bgr
35mm 1:10 Kartio
