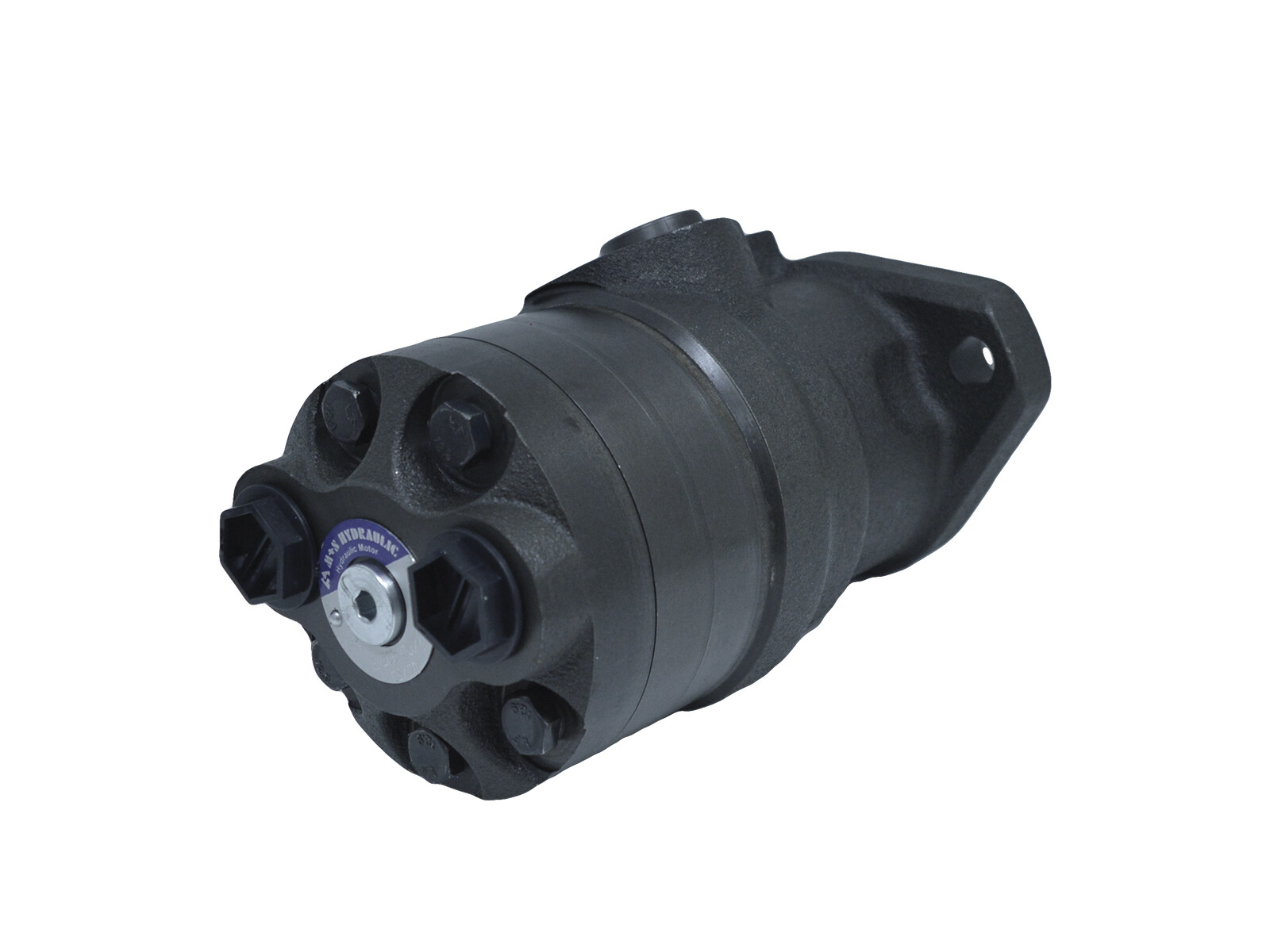

MRE 100 CD
Partnumber:
MRE100CD
Package size:
1 pcs
Min. order quantity is:
1 pcs
Brand Name
Hydraspecma
C
4xM8
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
13 kW
Continuous rotation max.
600 rpm
Displacement
99.8 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
106.4 mm
Intermittent Effect Max.
15 kW
Intermittent Rotation speed Max.
750 rpm
Intermittent Torque Max.
280 Nm
L
165.5 mm
L1
17.4 mm
Mounting flange
SAE-A2
Number of mounting holes
2
Oil viscocity recommended
20 - 75 cSt
P
G 1/2 BSP
Port position
Rear
Pressure continous max.
175 bar
Pressure drop continuous max.
175 bar
Pressure intermittent max.
200 bar
Recess
82,5 mm
Rotational speed min.
10 rpm
Shaft diameter
25 mm
Shaft keyway
8,0 mm
Shaft torque rating
340 Nm
Shaft type
Cylindrical
T
G 1/4 BSP
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
240 Nm
Working ports
G 1/2 BSP
Package size
1 pcs
Barcode
401534
Gross weight
7,20 Kg
Net weight
7,20 Kg
Country of origin
BG
