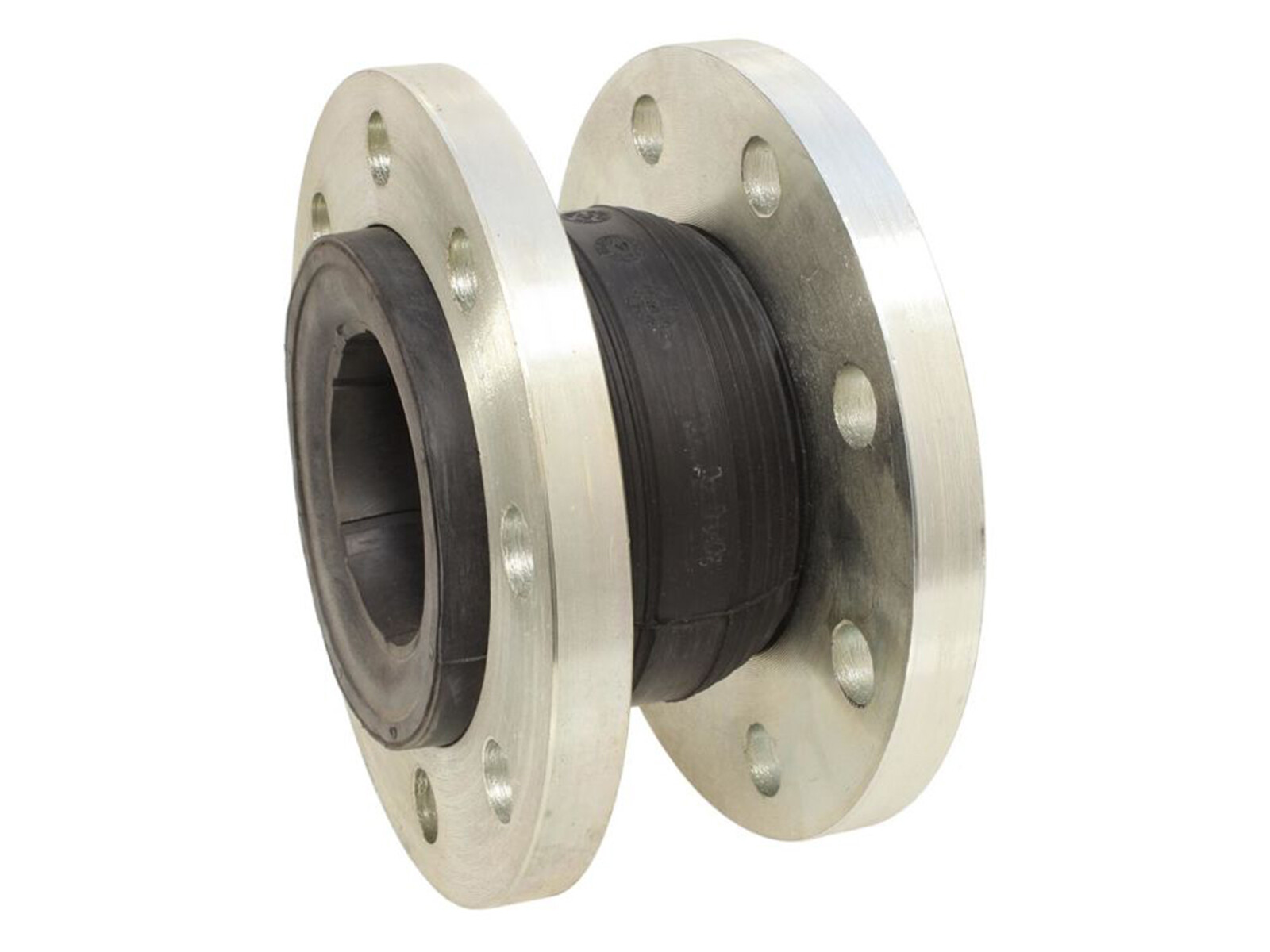

Rubber compansator NBR PN10/16
Rubber compensators, WNKT (Yellow Nitrile rubber)
Absorption of vibration and expansion in different directions.
Flanges of electro-galvanized steel drilled according to PN 10/PN16 /16. Material in the rubber bellows NBR.
We recommend compensator with yellow marking for water,
salt solutions, alkalis, mineral oils, vegetable oils, oily, air,
butane and propane gas, acetylene, weak and dilute acids (but not
nitric acid).
Artikelnummer:
KP520014
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Area of use
Hydraulic oil, Water
Brand Name
Hydraspecma
DN
250 mm
Diameter Bolt hole
27 mm
Diameter flange
405 mm
Holes circle
355 mm
Material
Carbon steel, NBR
Number of bolt holes
12
Pressure max.
16 bar
Sealing material
NBR
Standard EN
EN 1092
Surface treatment
Electro-galvanized
Temperature max.
+80 °C
Temperature min.
-10 °C
Vacuum max.
-0.7 bar
Förpackningsstorlek
1 pcs
Streckkod
477244
Bruttovikt
Kg
Nettovikt
20,00 Kg
Ursprungsland
deu
Intrastat artikelkod
40092200
Rubber compensators, WNKT (Yellow Nitrile rubber)
Absorption of vibration and expansion in different directions.
Flanges of electro-galvanized steel drilled according to PN 10/PN16 /16. Material in the rubber bellows NBR.
We recommend compensator with yellow marking for water,
salt solutions, alkalis, mineral oils, vegetable oils, oily, air,
butane and propane gas, acetylene, weak and dilute acids (but not
nitric acid).
