L-liitin sk-uk-uk
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
HS680-24
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
PH Industrie-Hydraulik

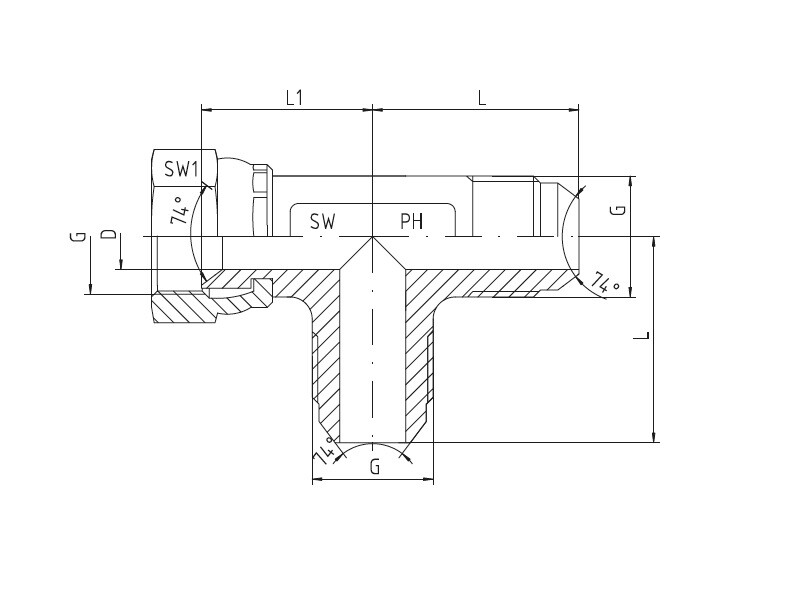

D
33 mm
Diameter pipe
35-38 mm
G
1.7/8-12 JIC
L
59.9 mm
L1
47.2 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
1252516-24-24-24
Pressure max.
170 bar
SW
50 mm
SW1
55 mm
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread inner
1.7/8-12 JIC
Thread outer
1.7/8-12 JIC
Package size
1 kpl
Barcode
398472
Gross weight
Kg
Net weight
Kg
Country of origin
KR
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
