JIC male - BSP male adapter ED
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
HS230-08
Package size:
1 kpl
Min. order quantity is:
1 kpl
Angle
0 °
Brand Name
PH Industrie-Hydraulik

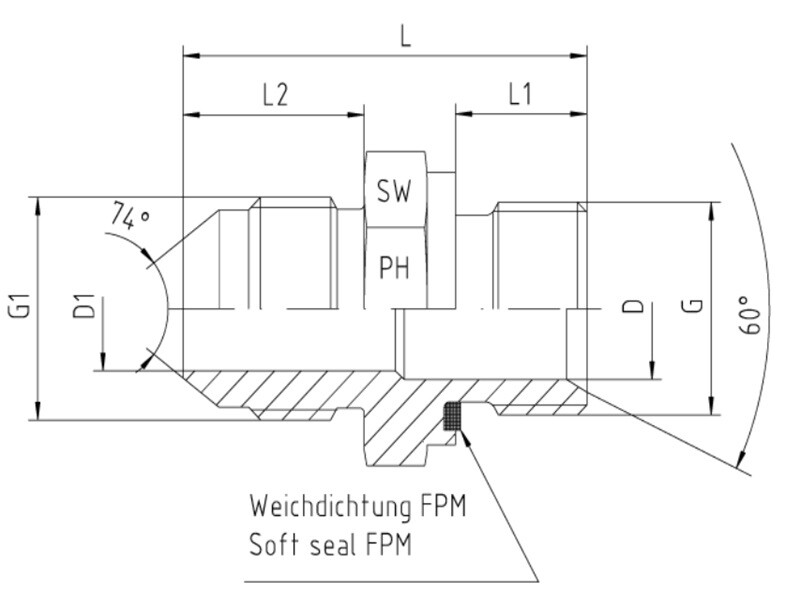

D
9,5 mm
D1
9,5 mm
Diameter pipe
12 mm
G
G 1/2 BSP
G1
3/4-16 JIC
L
40,5 mm
L1
14 mm
L2
17 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
1052510-08-08
Pressure max.
350 bar
SW
27 mm
Sealing material
FKM/FPM (Viton®)
Temperature max.
+200 °C
Temperature min.
-20 °C
Thread
G 1/2 BSP
Thread outer
3/4-16 JIC
Thread outer
G 1/2 BSP
Package size
1 kpl
Barcode
428402
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
