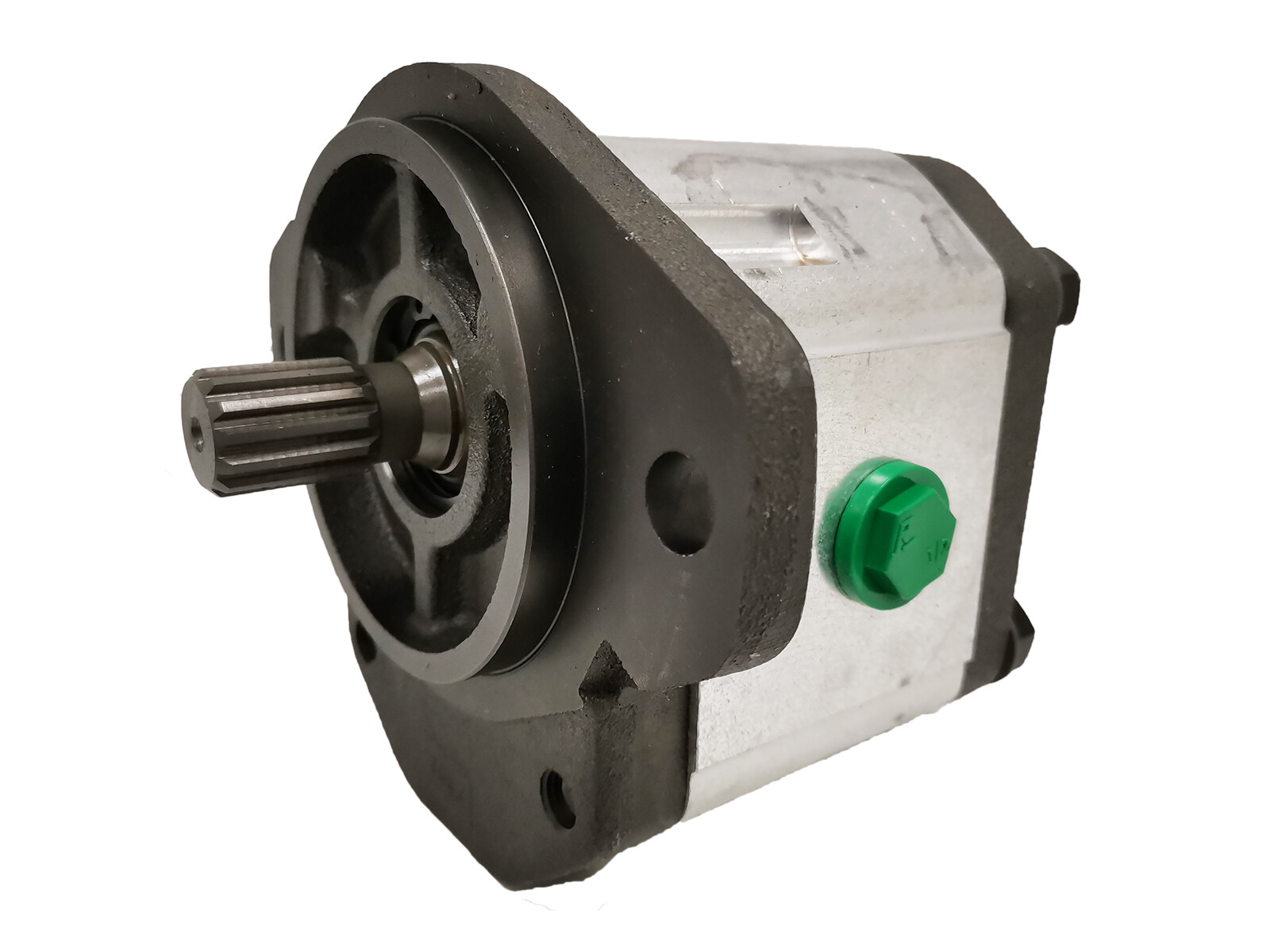

Hammaspyöräpumppu 56cm³/r
13 hammasta,SAE-B,kierteet
Partnumber:
1PLA84IG09R
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Hydraspecma
Contamination level max.
-/19/16 - ISO 4406
Continuous rotation max.
2200 rpm
Displacement
56 cm3
Inlet
G 1 BSP
Material
Aluminium
Mounting flange
SAE-B2
Number of mounting holes
2
Number of outer grooves
13
Oil viscocity recommended
20 - 80 cSt
Outlet
G 3/4 BSP
Pressure continous max.
175 bar
Pressure intermittent max.
200 bar
Pressure peak max.
200 bar
Pump group
3
Recess
101,6 mm
Rotation direction
Left (CCW)
Rotational speed max.
2600 rpm
Shaft diameter
21,8 mm
Shaft spline
13T 16/32 SAE-B
Shaft type
Spline
Package size
1 kpl
Barcode
386661
Gross weight
9,748 Kg
Net weight
9,748 Kg
Country of origin
ES
13 hammasta,SAE-B,kierteet
