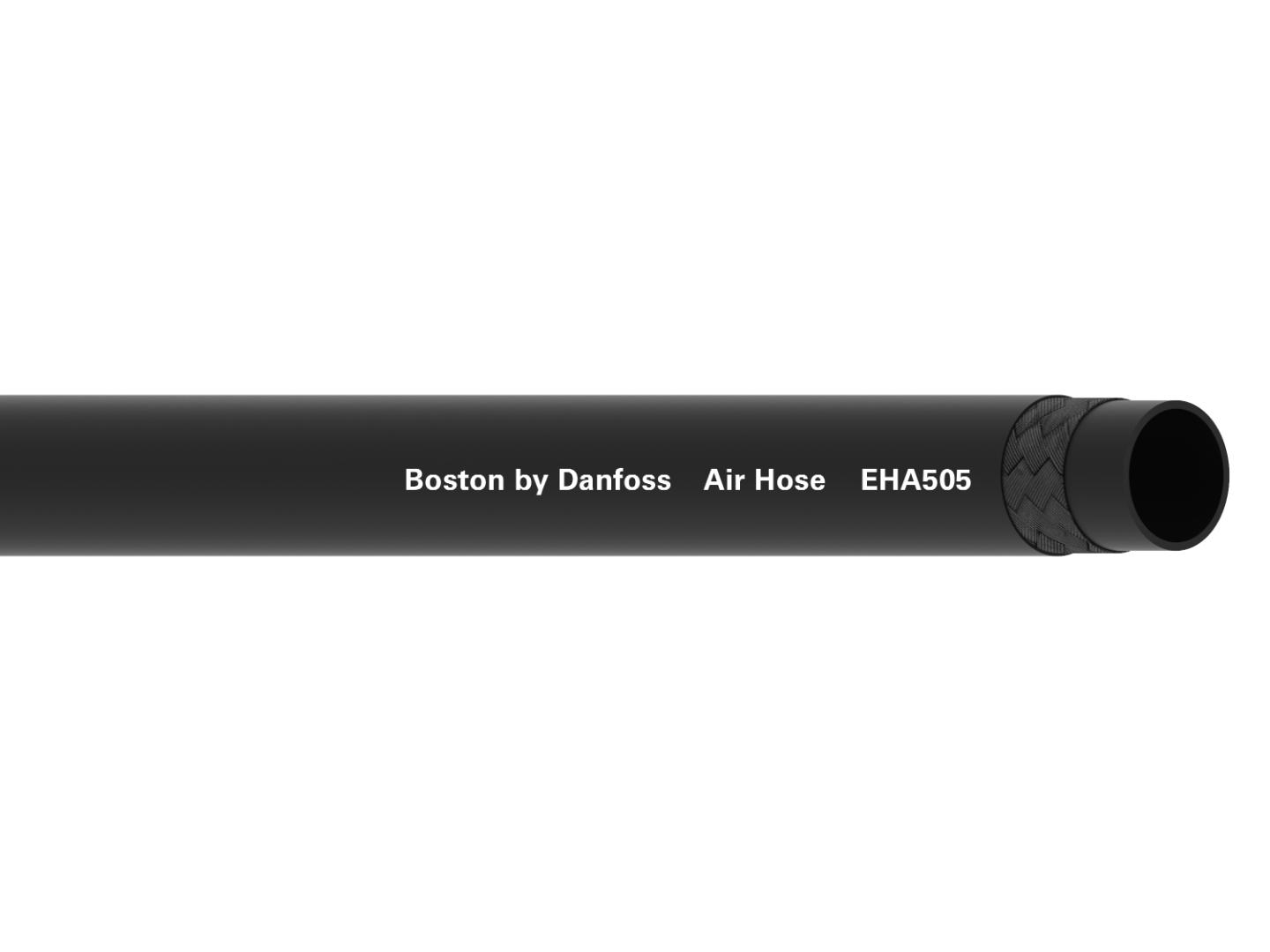

Universalslang Luft/Vatten 19/29 20 Bar SBR

Universalslang Luft/Vatten 19/29 20 Bar SBR

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter inner Diameter outer Pressure max. Temperature max.
EHA505-04 Universalslang Luft/Vatten 6/13 20 Bar SBR 6 mm 13 mm 20 bar +70 °C
EHA505-05 Universalslang Luft/Vatten 8/15 20 Bar SBR 8 mm 15 mm 20 bar +70 °C
EHA505-06 Universalslang Luft/Vatten 10/18 20 Bar SBR 20 bar +70 °C
EHA505-08 Universalslang Luft/Vatten 13/22 20 Bar SBR 20 bar +70 °C
EHA505-10 Universalslang Luft/Vatten 16/25 20 Bar SBR 16 mm 25 mm 20 bar +70 °C
EHA505-12 Universalslang Luft/Vatten 19/29 20 Bar SBR 19 mm 29 mm 20 bar +70 °C
EHA505-16 Universalslang Luft/Vatten 25/37 20 Bar SBR 25 mm 35 mm 20 bar +70 °C
Brand Name
Danfoss
Color
Black
Cover
SBR based
Length
100
Pressure burst min.
64
Pressure max.
20
Reinforcement
High-tensile synthetic textile
Temperature max.
+70
Temperature min.
-25
Tube
SBR
